Tc PLMXML Export

This Snap initiate an export for product data structure of a defined object in PLMXML format.

Supported Accounts

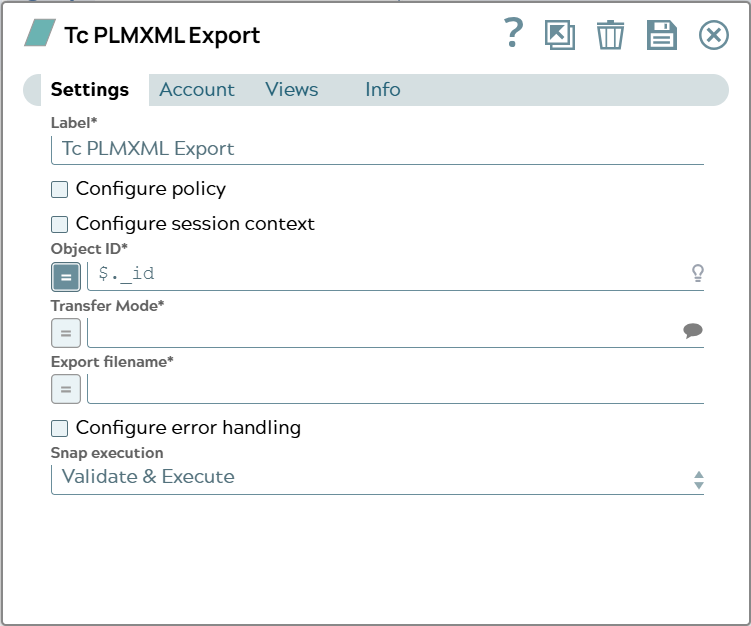

Settings tab of snap to show example values.

Prerequisites

  • A valid Teamcenter account with the required permissions.

Snap views

Type Description Examples of upstream and downstream Snaps
Input

Optional.This Snap has at the most one document input view.

The required input of the snap is the Object ID PLMXML export shall happen for from Teamcenter.
Output

This Snap has exactly one binary output view.

The output of the snap is binary data of export.
Learn more about Error handling.

Snap settings

Note: Learn about the common controls in the Snap settings dialog.
Field/Field set Description
Label

String		 Specify a unique name for the Snap. Modify this to be more appropriate, especially if there are more than one of the same Snap in the pipeline.

Default value: Tc PLMXML Export
Configure policy

Checkbox

Select this checkbox to run the Snap with a specific named Teamcenter policy. A policy determines the set of object properties that Teamcenter returns.

Learn more: Configure policy.

Default status: Deselected
Configure session context

Checkbox

Select this checkbox to run the Snap with a group, role, or project other than the one configured in the account.

Learn more: Configure session context.

Default status: Deselected
Object ID*

String/Expression

Select the UID (unique identifier) or the Teamcenter adapter ID of the object.

Default value: $._id

Example: $._id
Transfer Mode*

String/Expression/ Suggestion

Specify Transfer Mode for PLMXML Export. Transfer Modes are defined in Teamcenter and rule what and how the export shall happen. Suggestion will present the list of Transfer Modes from the connected Teamcenter.

Default value: N/A

Example: tcm_export
Export filename*

String/Expression

While export Teamcenter needs to write an intermediate file to store PLMXML data which will be exported then. This file's name is defined here.

Default value: N/A

Example: exportPLM.plmxml
Configure error handling

Checkbox

Select this checkbox to define how the Snap behaves when Teamcenter returns an error. Use these settings for analysis and debugging.

Learn more: Configure error handling.

Default status: Deselected
Snap execution

Dropdown list
Choose one of the three modes in which the Snap executes. Available options are:
  • Validate & Execute. Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime.
  • Execute only. Performs full execution of the Snap during pipeline execution without generating preview data.
  • Disabled. Disables the Snap and all Snaps that are downstream from it.
