Tc BOM Structure Get For TraceLinks: Get BOM objects for Tracelinks

This example shows the output document that returns the BOM objects to be used as trace link endpoints.

For a given BOM the UID of BOM Head object is given as “Object ID” to Snap.

UIDs in Teamcenter are as the name says UNIQUE. The UIDs in documented examples only exist in our Teamcenter system as expected for our example. Same is valid for Adapter ID "_id" since its base is the UID.

Snap configuration

Snap output

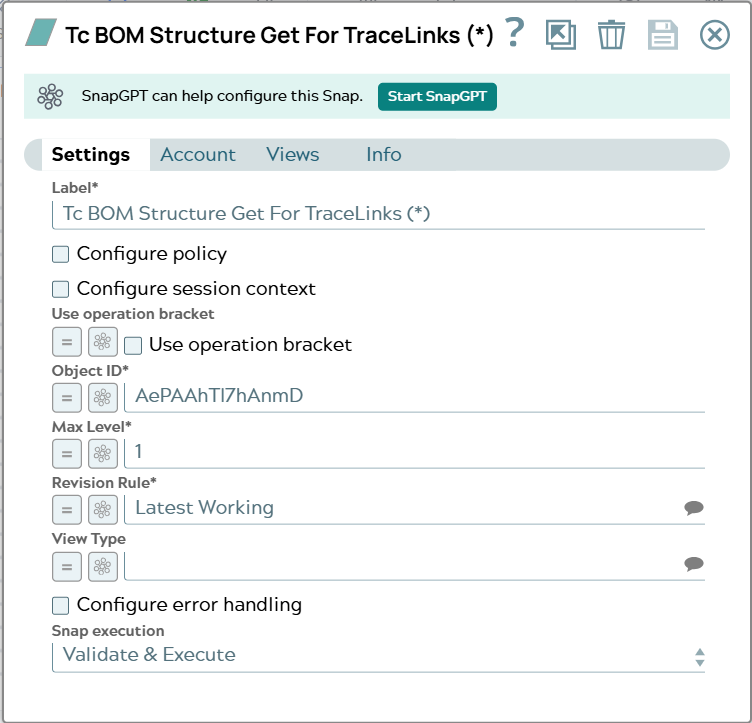

Settings for Tc BOM Structure Get For Tracelinks Snap. Object ID field is field with UID value. Revision Rule field is filled with 'Latest Working'.

[
  {
    "productContext": {
      "uid": "SR::N::Awb0ProductContextInfo..P:AePAAhTl7hAnmD,RR:QkKAAAA47hAnmD,PA:1,SS:1,EXP:0,,,AWBCB",
      "className": "Awb0ProductContextInfo",
      "type": "Awb0ProductContextInfo"
    },
    "parentOccurrence": {
      "uid": "SR::N::Awb0PartElement..BOMLine..9.wkLN4pIycauOlA.A2LAAhak7hAnmD..QmMAAhTl7hAnmD...,,AWBCB",
      "className": "Awb0PartElement",
      "type": "Awb0PartElement"
    },
    "structure": {
      "displayName": "SL BOM Test 1",
      "occurrenceId": "SR::N::Awb0PartElement..BOMLine..9.wkLN4pIycauOlA.A2LAAhak7hAnmD..QmMAAhTl7hAnmD...,,AWBCB",
      "stableId": "AONAAhTl7hAnmD",
      "underlyingObjectType": "Part Revision",
      "underlyingObjectUid": "AePAAhTl7hAnmD",
      "children": [
        {
          "displayName": "SL BOM Test 2 x1",
          "occurrenceId": "SR::N::Awb0PartElement..BOMLine..9.1kcIi8rOcaOaaA.A2LAAhak7hAnmD..QmMAAhTl7hAnmD.Group:/Thid_QuJAAhTl7hAnmD..,,AWBCB",
          "stableId": "AONAAhTl7hAnmD:QuJAAhTl7hAnmD",
          "underlyingObjectType": "Part Revision",
          "underlyingObjectUid": "AuHAAhTl7hAnmD"
        },
        {
          "displayName": "SL BOM Test 3 x2",
          "occurrenceId": "SR::N::Awb0PartElement..BOMLine..9.OI7U5hn8ca_ezD.A2LAAhak7hAnmD..QmMAAhTl7hAnmD.Group:/Thid_QyEAAhTl7hAnmD..,,AWBCB",
          "stableId": "AONAAhTl7hAnmD:QyEAAhTl7hAnmD",
          "underlyingObjectType": "Part Revision",
          "underlyingObjectUid": "A2LAAhTl7hAnmD"
        },
        {
          "displayName": "SL BOM Test 4 x3",
          "occurrenceId": "SR::N::Awb0PartElement..BOMLine..9.1TUryMxEca_2QB.A2LAAhak7hAnmD..QmMAAhTl7hAnmD.Group:/Thid_QyLAAhTl7hAnmD..,,AWBCB",
          "stableId": "AONAAhTl7hAnmD:QyLAAhTl7hAnmD",
          "underlyingObjectType": "Part Revision",
          "underlyingObjectUid": "A_PAAhTl7hAnmD"
        },
        {
          "displayName": "SL BOM Test 5 x4",
          "occurrenceId": "SR::N::Awb0PartElement..BOMLine..9.7306kZcPcauR0B.A2LAAhak7hAnmD..QmMAAhTl7hAnmD.Group:/Thid_Q2CAAhTl7hAnmD..,,AWBCB",
          "stableId": "AONAAhTl7hAnmD:Q2CAAhTl7hAnmD",
          "underlyingObjectType": "Part Revision",
          "underlyingObjectUid": "QKDAAhTl7hAnmD"
        }
      ]
    }
  }
]
