Tc BOM Structure Get For TraceLinks

This Snap get occurrence information of an existing BOM structure in Teamcenter. Especially IDs of objects relevant to create Tracelink relations between BOM occurrences with Snap Tc BOM Structure Create TraceLink (*) next. Or to expand BOM tracelink relations with Snap Tc BOM Structure Get TraceLinks (*).

Supported Accounts

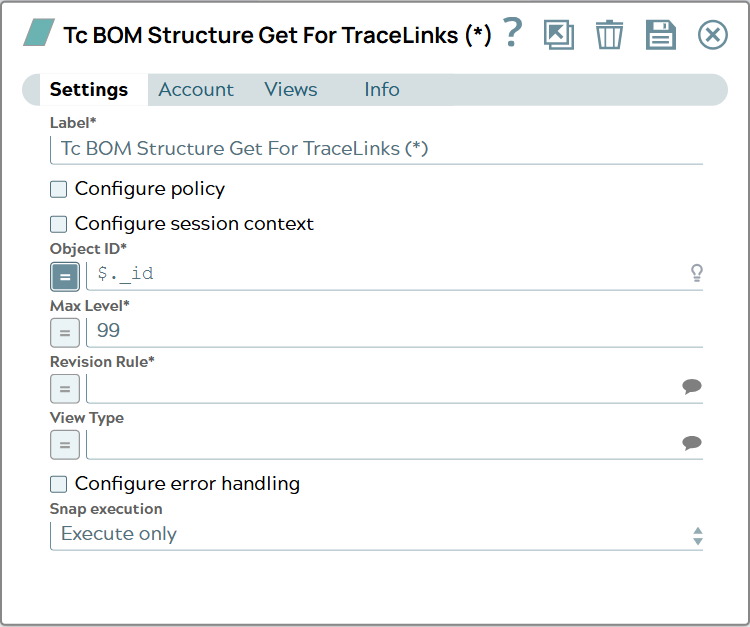

Settings tab of snap to show example values.

Prerequisites

  • A valid Teamcenter account with the required permissions.

Limitations

(*) signs the snap as project specific solution.

Snap views

Type Description Examples of upstream and downstream Snaps
Input

Optional.This Snap has at the most one document input view.

The required input of the snap is the Object ID tracelinks shall be expanded for in Teamcenter.
Output

This Snap has exactly one document output view.

The output of the snap contains information about different objects:

  • productContext
  • parentOccurrence
  • structure object including children JSON list object

    Both structure object and children list objects include following IDs:

    • occurrenceId
    • stableId
    • underlyingObjectUid
Learn more about Error handling.

Examples

Tc BOM Structure Get For TraceLinks: Get BOM objects for Tracelinks

Snap settings

Note: Learn about the common controls in the Snap settings dialog.
Field/Field set Description
Label

String		 Specify a unique name for the Snap. Modify this to be more appropriate, especially if there are more than one of the same Snap in the pipeline.

Default value: Tc BOM Structure Get For TraceLinks
Configure policy

Checkbox

Select this checkbox to run the Snap with a specific named Teamcenter policy. A policy determines the set of object properties that Teamcenter returns.

Learn more: Configure policy.

Default status: Deselected
Configure session context

Checkbox

Select this checkbox to run the Snap with a group, role, or project other than the one configured in the account.

Learn more: Configure session context.

Default status: Deselected
Object ID*

String/Expression

Select the UID (unique identifier) or the Teamcenter adapter ID of the object.

Default value: $._id

Example: $.UID
Max Level*

String/Expression

Configuration of the maximum expansion level.

Default value: 99

Example: 99
Revision Rule*

String/Expression/ Suggestion

Specify the revision rule for the structure expand operation.

Default value: N/A

Example: Any Status; Working
View Type

String/Expression/ Suggestion

Specify the view type for the structure expand operation.

Default value: N/A

Example: view
Configure error handling

Checkbox

Select this checkbox to define how the Snap behaves when Teamcenter returns an error. Use these settings for analysis and debugging.

Learn more: Configure error handling.

Default status: Deselected
Snap execution

Dropdown list
Choose one of the three modes in which the Snap executes. Available options are:
  • Validate & Execute. Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime.
  • Execute only. Performs full execution of the Snap during pipeline execution without generating preview data.
  • Disabled. Disables the Snap and all Snaps that are downstream from it.
