Open Table Iceberg - Execute

Overview

The Open Table Iceberg - Execute Snap executes an arbitrary Spark SQL statement against the Iceberg catalog. Use this Snap to run DDL statements (such as CREATE TABLE, ALTER TABLE, DROP TABLE), DML statements (such as INSERT INTO, MERGE INTO, DELETE), or any other Spark SQL supported by the Iceberg catalog.

When the SQL statement returns rows (for example, a SELECT), the Snap emits one document per row. For statements that do not return rows, the Snap emits a single status document. Execution errors are routed to the error view and do not halt pipeline execution for subsequent input documents.

CAUTION: Use this Snap to work with Iceberg tables in Parquet, AVRO, or ORC formats. Other data file formats are not supported.

The SQL statement field is expression-enabled, so you can reference fields from upstream documents using $field notation to build dynamic queries.



Known issues

  • Open Table Iceberg Snaps may abort with zero output and no actionable error when executed on a JRE 21 Snaplex; the same pipelines execute successfully on a JRE 11 Snaplex.

Prerequisites

Supported Accounts

Snap views

Type Description Examples of upstream and downstream Snaps
Input

This Snap has at most one document input view. When connected, each input document triggers one execution of the SQL statement. Field values from the input document can be referenced in the SQL expression using $field notation.

Output

For SELECT statements and other SQL that returns rows, the Snap emits one document per result row.

For DDL and DML that returns no rows, the Snap emits one status document per execution: {"status": "success", "message": "SQL statement executed successfully", "sqlStatement": "..."}.

Learn more about Error handling.

Snap settings

Note: Learn about the common controls in the Snap settings dialog.
Field/Field set Description

Label

String

Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline.

Default value: Open Table Iceberg - Execute

Example: Iceberg Create Orders Table

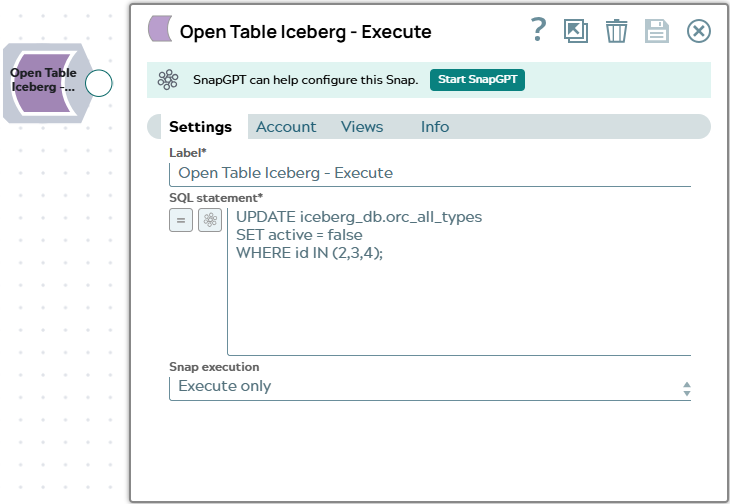

SQL Statement*

String/Expression

Specify the Spark SQL statement to execute against the Iceberg catalog. The field supports expressions, allowing you to reference upstream document fields using $field notation to build dynamic statements.

Supported statement types include SELECT, CREATE TABLE, INSERT INTO, ALTER TABLE, DROP TABLE, MERGE INTO, and other Spark SQL with Iceberg extensions.

Default value: None

Example:
CREATE TABLE IF NOT EXISTS db.orders (
  order_id BIGINT,
  customer_id BIGINT,
  order_date DATE,
  total DECIMAL(10,2)
) USING iceberg;
Important: Executing a DROP TABLE statement using this Snap removes the table entry from the Iceberg catalog successfully, but not the associated data and metadata files from the MinIO storage. As a workaround, use the DROP TABLE <iceberg_db.test_table> PURGE construct instead for a clean drop table operation.

Snap execution

Dropdown list
Choose one of the three modes in which the Snap executes. Available options are:
  • Validate & Execute: Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime.
  • Execute only: Performs full execution of the Snap during pipeline execution without generating preview data.
  • Disabled: Disables the Snap and all Snaps that are downstream from it.

Default value: Execute only

Example: Validate & Execute

Troubleshooting

Error Reason Resolution
SQL execution error The SQL statement contains a syntax error, references a table or column that does not exist, or the account does not have sufficient permissions. Review the SQL statement for syntax errors. Confirm that all referenced tables and columns exist. Verify that the account role has the required catalog permissions.
Stale schema after ALTER TABLE Subsequent Snaps in the pipeline use a cached version of the table schema that does not reflect the ALTER TABLE changes. The Snap automatically refreshes the Spark catalog cache for the altered table before execution. If the issue persists, add a separate Execute Snap to run REFRESH TABLE <table> after the ALTER TABLE statement.
