Syndigo Update
Overview
- Add new attribute
- Add attribute value
- Add attribute value with UOM
- Add a reference attribute in a specific context
- Add multiple attributes in multiple contexts
- Add single row to a nested attribute
- Add new relationship
- Add relationship in multiple contexts
- Delete attribute
- Delete UOM attribute
- Delete nested attribute
- Delete relationship attribute
- Delete relationship
- Delete attribute from a context
- Delete enhancer attribute from a context
Write-type Snap
Works in Ultra Tasks
Limitations and known issues
None.
Snap views
| View | Description | Examples of upstream and downstream Snaps |
|---|---|---|
| Input | This Snap has at the most one document input view. The entity or entities for which you want to update the details. | |
| Output | This Snap has at the most one document output view. This Snap displays the details of the entity/entities from the Syndigo in the RSJSON or simplified JSON format. | |
| Error |
Error handling is a generic way to handle errors without losing data or failing the Snap execution. You can handle the errors that the Snap might encounter when running the pipeline by choosing one of the following options from the When errors occur list under the Views tab. The available options are:
Learn more about Error handling in Pipelines. |
|

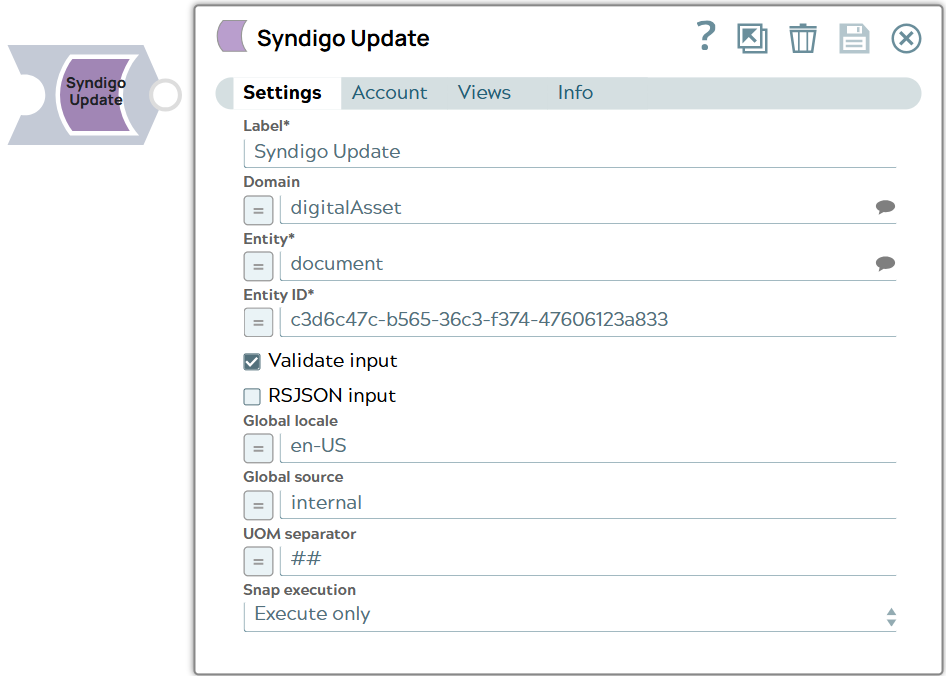

Snap settings
- Expression icon (
): Allows using JavaScript
syntax to access SnapLogic Expressions to set field values dynamically (if enabled). If
disabled, you can provide a static value. Learn more. - SnapGPT (
): Generates SnapLogic Expressions
based on natural language using SnapGPT. Learn
more. - Suggestion icon (
): Populates a
list of values dynamically based on your Snap configuration.
You can select only one attribute at a time using the icon.
Type into the field if it supports a comma-separated list of values. - Upload
: Uploads files. Learn more.
| Field / Field set | Type | Description |
|---|---|---|
| Label | String |
Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline. Default value: Syndigo Update Example: Update relationships and context attributes |
| Domain | String/Expression/ Suggestion |
A (data) domain in Syndigo refers to a large data set that covers a specific area of importance like Product data, Customer data, Asset data, or Suppplier data. Specify the domain to update the entity information records from. See the list of permitted domains. Default value: None. Example: thing |
| Entity | String/Expression/ Suggestion |
Required. Specify the entity type (category) under the chosen domains to update the entity information. The list of suggested entities is based on the specified domain. If no Domain is specified, this field suggests all entities that the Snap account can access. Default value: None. Example: product |
| Entity ID | String/Expression |
Required. Specify the entity ID for the Snap to update the entity information. Default value: None. Example: 6123a833-b5c3-f365-3674-47c3d6c47c60 |
| Validate input | Checkbox |
Select this checkbox for the Snap to validate the input data against the expected schema for the selected Domain-Entity combination. Note: If this checkbox is selected, the Snap verifies whether:
Default status: Selected |
| RSJSON input | Checkbox |
Select this checkbox to indicate that the input is in the RSJSON format. The Snap does not validate the input data for RSJSON format compliance. Selecting this checkbox disables the Global locale, Global source, and UOM separator fields. Default status: Deselected |
| Global locale | String/Expression | Specify the global locale to be used, in the xx-XX language identifier format,
while formatting this simplified/flattened JSON input data to RSJSON format.
Default value: en-US Example: fr-FR |
| Global source | String/Expression | Specify the source to be used, whether it is internal or external, while formatting this simplified/flattened JSON input data to RSJSON format. Default value: internal Example: external |
| UOM separator | String/Expression |
Specify the separator character/string that separates a value from its unit of measure (UOM) in the simplified/flattened JSON input. Default value: ## Example: @$%, ^$* |
| Snap execution | Dropdown list |
Choose one of the three modes in
which the Snap executes. Available options are:
Default value: Execute only Example: Validate & Execute |
Troubleshooting
Error while validating the input. Invalid RSJSON format.
The Syndigo Update Snap expects input data in a valid RSJSON format schema when the RSJSON input checkbox is selected.
Restructure your input (if it follows simplified JSON schema or otherwise) to match the schema expectations of the RSJSON format.
Error while generating schema
The schema of the input data does not match with that of the specified Domain and Entity combination. Syndigo Update Snap expects input data in a valid RSJSON format schema.
Either restructure your input to follow the simplified JSON schema or RSJSON (OR) choose a valid combination of Domain and Entity that matches with the input data's schema.
Error while validating the input. No matching attributes found in the input data.
The Snap did not find atleast one matching configuration in the input for the specified Domain and Entity combination. Syndigo Update Snap expects atleast one matching configuration in the input data.
Either modify your input to include atleast one matching configuration (OR) choose a valid combination of Domain and Entity that matches with the input data's schema.
