Retrieve sales order data from SAP S/4HANA server

This Pipeline example demonstrates how to use a SAP S/4HANA Cloud Read Custom Query Snap to define a custom query for retrieving sales order records from the SAP S/4HANA Cloud instance. The Snap queries the A_SalesOrder entity via API object ZAPI_SALES_ORDER_SRV_0001 (Remote API for SD Sales Order) for sales order data. The example assumes that you have configured and authorized a valid SAP S/4HANA Cloud Account (see Configuring SAP S/4HANA Cloud Accounts).

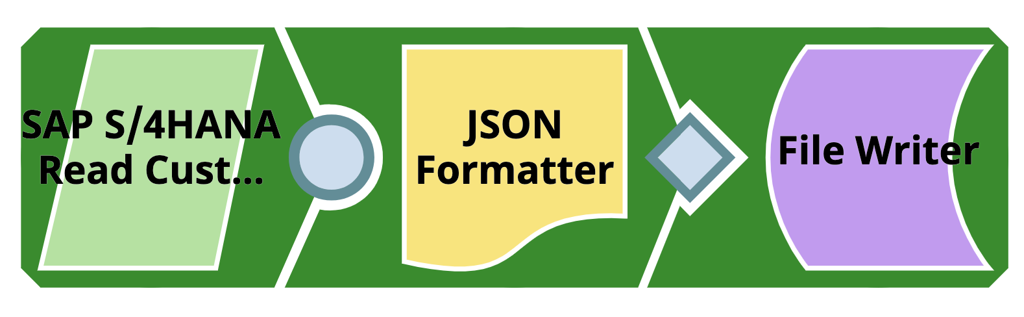

SAP S/4HANA Cloud Retrieve Sales Order Example Pipeline

Download this Pipeline
  1. Configure the SAP S/4HANA Cloud Read Custom Query Snap to define a custom query that retrieves the sales order records from the SAP S/4HANA Cloud instance.

    The Snap uses the following settings:

    • API object: ZAPI_SALES_ORDER_SRV_0001 (Remote API for SD Sales Order)
    • Entity: A_SalesOrder
    • Filter criterion: For Plant 0001 and no other filters (Plant value equals '0001' and Condition None)

    On validation, the Snap displays the sales order records retrieved from the SAP S/4HANA Cloud instance.

    Cloud Read Custom Query Snap configuration Cloud Read Custom Query Snap output

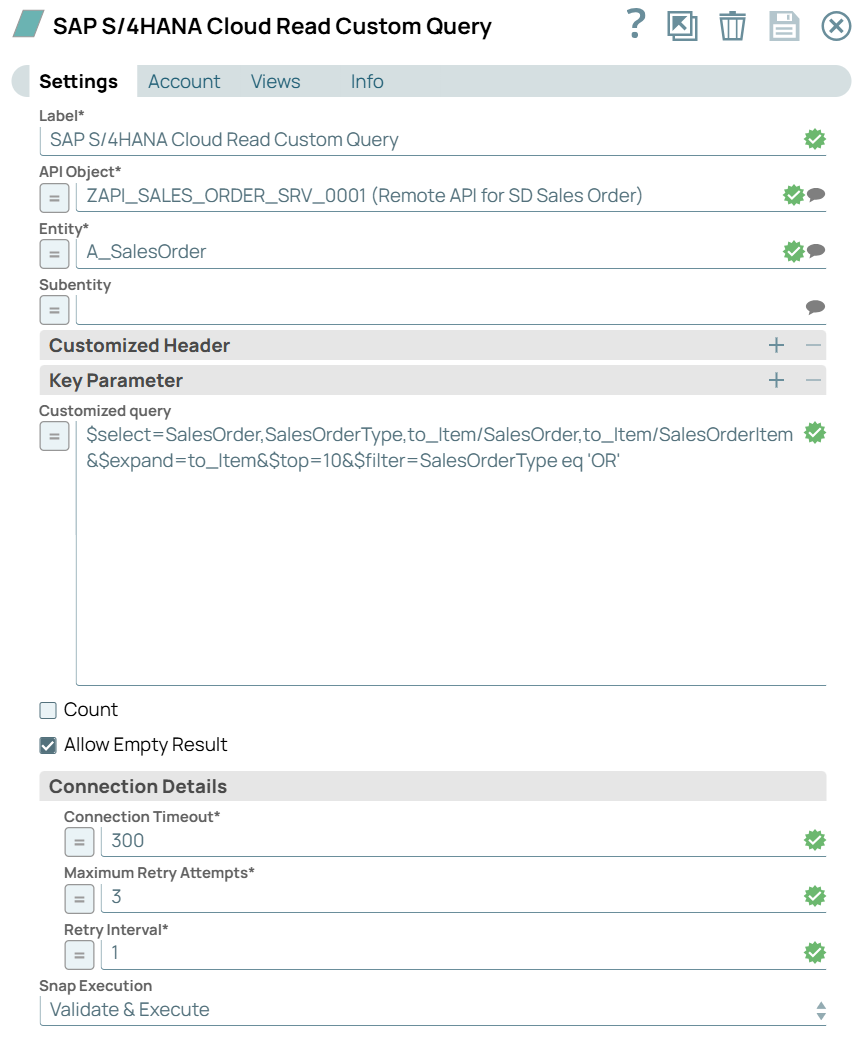

    Cloud Read Custom Query Snap configuration

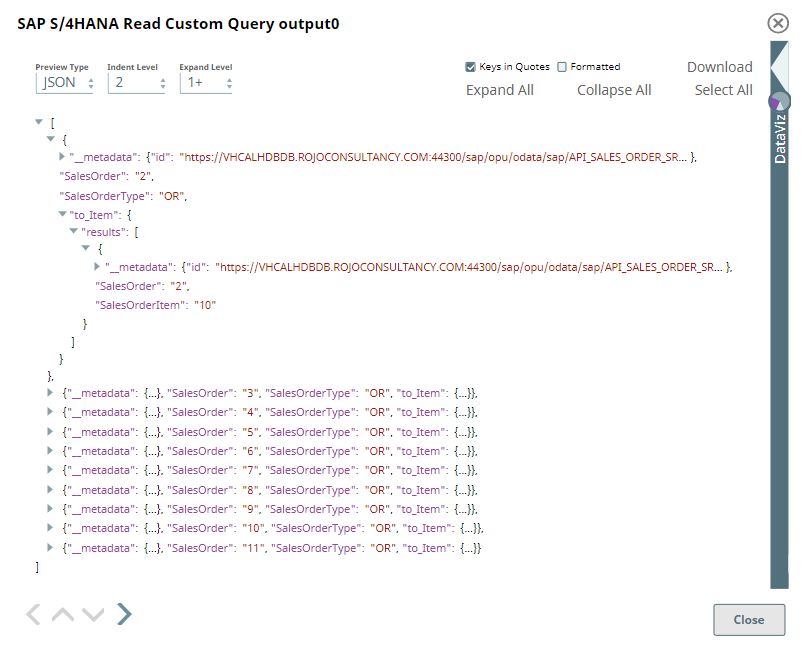

    Cloud Read Custom Query Snap output
  2. Configure the JSON Formatter Snap to format the output data of the upstream Snap into the standard JSON format.
  3. Configure the File Writer Snap to write the JSON-formatted data from the upstream Snap into a file.

    On running the pipeline, the Snap writes the JSON-formatted sales order data to the specified file. To view the output JSON file, you must SSH to the target directory and open the newly-created JSON file.

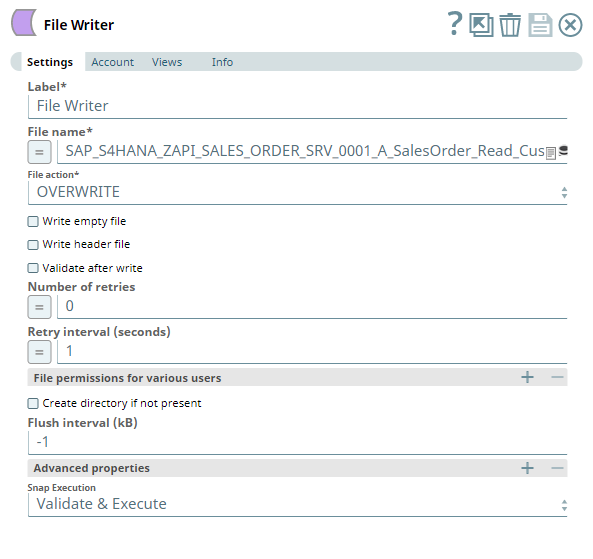

    File Writer Snap configuration

To reuse the example pipelines:
  1. Download and import the SLP file into your Environment.
  2. Configure Snap accounts.
  3. Provide Pipeline parameters, if any.
