MCP OAuth2 JWT Validator rule

Authenticates MCP Server requests by validating a JSON Web Token (JWT) against your identity provider's JSON Web Key Set (JWKS) endpoint. The rule verifies the token signature, issuer, expiration, and optionally the audience and additional claims before allowing the request to proceed.

You can configure the rule to extract values from the JWT claims and propagate them to pipeline parameters. This enables token propagation, allowing downstream pipeline logic to act on behalf of the authenticated user without re-authenticating. Propagated token values do not appear in logs and are not visible in Monitor.

Before allowing access to the MCP Server, the policy does the following:

Checks if the JWT token is valid.
- If valid, processes the request and optionally propagates claims to pipeline parameters.
- If invalid or expired, rejects the request.

The JWT Validator rule works with the Authorize by Role policy. Use the value of the JWT role claim as the value for the Role field in the Authorize by Role policy.

Policy execution order

The MCP OAuth2 JWT Validator policy executes after the request has been received and before it is routed to the MCP Server pipeline.

Supported algorithms

This rule supports the following cryptographic algorithms:

Elliptic Curve Digital Signature Algorithm (ECDSA): ES256, ES384, ES512
Rivest–Shamir–Adleman (RSA): RS256, RS384, RS512
Hash-Based Message Authentication Code using SHA (HMAC): HS256, HS384, HS512

Note: All expression-enabled fields accept expressions from the SnapLogic Expression Language.

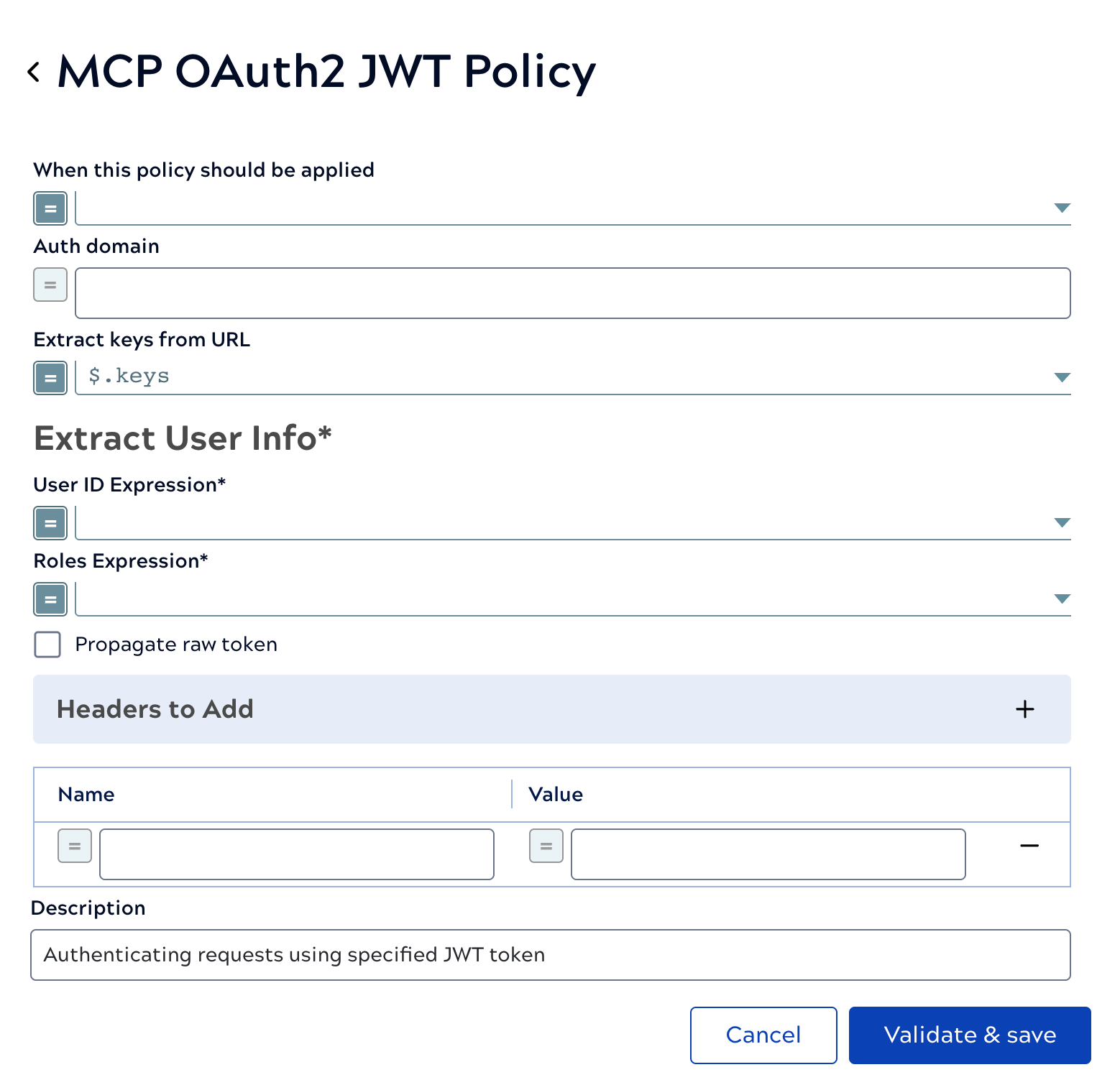

Field/Field set	Description
When this policy should be applied	Boolean that determines when this policy should be applied to a request Default value: Example:
Auth domain	URL for fetching the keys for verifying the JWT Token. Default value: N/A Example: https://test-example.us.auth0.com
Extract keys from URL	How to extract the keys from the URL response entity. Default value: $.keys Example: $.keys
Extract User Info	Required. Extract username and roles for authentication.
Roles Expression	Required. An expression that will extract the roles from the User Info URL responses Example:
User ID Expression	Required. An expression that will extract the user ID from the User Info URL responses Example:
Propagate raw token	To propagate the raw token in the header Default status: Deselected
Headers to Add	The headers to be added in the request Example:
Description	The purpose of the rule.

Token Propagation

Token propagation passes an identity or access token from the authenticating client through to your pipeline execution context, so that downstream pipeline logic can act on behalf of the authenticated user without re-authenticating. Typical use cases include single sign-on (SSO) across internal tools, orchestrating workflows across multiple APIs while preserving user context, and enforcing fine-grained access control in data platforms.

The configurations described here affect only token propagation and do not affect the MCP Server's request processing. However, the resolved claims must exist if they are referenced in the pipeline; otherwise, the request results in an error.

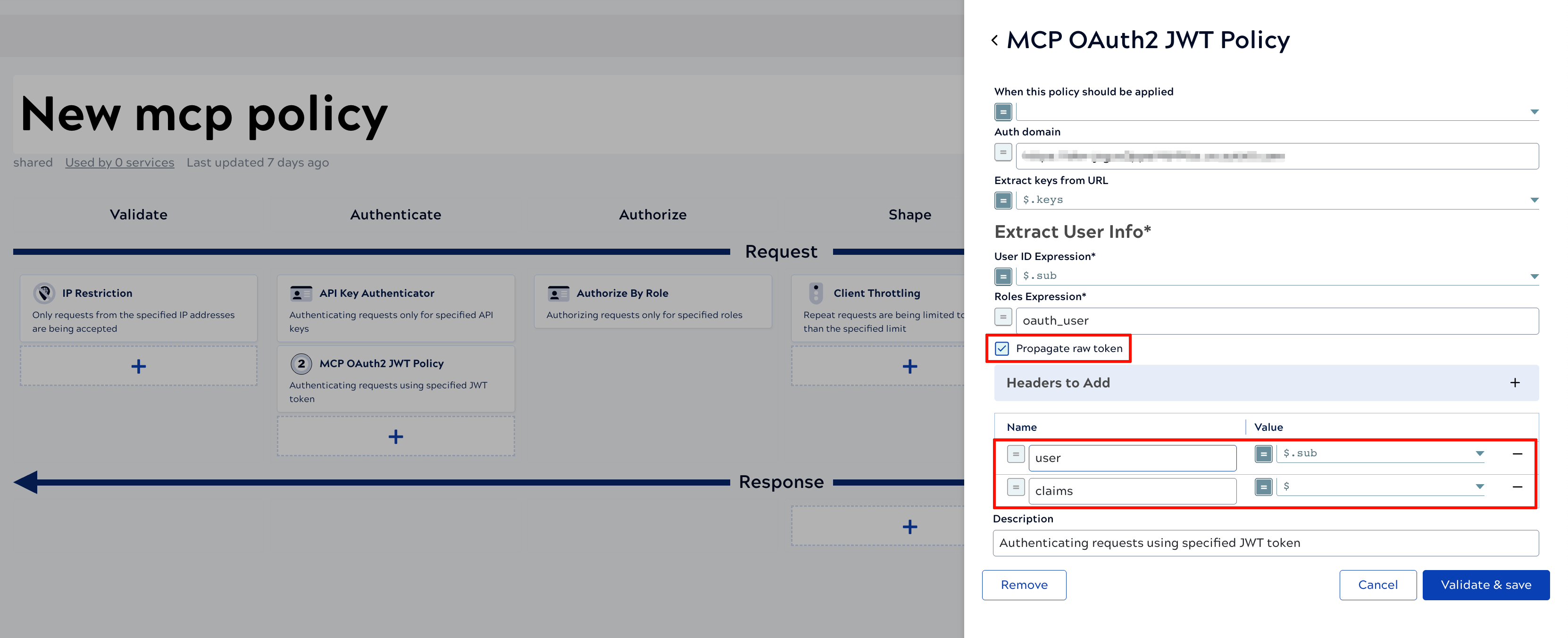

Policy setup

The MCP OAuth2 JWT Validator rule supports token propagation through two fields:

Propagate Raw Token: When enabled, propagates the raw JWT token string to the pipeline as the RAW_TOKEN pipeline parameter.
Headers to Add: Extracts specific claims from the JWT token. Individual fields can be referenced using a dot-notation expression (for example, $.sub), or all claims using $. The extracted values are passed to the pipeline when matching pipeline parameters exist.

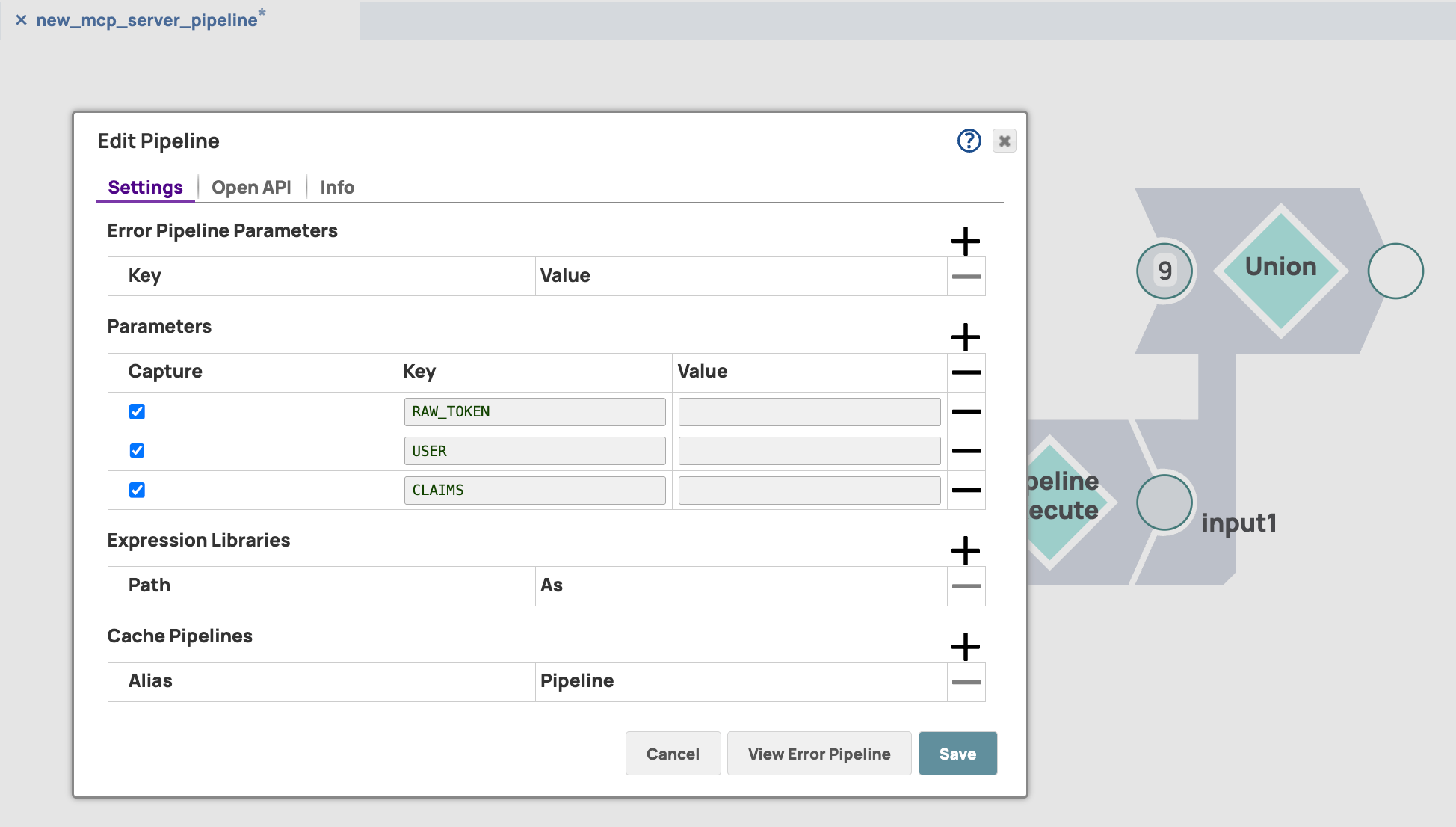

Pipeline setup

After configuring token propagation in the policy, add matching keys to the pipeline parameter table so the token values are passed to the declared keys. For example, if Propagate Raw Token is enabled and Headers to Add contains entries for user and claims, declare RAW_TOKEN, USER, and CLAIMS as keys in the pipeline parameter table.

Important:

All keys sourced from headers must be declared in upper case in the pipeline parameters.
Header field names containing hyphens (-) are converted to underscores (_) in the pipeline parameters.
