OpenAPI Function Generator

Overview

You can use this Snap to convert an OpenAPI specification into functions for tool calling.


OpenAPI Function Generator Snap Overview

Prerequisites

None.

Limitations and known issues

None.

Snap views

View Description Examples of upstream and downstream Snaps
Input This Snap can have none or one document input view. The input can include tools. If present, the Snap concatenates it with the OpenAPI function.
Output This Snap has exactly one document output view. The output contains a list of tools, each representing an OpenAPI function with its metadata, including the function name, description, method, URL, security settings, headers, and a JSON schema defining the input parameters.
Error

Error handling is a generic way to handle errors without losing data or failing the Snap execution. You can handle the errors that the Snap might encounter when running the pipeline by choosing one of the following options from the When errors occur list under the Views tab. The available options are:

  • Stop Pipeline Execution Stops the current pipeline execution when an error occurs.
  • Discard Error Data and Continue Ignores the error, discards that record, and continues with the remaining records.
  • Route Error Data to Error View Routes the error data to an error view without stopping the Snap execution.

Learn more about Error handling in Pipelines.

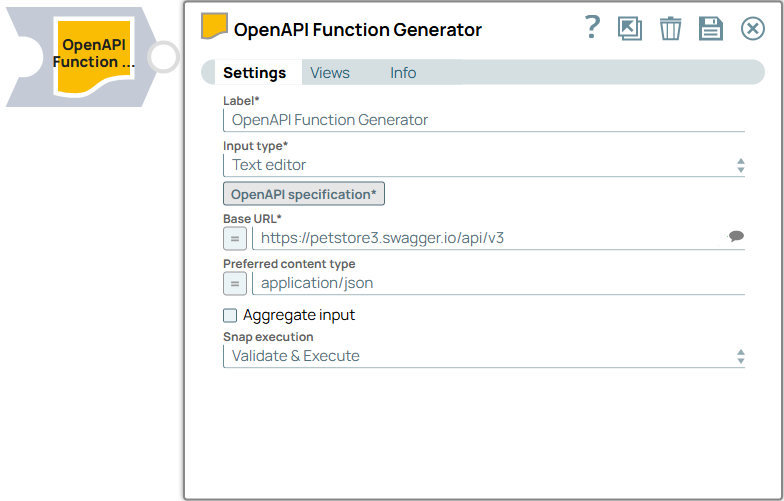

Snap settings

Legend:
  • Expression icon (): JavaScript syntax to access SnapLogic Expressions to set field values dynamically (if enabled). If disabled, you can provide a static value. Learn more.
  • SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (): Populates a list of values dynamically based on your Account configuration.
  • Upload : Uploads files. Learn more.
Learn more about the icons in the Snap settings dialog.
Field / Field set Type Description
Label String

Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline.

Default value: OpenAPI Function Generator

Example: Generate API Functions
Input type Dropdown list Required. Choose the input method for the OpenAPI specification. Available options are:
  • File
  • Input document
  • Text editor
  • URL

Default value: Text editor

Example: URL
OpenAPI specification Button

Appears when you choose Text editor for the Input type field.

Required. Click the button to open the text editor for specifying the OpenAPI specification content in JSON or YAML format.

OpenAPI specification String/Expression

Appears when you choose Input document for the Input type field.

Required. Specify the OpenAPI specification content in JSON or YAML format.

OpenAPI specification file String/Expression

Appears when you choose File for the Input type field.

Required. Specify the OpenAPI specification file to generate functions. You can also upload the file from your SLDB.

Default value: N/A

Example: openapi_spec.yaml
OpenAPI specification URL String/Expression

Appears when you choose URL for the Input type field.

Required. Specify the OpenAPI specification URL to generate functions.

Default value: N/A

Example: openapi_spec.yaml
Base URL String/Expression/Suggestion Required. Specify the base URL for the OpenAPI specification.

Default value: N/A

Example: https://petstore3.swagger.io/api/v3
Preferred content type String/Expression Required. Specify the content type in a MIME (Multipurpose Internet Mail Extensions) type format for the OpenAPI specification.
Important: If you do not provide a content type or if it is not supported, the Snap defaults to the first supported content type from the specification.

Default value: application/json

Example: application/yaml
Aggregate input Checkbox/Expression

Select this checkbox to aggregate the input content into a single output document. When selected, the Snap isn't compatible with Ultra Tasks.

Important: This field does not support upstream values.

Default status: Deselected

Snap execution Dropdown list
Select one of the three modes in which the Snap executes. Available options are:
  • Validate & Execute: Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime.
  • Execute only: Performs full execution of the Snap during pipeline execution without generating preview data.
  • Disabled: Disables the Snap and all Snaps that are downstream from it.

Default value: Validate & Execute

Example: Execute only

Examples
