Examples of Structured Outputs
Guidelines for the Structured Outputs capability in Azure LLM Snaps
- All fields must be required. To simulate optional fields, you can use a union type that includes `null` (e.g., `"type": ["string", "null"]`).
- Objects must set `additionalProperties` to `false` to disallow extra properties.
- Schemas are limited to 100 total properties and a maximum nesting depth of 5 levels.
- The combined character count of all property names, definitions, enum values, and `const` values must not exceed 15,000.
- A schema can contain a maximum of 500 enum values in total across all properties.
- If an `enum` property has over 250 string values, their total length is limited to 7,500 characters.

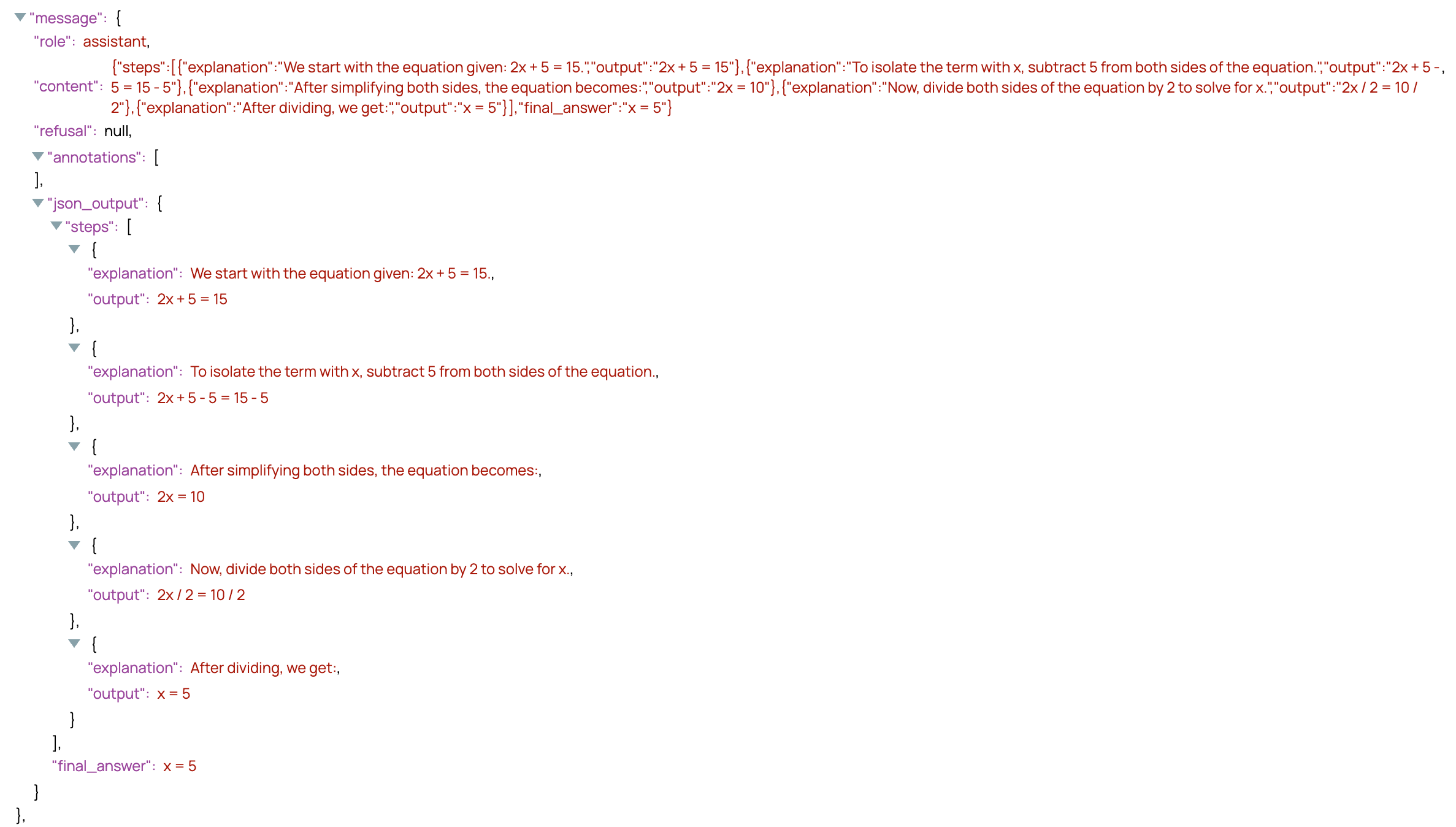

Basic Example
{
"model": "gpt-4o-2024-08-06",
"messages": [
{
"role": "system",
"content": "You are a helpful math tutor. Guide the user through the solution step by step."
},
{
"role": "user",
"content": "Solve for x: 2x + 5 = 15"
}
],
"response_format": {
"type": "json_schema",
"json_schema": {
"name": "math_reasoning",
"description": "Provides a step-by-step explanation and final answer for solving mathematical problems.",
"schema": {
"type": "object",
"properties": {
"steps": {
"type": "array",
"items": {
"type": "object",
"properties": {
"explanation": { "type": "string" },
"output": { "type": "string"}
},
"required": ["explanation", "output"],
"additionalProperties": false
}
},
"final_answer": { "type": "string" }
},
"required": ["steps", "final_answer"],
"additionalProperties": false
},
"strict": true
}
}
}Any of
{
"model": "gpt-4o-2024-08-06",
"messages": [
{
"role": "system",
"content": "You are a database assistant. Process user requests for inserting objects into the database."
},
{
"role": "user",
"content": "Insert an address with number 123, street Main St, and city Springfield."
}
],
"response_format": {
"type": "json_schema",
"json_schema": {
"name": "database_insert",
"description": "Handles inserting user or address objects into the database.",
"schema": {
"type": "object",
"properties": {
"item": {
"anyOf": [
{
"type": "object",
"description": "The user object to insert into the database",
"properties": {
"name": {
"type": "string",
"description": "The name of the user"
},
"age": {
"type": "number",
"description": "The age of the user"
}
},
"additionalProperties": false,
"required": ["name", "age"]
},
{
"type": "object",
"description": "The address object to insert into the database",
"properties": {
"number": {
"type": "string",
"description": "The number of the address. Eg. for 123 main st, this would be 123"
},
"street": {
"type": "string",
"description": "The street name. Eg. for 123 main st, this would be Main St"
},
"city": {
"type": "string",
"description": "The city of the address"
}
},
"additionalProperties": false,
"required": ["number", "street", "city"]
}
]
}
},
"additionalProperties": false,
"required": ["item"]
},
"strict": true
}
}
}
Defintions
{
"model": "gpt-4o-2024-08-06",
"messages": [
{
"role": "system",
"content": "You are a helpful math tutor. Guide the user through the solution step by step."
},
{
"role": "user",
"content": "Solve for x: 2x + 5 = 15"
}
],
"response_format": {
"type": "json_schema",
"json_schema": {
"name": "database_insert",
"description": "Handles inserting user or address objects into the database.",
"schema": {
"type": "object",
"properties": {
"steps": {
"type": "array",
"items": {
"$ref": "#/$defs/step"
}
},
"final_answer": {
"type": "string"
}
},
"$defs": {
"step": {
"type": "object",
"properties": {
"explanation": {
"type": "string"
},
"output": {
"type": "string"
}
},
"required": [
"explanation",
"output"
],
"additionalProperties": false
}
},
"required": [
"steps",
"final_answer"
],
"additionalProperties": false
},
"strict": true
}
}
}
Recursion
{
"model": "gpt-4o-2024-08-06",
"messages": [
{
"role": "system",
"content": "You are a UI assistant. Generate structured JSON for dynamically rendering UI components."
},
{
"role": "user",
"content": "Generate a UI structure containing a form with a header, a section, and a button inside the section."
}
],
"response_format": {
"type": "json_schema",
"json_schema": {
"name": "ui",
"description": "Dynamically generated UI",
"schema": {
"type": "object",
"properties": {
"type": {
"type": "string",
"description": "The type of the UI component",
"enum": ["div", "button", "header", "section", "field", "form"]
},
"label": {
"type": "string",
"description": "The label of the UI component, used for buttons or form fields"
},
"children": {
"type": "array",
"description": "Nested UI components",
"items": {
"$ref": "#"
}
},
"attributes": {
"type": "array",
"description": "Arbitrary attributes for the UI component, suitable for any element",
"items": {
"type": "object",
"properties": {
"name": {
"type": "string",
"description": "The name of the attribute, for example onClick or className"
},
"value": {
"type": "string",
"description": "The value of the attribute"
}
},
"additionalProperties": false,
"required": ["name", "value"]
}
}
},
"required": ["type", "label", "children", "attributes"],
"additionalProperties": false
},
"strict": true
}
}
}
