Snowflake Google Storage OAuth2 Account

Overview

You can use this account type to connect Snowflake Snaps with data sources that use Snowflake Google Storage OAuth2 account.
Note: The Snowflake - Bulk Load and Snowflake - Bulk Upsert Snaps support loading data from Google Cloud Storage as an external stage. Input view data sources must use internal staging for Google external storage.

Prerequisites

Limitations and Known Issues

When refreshing the access token, the Snowflake API prevents you from getting a new refresh token as the refresh tokens are short lived with a validity of 90 days (7776000 seconds).

Solution: To get a new token after every 90 days you must reauthorize your Snowflake account for the token to be valid for the next 90 days. We recommend you to set the oauth_refresh_token_validity to 7776000 seconds as shown below when creating the Security Integration in Snowflake.

alter integration <integration name>
set oauth_refresh_token_validity = 7776000;

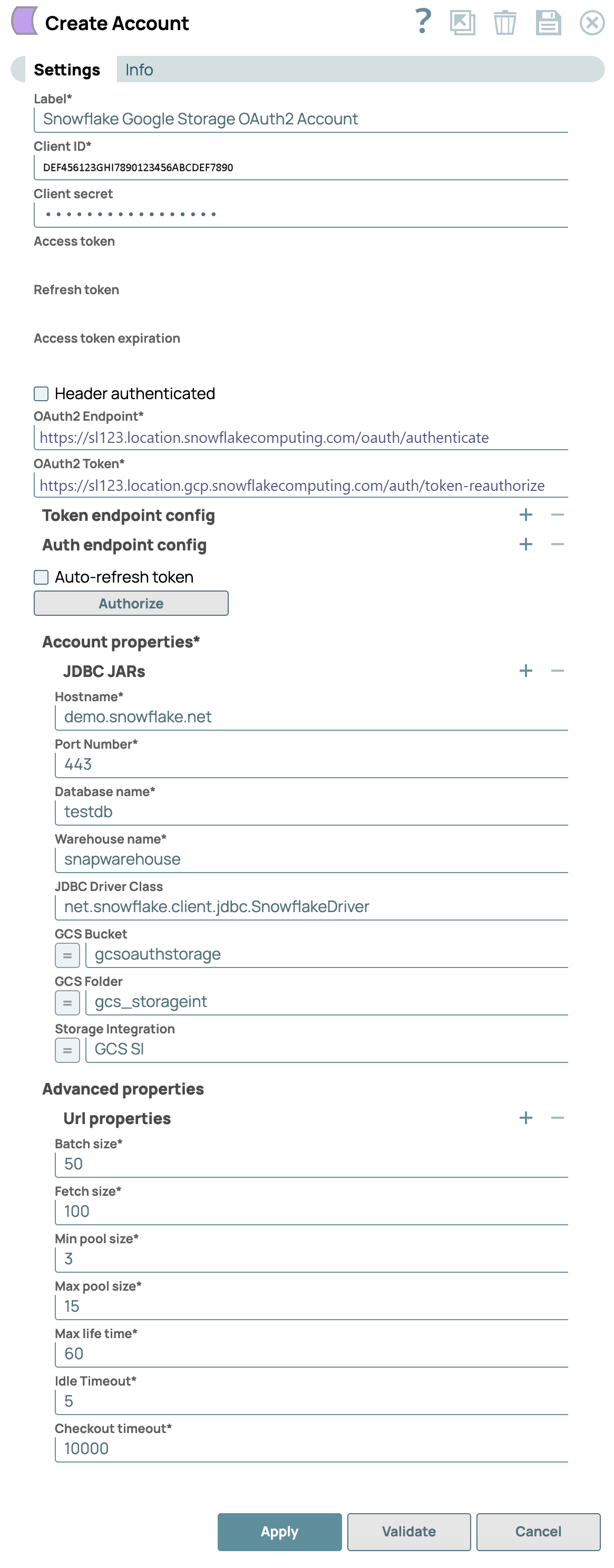

Account settings


Snowflake Google Storage OAuth2 account

Legend:
  • Expression icon (): Allows using JavaScript syntax to access SnapLogic Expressions to set field values dynamically (if enabled). If disabled, you can provide a static value. Learn more.
  • SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
  • Upload : Uploads files. Learn more.
Learn more about the icons in the Snap settings dialog.
Field / Field set Type Description
Label String

Required. Specify a unique label for the account.

Default value: N/A

Example: Snowflake Google Storage OAuth2 Account
Client ID String

Required. Specify the OAuth Client ID (to be used for token request) that you obtain from the Snowflake Console. Learn more about How to generate OAuth Client ID and Client secret.

Default value: N/A

Example: GZxuj932klnbue8=
Client secret String

Required. Specify the OAuth Client secret that you obtain from the Snowflake Console.

Default value: N/A

Example: !tz@wld*(687
Access token String

Required. Auto-generated upon account authorization. The access token is used to make API requests on behalf of the user associated with the client ID.

Default value: N/A

Example: eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiIxMjM0NTY3ODkwIiw
Refresh token String

Auto-generated upon account authorization. The token used to refresh the access token.

To access the API beyond the lifetime of a single access token, your application can obtain a refresh token. The application stores the refresh token for future use and automatically refreshes the access token before it expires.

Default value: N/A

Example: 857427
Access token expiration Integer Auto-generated upon account authorization. The number of seconds after which the access token expires.
Note: We recommend you to set the oauth_refresh_token_validity to 7776000 seconds when creating the Security Integration in Snowflake as this is the maximum time Snowflake allows for obtaining refresh tokens.

Default value: N/A

Example: 16541
Header authenticated Checkbox Select this checkbox if the endpoint uses bearer header authentication.

Default status: Deselected
OAuth2 authorization endpoint String Required. Specify the endpoint in this format https://<account_identifier>.snowflakecomputing.com/oauth/authorize to authorize the application. Account identifier is the full name of your account that is provided by Snowflake.

Default value: N/A

Example: https://myaccount.snowflakecomputing.com/oauth/authorize
OAuth2 token endpoint String Required. Specify the OAuth2 token in this format https://<account_identifier>.snowflakecomputing.com/oauth/token-request to get the access token.

Default value: N/A

Example: https://myaccount.snowflakecomputing.com/oauth/token-request
Grant type Dropdown list Select one of the following Grant types for authorization:
  • Password: Obtains access token using your login credentials (username and password). When selected, it populates the following fields:
    • Username: Enter the username of the account type.
    • Password: Enter the password of the account type.
  • authorization_code: Authentication using credentials (username and password), which return to the client through a redirect URL. The application then receives the authorization code from the URL and uses it to request an access token.
  • client_credentials: Obtains an access token for the client ID and client secret through the token endpoint URL.

Default value: N/A

Example: client_credentials
Token endpoint config Use this field to define custom properties for the OAuth2 token endpoint. Depending on the request parameters, this endpoint returns access tokens or refresh tokens.
Token endpoint parameter String

Specify the parameter for the token endpoint.

Default value: N/A

Example: redirect_uri
Token endpoint parameter value String

Specify the value for the token endpoint parameter.

Default value: N/A

Example:
  • https://elastic.snaplogic.com/api/1/snowflake/admin/oauth2callback/snowflake
  • https://elastic.snaplogic.com/api/1/snowflake/admin/oauth2callback/snowflake"
Authorization endpoint config Use this fieldset to define custom properties for the OAuth2 authentication endpoint.
Note: You can define scopes in this field set and limit the authorization to a custom role. For example, scope=session:role:R1. Learn more.
Authentication parameter String

Specify the parameter for OAuth2 authentication.

Default value: N/A

Example: redirect_uri
Authentication parameter value String

Specify the value for the OAuth2 authentication parameter.

Default value: N/A

Example: https://elastic.snaplogic.com/api/1/snowflake/admin/oauth2callback/snowflake
Auto-refresh token Checkbox Select this checkbox to enable auto-refresh of the access token before it expires.

Default status: Deselected
JDBC JARs Use this field set to add a list of JDBC JAR files to be loaded. By default, the Snowflake account is bundled with the JDBC driver version 3.24.2. However, you can add a custom JAR file. Click + to add a new row for each JDBC JAR file. Add each JAR file in a separate row. See Downloading the JDBC driver for more information about JDBC drivers and downloading the appropriate driver for your account..
JDBC Driver String

Specify the fully-qualified name of the JDBC driver class to be used for connecting to the server.

Note: The Snowflake Snap Pack is bundled with the default Snowflake JDBC driver v3.24.2. Therefore, even if you do not provide a JDBC Driver, the account does not fail.

Default value: N/A

Example: snowflake-jdbc-3.24.2.jar
Hostname String/Expression Required. Required. Specify the hostname of the Snowflake server to connect the new account.

Default value: N/A

Example: demo.snowflake.net
Port Number Integer/Expression Required. Specify the port number associated with the Snowflake database server that you must use for this account.

Default value: 443

Example: 332
Database name String/Expression Required. Specify the Snowflake database to connect to.

Default value: N/A

Example: snapsdb
Warehouse name String/Expression Required. Specify the name of the warehouse to which you want to connect.

Default: None

Example: SL_WH
JDBC driver class String Specify the JDBC driver class to use.

Default value: net.snowflake.client.jdbc.SnowflakeDriver

Example: net.snowflake.client.jdbc.SnowflakeDriver
GCS bucket String/Expression

Specify the name of the GCS bucket from which to load the staged data to your Snowflake database.

Default value: N/A

Example: sw_gcs_bucket_1
GCS folder String/Expression

Specify the relative path to the folder in the GCS bucket where the source files are located. This is used as a root folder for staging data.

Default value: N/A

Example: sw_gcs_bucket_1_Files
Storage integration String/Expression

Required. Specify the predefined storage integration that is used to authenticate the GoogleCloud Storage bucket hosting as the external stage.

Default value: N/A

Example: us-west-1
URL Properties Use this field set to define additonal URL properties to use if any.
URL property name String

Specify the name of the URL property.

Default: None

Example: MAX_CONCURR ENCY_LEVEL
URL property value String Specify the URL property value associated with the URL property name.

Default: None

Example: 4

Default: None

Example:
Batch size Integer/Expression Specify the number of statements that you want to execute at a time.
  • Select queries are not batched.
  • Using a large batch size could use up the JDBC placeholder limit of 2100.

Default value: 50

Example: 40
Fetch size Integer/Expression Specify the number of rows you want a query to fetch during each execution.
Note: Large values could cause the server to run out of memory.

Default value: 100

Example: 200
Min pool size Integer/Expression Specify the minimum number of idle connections that you want the pool to maintain at a time.

Default value: 100

Example: 200
Max pool size Integer/Expression Specify the maximum number of connections that you want the pool to maintain at a time.
Note: Snowflake Bulk Load/Bulk Upsert/S3 Upsert Snap requires a minimum of 2 connections per Snap in a pipeline. For example, if a pipeline has a Snowflake Bulk Load Snap and an S3 Upsert Snap, then the pool size must be greater than or equal to 4 for successful execution.
  • Minimum value: 0
  • Maximum value: No limit

Default value: 15

Example: 40
Max lifetime (minutes) Integer/Expression Specify the maximum lifetime of a connection in the pool. Ensure that the value you enter is a few seconds shorter than any database or infrastructure-imposed connection time limit. A value of 0 indicates an infinite lifetime, subject to the Idle Timeout value. An in-use connection is never retired. Connections are removed only after they are closed.

Default value: 60

Example: 50
Idle timeout (minutes) Integer/Expression Specify the maximum amount of time a connection is allowed to sit idle in the pool. A value of 0 indicates that idle connections are never removed from the pool.

Default value: 5

Example: 4
Checkout timeout (milliseconds) Integer/Expression Specify the number of milliseconds you want the system to wait for a connection to become available when the pool is exhausted.
Note: If you provide 0, the Snap waits infinitely until the connection is available. Therefore, we recommend you not to specify 0 for Checkout Timeout. For any other value, the system throws an exception after the wait time has expired.
Default value: 10000
Example: 9000

Troubleshooting

Error Reason Resolution
Unsupported Private Key format Only PKCS8 format is supported. Provide a PKCS8 format Private key and retry.
Unable to read Private Key
  • Private Key and Passphrase Key combination is invalid.
  • Private Key is invalid.
  • Verify the Private key and Passphrase and retry.
  • Verify the Private key is correct with header, footer, and line breaks, and then retry.
Failed to validate account The specified Private Key is unencrypted, and unencrypted Private Key is not supported. Specify a valid Encrypted Private Key
Failed to retrieve a database connection. Connection is not available; request time out after 10000ms. Increase the maximum pool size in account configuration.
Failed to execute query because of SQL compilation error. If database usage is not granted for the role, the account validation fails. Run the following command in Snowflake worksheet: GRANT USAGE ON DATABASE SNAPDEV TO ROLE public
If schema or table usage is not granted for the role, the account validation fails. Run the following command in Snowflake worksheet based on requirements:
GRANT USAGE ON SCHEMA SNAPDEV.CUSTOMER TO ROLE public
(or)
GRANT ALL ON TABLE SNAPDEV.CUSTOMER.TEST TO ROLE public;
