SQL Server CDC Account

Overview

You can use this account type to establish a connection between SQL Server CDC Snap and SQL Server.

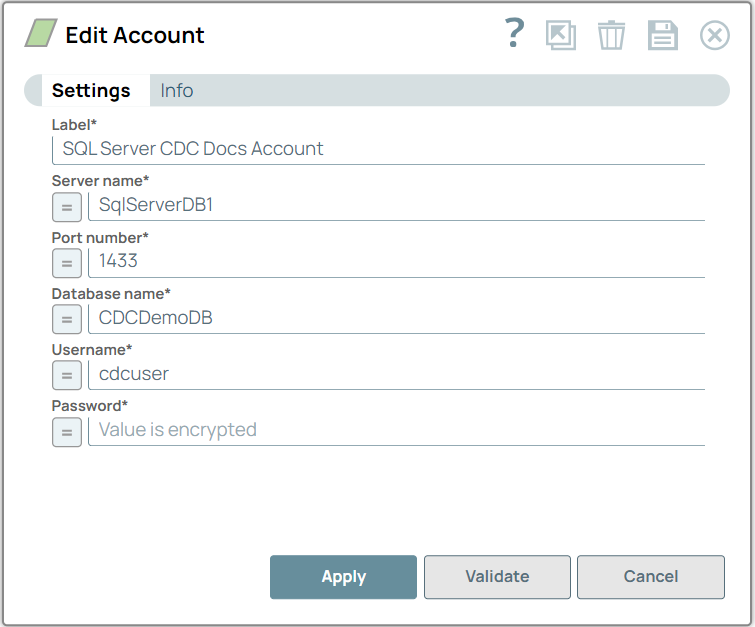

SQL Server - CDC Account

Prerequisites

  • You must be assigned the “SYSADMIN“ server role.

Account settings

Legend:
  • Expression icon (): Allows using JavaScript syntax to access SnapLogic Expressions to set field values dynamically (if enabled). If disabled, you can provide a static value. Learn more.
  • SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
  • Upload : Uploads files. Learn more.
Learn more about the icons in the Snap settings dialog.
Field / Field set Type Description
Label String

Required. Specify a unique label for the account.

Default value: N/A

Example: SQL Server CDC HR Account
Server name String/Expression

Required. Specify the server address to which the application must connect.

Default value: N/A

Example:
  • 190.122.0.122
  • SQL Serverdb1
Port Integer/Expression

Required. Specify the database server's port number to which the application must connect.

Default value: 1433

Example: 1433
Database name String/Expression

Required. Specify the user of the database.

Default value: N/A

Example: CDCDemoDB
Username String/Expression

Required. Specify the user of the database.

Default value: N/A

Example: cdcuser
Password String/Expression

Required. Specify the password used to connect to the data source. It is used as the default password when retrieving connections. The password must be valid in order to set up the data source.

Default value: N/A

Example: Password123DB
