MCP SSE OAuth2 Account

Overview

You can use this account type to connect MCP Client Snaps using an SSE server using OAuth2 authentication.

Prerequisites

  • A valid MCP SSE URI and required header fields if necessary for an MCP Server
  • A valid Client ID, Client secret, OAuth2 endpoint, and OAuth2 token.

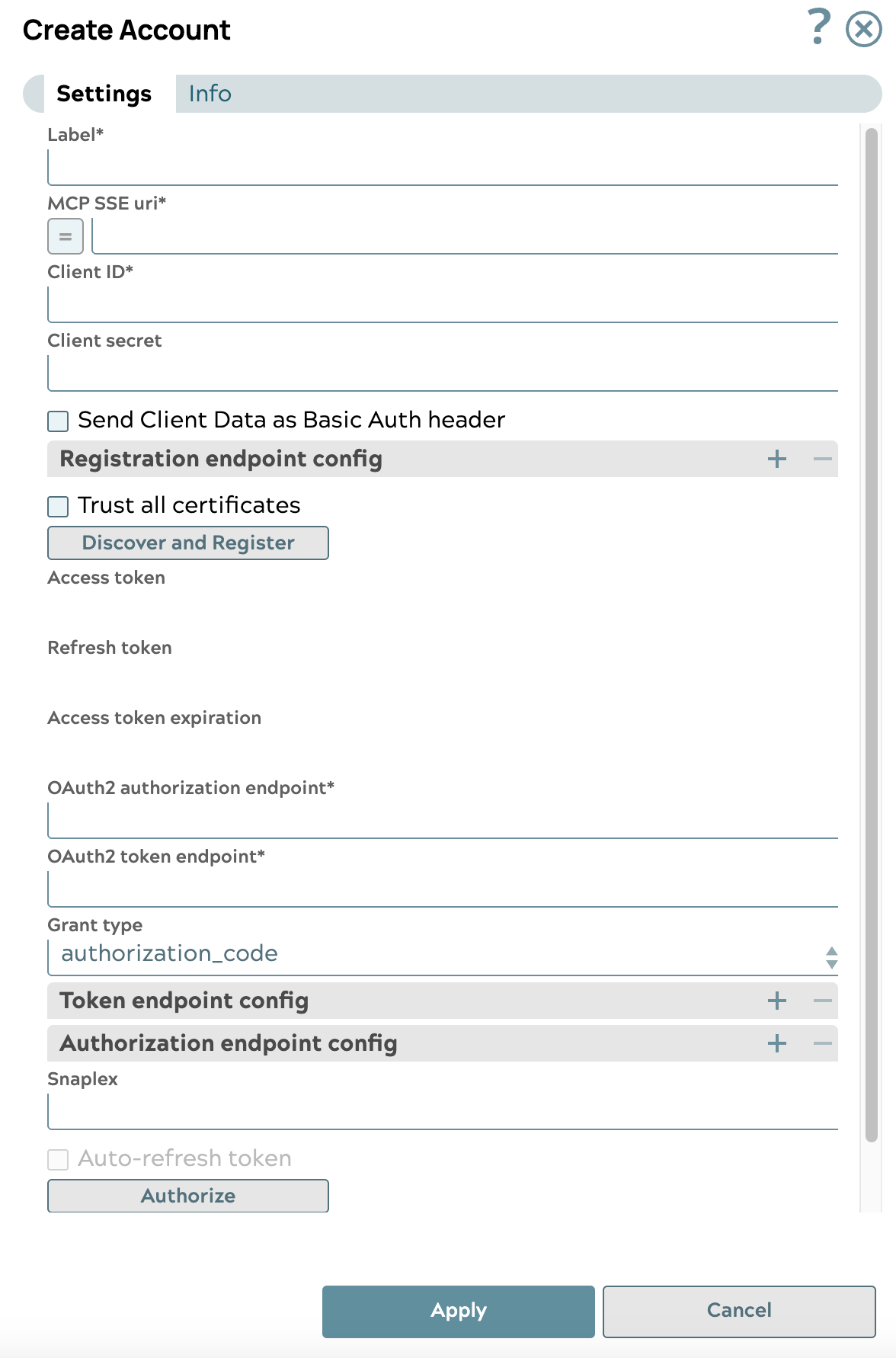

SSE OAuth2 Account

Account settings

Legend:
  • Expression icon (): Allows using JavaScript syntax to access SnapLogic Expressions to set field values dynamically (if enabled). If disabled, you can provide a static value. Learn more.
  • SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
  • Upload : Uploads files. Learn more.
Learn more about the icons in the Snap settings dialog.
Field / Field set Type Description
Label String Required. Specify the name for the account. We recommend updating the account name if there is more than one account of the same type in your project.

Default value: N/A

Example: MCP SSE OAuth2 Account
MCP SSE uri* String/Expression The URI of the MCP SSE server to connect to.
Client ID String Required. Specify the client ID associated with your account. You can create the client ID as advised by your application provider.

Default value: N/A

Example: p364e45x-953x-460p-9pb0-934xep16p693
Client secret String Required. Specify the client secret associated with your account. You can create the client secret as advised by your application provider.

Default value: N/A

Example: <Encrypted>
Send Client Data as Basic Auth Header Checkbox Select this checkbox to send the client information as a header to the OAuth endpoint.

Default status: Deselected
Registration endpoint config Use this field set to provide custom properties for the Registration endpoint. Click the + or - icons to add or remove configuration rows.
This field set comprises the following fields:
  • Token endpoint parameter
  • Token endpoint parameter value
Trust all certificates Checkbox Select this checkbox to bypass TLS certificate checks for HTTPS requests.
Discover and Register Checkbox Select this checkbox to dynamically register the client with the authorization server using the provided MCP endpoint and parameters.
Access token String Auto-generated after authorization. Specify the token that SnapLogic uses to make API requests on behalf of the user associated with the client ID. Tokens are encrypted values.
Refresh token String Auto-generated after authorization. Specify the refresh token associated with your account. If the refresh token is stored, then the access token can be refreshed automatically before it expires.

You should retrieve the Refresh token when setting up the account for the endpoint, where the OAuth2 flow is executed and the resulting refresh token is stored in this field. If the refresh token is stored, then the access token can be refreshed automatically before it expires. Tokens are encrypted values.
Access token expiration Integer Auto-generated after authorization. Specify the access token expiration value, in seconds.

Default: Current Time + 3600 seconds

Example: 10000s
Header authenticated Checkbox

Enable this if endpoint uses bearer header authentication

Default status: Deselected
OAuth2 Endpoint String Specify the URL of the endpoint that authorizes the application.

Default value: N/A

Example: https://login.microsoftonline.com/common/oauth2/v2.0/authorize
OAuth2 Token endpoint String Specify the URL of the endpoint that retrieves the token for an authenticated account.

Default value: N/A

Example: https://login.microsoftonline.com/common/oauth2/token
Grant Type Dropdown list Select one of the following methods for authorization:
  • Authorization Code: The user is authenticated using credentials (username and password), which return to the client through a redirect URL. The application then receives the authorization code from the URL and uses it to request an access token.
  • Client Credentials: Obtains an access token using the client ID and client secret through the token endpoint URL.
  • Password: Obtains access token using your login credentials (username and password). When selected, it populates the following fields:
    • Username: Enter the username of the account type.
    • Password: Enter the password of the account type.

Default value: Authorization Code

Example: client_credentials
Username String

Appears when Password is selected.

The username required by the password grant type

Default value: N/A

Example: admin101
Password String

Appears when Password is selected.

The password required by the password grant type

Default value: N/A

Example: xyzyx-zyzxz-yxzx
Send client ID in request body Checkbox

Still send the Client ID in the request body when using the authorization_code grant type

Default status: Deselected
Token endpoint config Use this field set to provide custom properties for the OAuth2 token endpoint. Click the + or - icons to add or remove configuration rows.
This field set comprises the following fields:
  • Token endpoint parameter
  • Token endpoint parameter value
Token endpoint parameter String Define an optional token endpoint parameter.

Default value: N/A

Example: N/A
Token endpoint parameter value String Enter the value associated with the optional endpoint parameter defined above.

Default value: N/A

Example: N/A
Authorization endpoint config Use this field set to provide custom properties for the OAuth2 auth endpoint. Click the + or - icons to add or remove configuration rows.
This field set comprises the following fields:
  • Auth endpoint parameter
  • Auth endpoint value
Auth endpoint parameter String Define an optional token endpoint parameter.

Default value: N/A

Example: N/A
Auth endpoint value String Enter the value associated with the authorization endpoint parameter defined above.

Default value: N/A

Example: N/A
Snaplex String Specify the Snaplex path to be used for OAuth2 operations.
Note:
  • By default, SnapLogic automatically selects an available Snaplex. Use this field only to handle specific scenarios, such as a network limitation.
  • If the specified Snaplex is not available or does not exist, the execution fails.

Default value: N/A

Example: /snaplogic/shared/cloud
Auto-refresh token Checkbox Disabled. Auto-refresh is not supported in this account.

Default status: Deselected
Authorize Button Click this button to authorize the OAuth2 account using the credentials provided in the Client ID, Client Secret, OAuth2 Endpoint, and OAuth2 Token fields.
Timeout Integer/Expression

The timeout for the MCP SSE connection.

Default value: 60 Example: 60

Troubleshooting

One or more required field is blank

You click Authorize in the account dialog window, but one or more of the following fields is blank:
  • Label
  • Client ID
  • Client secret
  • Request Token Endpoint
  • Access Token Endpoint
  • Authorize Endpoint
Insert valid details into the following fields and click Authorize.
  • Label
  • Client ID
  • Client secret
  • Request Token Endpoint
  • Access Token Endpoint
  • Authorize Endpoint

One or more required field is blank

You attempted to authorize your account, but authorization failed. Thus, the following fields are empty:
  • OAuth Token
  • OAuth Token Secret

You still click Apply.

Insert valid details into the following fields and click Authorize.
  • Label
  • Client ID
  • Client secret
  • Request Token Endpoint
  • Access Token Endpoint
  • Authorize Endpoint
