File Poller

Overview

You can use this Snap to poll the target directory and find file names matching the specified pattern.
Tip:
  • The Snap continues polling at the intervals specified in the Polling interval property until the timeout (specified in the Polling timeout property) is reached. After polling is done, the Snap lists all files whose names match the specified pattern.
  • This Snap can be used in situations where an operation must be triggered when a specific file is found in the target directory. The pipeline can be configured with additional Snaps to process the Snap's output and delete the matched file before the Polling interval value is reached.

  • The File Poller Snap uses the case-sensitive filter pattern, regardless of the operating system.

Note:

You must install the AzCopy utility, if you use the ABFS (Azure Blob File Storage) file protocol Azure Data Lake Gen 2 for bulk operation. The utility must be installed in Snaplex to fetch the file path. If the path is null, the native Azure Storage SDK is used for all operations. Learn more about the AzCopy command. If AzCopy Utility is not installed for ABS file transfer, the file transfer will not be as fast as using AzCopy because a REST call will be invoked for each file content instead of a bulk operation.

The SnapLogic Platform does not support the installation of utilities or processes on Cloudplexes. Learn more.

Warning: This Snap polls the target directory only. Subdirectories, if any, are ignored. Use the Directory Browser Snap if you want to poll files in the directory and all subdirectories, and to poll a directory only once.


Prerequisites

IAM Roles for Amazon EC2

The 'IAM_CREDENTIAL_FOR_S3' feature is used to access S3 files from EC2 Groundplex, without Access-key ID and Secret key in the AWS S3 account in the Snap. The IAM credential stored in the EC2 metadata is used to gain access rights to the S3 buckets. To enable this feature, set the Global properties (Key-Value parameters) and restart the JCC:jcc.jvm_options = -DIAM_CREDENTIAL_FOR_S3=TRUE

This feature is supported in the EC2-type Groundplex only. Learn more.

Connect to FTP server:

To connect to the FTP server that needs to reuse the session for data transfer over TLS protocol, add:

-DFTPS_SSL_TLS_PROTOCOL=TLSV1.2 (or) TLSV1.3property as a JVM option under the Global properties of the Node Properties tab:

Limitations

For S3 folders, the Snap currently supports polling the target directory for a maximum of 10,000 files. If there are more than that, the Snap does not provide any output.

Known issues

The Snap is expected to fail if there is no account selected. However, the Snap may execute successfully without any account if all the following conditions exist:
  • The Snap is executed in an EC2-instance Snaplex where your pipeline runs with an IAM role.
  • The S3 bucket accessed by the Snap includes the necessary permissions for use with the specific IAM role.
  • The following global property is set as a node property in the plex:
    jcc.jvm_options = -DIAM_CREDENTIAL_FOR_S3=TRUE


    • This Snap Pack no longer natively supports RSA-SHA1 authentication with the Secure File Transfer Protocol (SFTP). To enable support for RSA-SHA1 authentication, set the following property from the Configuration Options: Node Properties section.

Djsch.server_host_key=ssh-rsa -Djsch.client_pubkey=ssh-rsa

With the 4.33 GA release of the Binary Snap Pack , support for some algorithms for SFTP connection negotiation is removed for improved security and because we’ve updated the library used to connect to SFTP sources. If you want to revert to the previous settings, you can set the following jcc.jvm_options from the Node Properties section of Configuration Options. To update Cloudplexes, contact SnapLogic Support.

  • -Djsch.kex=ecdh-sha2-nistp256,ecdh-sha2-nistp384,ecdh-sha2-nistp521,diffie-hellman-group14-sha1,diffie-hellman-group-exchange-sha256,diffie-hellman-group-exchange-sha1,diffie-hellman-group1-sha1-Djsch.server_host_key=ssh-rsa,ssh-dss,ecdsa-sha2-nistp256,ecdsa-sha2-nistp384,ecdsa-sha2-nistp521-Djsch.client_pubkey=ssh-rsa,ssh-dss,ecdsa-sha2-nistp256,ecdsa-sha2-nistp384,ecdsa-sha2-nistp521-Djsch.cipher=aes128-ctr,aes128-cbc,3des-ctr,3des-cbc,blowfish-cbc,aes192-ctr,aes192-cbc,aes256-ctr,aes256-cbc-Djsch.check_ciphers=aes256-ctr,aes192-ctr,aes128-ctr,aes256-cbc,aes192-cbc,aes128-cbc,3des-ctr,arcfour,arcfour128,arcfour256-Djsch.check_kexes=diffie-hellman-group14-sha1,ecdh-sha2-nistp256,ecdh-sha2-nistp384,ecdh-sha2-nistp521-Djsch.check_signatures=ecdsa-sha2-nistp256,ecdsa-sha2-nistp384,ecdsa-sha2-nistp521

Behavior changes

The File Poller Snap now honors the value specified in the Polling timeout field instead of polling indefinitely in case of poor file polling operations. To handle indefinite polling operations the polling is done in a separate thread. However, when the execution time exceeds the value specified in the Polling timeout, a timeout exception is written to the log to prevent the polling from getting stuck and the Snap continues polling depending on the Polling timeout.

  • If the Polling timeout value is greater than 0, the Snap polls until the end of polling window.
  • If it is less than 0, the Snap stops polling.
  • If it is -1, the Snap continues polling.

Supported Protocols

Account types supported by each protocol are as follows:
Protocol Account types
sldb no account
s3 AWS S3
ftp Basic Auth
sftp Basic Auth, SSH Auth
ftps Basic Auth
hdfs no account
smb SMB
wasb Azure Storage
wasbs Azure Storage
gs Google Storage
file Local file system
Warning:

The FTPS file protocol works only in explicit mode. The implicit mode is not supported.

Required settings for account types are as follows:

Account Type Settings
Basic Auth Username, Password
AWS S3 Access-key ID, Secret key
SSH Auth Username, Private key, Key Passphrase
SMB Domain, Username, Password
Azure Storage Account name, Primary access key
Google Storage

Approval prompt, Application scope, Auto-refresh token

(Read-only properties are Access token, Refresh token, Access token expiration, OAuth2 Endpoint, OAuth2 token and Access type.)

Snap views

View Description Examples of upstream and downstream Snaps
Input An optional document to evaluate expressions in the Directory and/or File filter properties. Note that each input document will trigger the execution of the Snap.
Output A full path in each document as a value for a key "path". If multiple files match the filter, the same number of documents will be provided in the output view after each interval.
[
        {
                "path" :  "sftp://sftp.smart.com/home/voo/test1.csv"
        },
        {
                "path" :  "sftp://sftp.smart.com/home/voo/test2.csv"
        }
]
Error

Error handling is a generic way to handle errors without losing data or failing the Snap execution. You can handle the errors that the Snap might encounter when running the pipeline by choosing one of the following options from the When errors occur list under the Views tab. The available options are:

  • Stop Pipeline Execution Stops the current pipeline execution when an error occurs.
  • Discard Error Data and Continue Ignores the error, discards that record, and continues with the remaining records.
  • Route Error Data to Error View Routes the error data to an error view without stopping the Snap execution.

Learn more about Error handling in Pipelines.

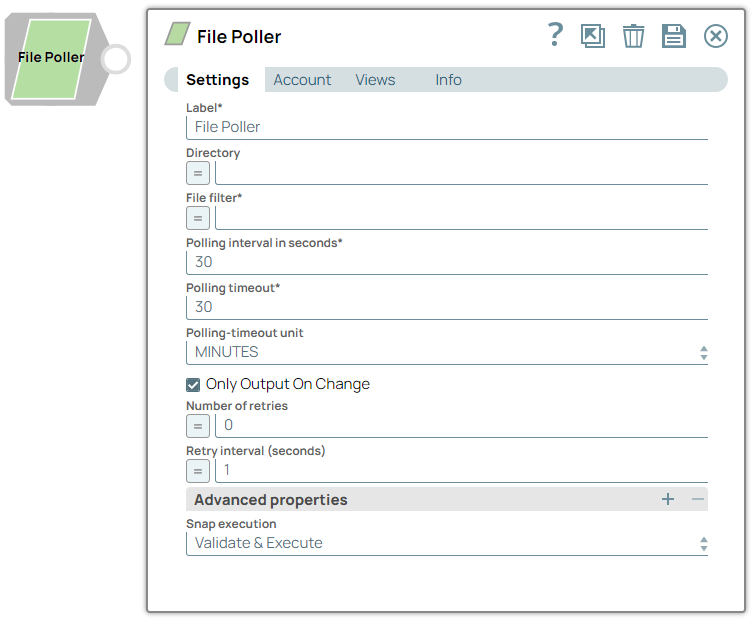

Snap settings

Legend:
  • Expression icon (): Allows using pipeline parameters to set field values dynamically (if enabled). SnapLogic Expressions are not supported. If disabled, you can provide a static value.
  • SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
  • Upload : Uploads files. Learn more.
Learn more about the icons in the Snap settings dialog.
Field / Field set Type Description
Label String

Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline.

Default value: File Poller

Example: File Poller
Directory String/Expression Specify the URL path to the directory where files will be searched in the following format:

[protocol]://[host][:port]/[path]

The supported file protocols are:
  • s3:
  • file:
  • ftp:
  • ftps:
  • sftp:
  • hdfs:
  • sldb:
  • smb:
  • wasb:
  • wasbs:
  • gs:
Note:

  • The protocol and the rest of the URL should be separated by "://". The host name and the port number should be between "://" and "/".

  • Not all file protocols support "//", use "///" instead. For example, if polling files in SLDB and S3 (see the examples shown above).

  • This property should be an absolute path for all protocols except SLDB. For SLDB, the Snap can access only the same project directory or the shared project directory, and cannot access other project directories.

  • If you want this property to refer to the SLDB project (or shared project) directory where the pipeline of this Snap belongs to, enter "sldb:///" or leave it blank.

  • If the pipeline is created in a project other than the shared project and you want this property to refer to the shared project, enter "shared" or "sldb:///shared".

  • If the port number is omitted, a default port for the protocol is used. The hostname and port number are omitted in the SLDB and S3 protocols.

  • Ensure the file name, folder name, or the file path does not contain '?' character because it is not fully supported and when present, the Snap might fail.

  • This Snap supports S3 Virtual Private Cloud (VPC) endpoint. For example, s3://my-bucket@bucket.vpce-028b7814794578709-vu0vvauy.s3.us-west-2.vpce.amazonaws.com

Default value: N/A

Example:
  • s3:///<S3_bucket_name>@s3.<region_name>.amazonaws.com/<path>

    For region names and their details, see AWS Regions and Endpoints.

  • sftp://ftp.snaplogic.com:22/home/test/dir
  • ftp://ftp.snaplogic.com/test/csv
  • $directory

  • _directory (A key-value pair with "directory" key should be defined as a pipeline parameter. Ensure that the '=' button is enabled when using parameters.)

  • file:///D:/testFolder/ (if the Snap is executed in the Windows Groundplex and needs to access the D: drive)

  • wasb:///Snaplogic/testDir/ or wasbs:///Snaplogic/testDir/

  • gs:///testBucket/testDir/

File filter String/Expression Required. Specify a GLOB pattern to be applied to select one or more files in the directory. The File filter property can be a JavaScript expression which will be evaluated with values from the input view document. [None]

Refer : Glob Pattern Interpretation Rules

Default value: N/A

Example:
  • *.txt
  • ab????xx.csv
Polling interval in seconds Integer Required. Specify the time gap between each poll request (in seconds).

Default value: 30

Example: 10
Polling timout Integer Required. Specify a period of time after which file polling must end. If the Polling timeout is set to:

  • Greater than 0, for example, 60 seconds, the polling stops after 60 seconds.

  • 0, the Snap processes only one poll.

  • -1, the Snap polls continually.

Warning: Configure this field based on the expected number of files in the target directory. If there are many files and this field's value is small, the Snap may complete the operation and stop before the file is found.

Default value: 30

Example: 20
Polling-timeout unit Dropdown list Specify a value for polling timeout.

Default value: MINUTES

Example: SECONDS
Only Output on Change Checkbox Select this check box to instruct the Snap to provide an output only when there is a change in the contents of the polled directory. When selected, the Snap provides an output during its initial run if it finds matching documents. However, it provides polling results in the next run only if the polled directory has newer files that match the pattern specified.

Default status: Selected
Number of retries Integer/Expression Specify the maximum number of retry attempts that the Snap must make in case there is a network failure, and the Snap is unable to read the target file.
Note:

If the value is larger than 0, the Snap first downloads the target file into a temporary local file. If any error occurs during the download, the Snap waits for the time specified in the Retry interval and attempts to download the file again from the beginning. When the download is successful, the Snap streams the data from the temporary file to the downstream Pipeline. All temporary local files are deleted when they are no longer needed.

Ensure that the local drive has sufficient free disk space to store the temporary local file.

Minimum value: 0

Default value: 0

Example: 3
Retry interval (seconds) Integer/Expression Specify the minimum number of seconds for which the Snap must wait before attempting recovery from a network failure.

Minimum value: 1

Default value: 1

Example: 3
Advanced properties Use this field set to define specific settings for polling files.
Properties Dropdown list Choose either of the following options:
  • SAS URI
  • Exit on first matches
Values String/Expression
  • If you choose SAS URI, specify the URI of the Shared Access Storage (SAS) you need to access. You can generate the SAS URI either from the SAS Generator Snap or from the Azure portal → Shared access signature. The supported SAS types are:
    • Service SAS on a container
    • Service SAS on blob
Warning:

  • Ensure that the URI is specified in the format described here.

  • If you provide SAS URI in this field, then:

    • the Primary access key given in the account settings is overridden during authentication. If you do not provide the SAS URI, the Snap considers the Primary access key in the account settings.

    • only this URL is used and the Snap ignores the SAS URI settings that you have configured in the associated account.

  • If you choose Exit on first matches, set this field to true to stop the Snap from executing after writing the first list of file paths that match the filter pattern to the output view. If the field is not configured or is set to false, then the Snap continues to poll the directory until the Polling timeout is reached.

Snap execution Dropdown list
Choose one of the three modes in which the Snap executes. Available options are:
  • Validate & Execute: Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime.
  • Execute only: Performs full execution of the Snap during pipeline execution without generating preview data.
  • Disabled: Disables the Snap and all Snaps that are downstream from it.

Default value: Execute only

Example: Validate & Execute

Glob Pattern Interpretation Rules

Use glob patterns in this filter to select one or more files in the directory. For example:

  • *.java Matches file names ending in .java.

  • *.* Matches file names containing a dot.

  • *.{java,class} Matches file names ending with .java or .class.

  • foo.? Matches file names starting with foo. and a single character extension.

The following rules are used to interpret glob patterns:
  • The * character matches zero or more characters of a name component without crossing directory boundaries.
  • The ? character matches exactly one character of a name component.
  • The backslash character (\) is used to escape characters that would otherwise be interpreted as special characters. For example, the expression \\ matches a single backslash, and "\{" matches a left brace.
  • The ! character is used to exclude matching files from the output.
  • The [ ] characters are a bracket expression that match a single character of a name component out of a set of characters. For example, [abc] matches 'a', 'b', or 'c'. The hyphen (-) may be used to specify a range; so, [a-z] specifies a range that matches from 'a' to 'z' (inclusive). These forms can be mixed; so, [abce-g] matches 'a'", 'b', 'c', 'e', 'f' or 'g'. If the character after the '[' is an '!', then it is used for negation; so, [!a-c] matches any character except 'a', 'b', or 'c'.
  • Within a bracket expression, the *, ?, and \ characters match themselves. The (-) character matches itself if it is the first character within the brackets, or the first character after the '!', if negating.
  • The { } characters are a group of subpatterns, where the group matches if any subpattern in the group matches. The ',' character is used to separate subpatterns. Groups cannot be nested.
  • Leading period / dot characters in file names are treated as regular characters in match operations. For example, the '*' glob pattern matches file name '.login'.
  • Some special characters are not supported. A partial list of unsupported special characters: #, ^, â, ê, î, ç, ¿, SPACE.

Troubleshooting

Error Reason Resolution
Algorithm negotiation fail: algorithmName="server_host_key" jschProposal="<algorithms>" serverProposal="ssh-rsa" The library that we use for SFTP connections no longer supports deprecated signature protocols by default. This changed with the 4.33 GA release. Add the algorithm to the serverProposal in the global properties.You can also enable support for RSA-SHA1 authentication in the Node Properties tab on the Updating a Snaplex dialog in SnapLogic Manager.
  1. In the Node Properties tab of your target Snaplex, add the following Key Value pair under Global Properties:

    Key: jcc.jvm_options

    Value: -Djsch.server_host_key=ssh-rsa -Djsch.client_pubkey=ssh-rsa

  2. Click Update, and then restart the Snaplex node.

Learn more: Configuration Options
com.amazonaws.AbortedException - Cannot access AWS S3 service If you have set the Polling Timeout value to a few seconds, it results in the S3 request getting canceled.

Increase the value of Polling Timeout (in seconds) for the Snap to work successfully.

We recommend that you set the Polling Timeout value to the default value of 30 minutes or more to fetch all the data from S3.

Examples
