Databricks - Execute

Overview

You can use this Snap to run one Databricks SQL statement at a time on your target Databricks Lakehouse Platform (DLP) instance. This Snap allows you to execute SQL statements in parallel by leveraging the Batch size configured in the Databricks Account . You can run the following types of queries using this Snap:

  • Data Definition Language (DDL) queries

  • Data Manipulation Language (DML) queries

  • Data Control Language (DCL) queries

Note: This Snap works only with single queries.

The Snap runs each statement as a single atomic unit to allow rolling back changes when a statement fails during execution.



Prerequisites

  • Valid access credentials to a DLP instance with adequate access permissions to perform the action in context.
  • Valid access to the external source data in one of the following: Azure Blob Storage, ADLS Gen2, DBFS, GCP, AWS S3, or another database (JDBC-compatible).

Limitations

  • Because the Databricks JDBC driver does not return a result set for Data Definition Language (DDL) statements such as DROP, CREATE, and ALTER, the Snap displays a standard message:
    SQL statement executed successfully but did not produce any result set.

Snap views

View Description Examples of upstream and downstream Snaps
Input Input document is not mandatory. The Snap can fetch and apply values for parameterized queries from an upstream Snap output.
Output A JSON document containing each SQL statement along with its execution status (or result).
Error

Error handling is a generic way to handle errors without losing data or failing the Snap execution. You can handle the errors that the Snap might encounter when running the pipeline by choosing one of the following options from the When errors occur list under the Views tab. The available options are:

  • Stop Pipeline Execution Stops the current pipeline execution when an error occurs.
  • Discard Error Data and Continue Ignores the error, discards that record, and continues with the remaining records.
  • Route Error Data to Error View Routes the error data to an error view without stopping the Snap execution.

Learn more about Error handling in Pipelines.

Snap settings

Legend:
  • Expression icon (): Allows using pipeline parameters to set field values dynamically (if enabled). SnapLogic Expressions are not supported. If disabled, you can provide a static value.
  • SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
  • Upload : Uploads files. Learn more.
Learn more about the icons in the Snap settings dialog.

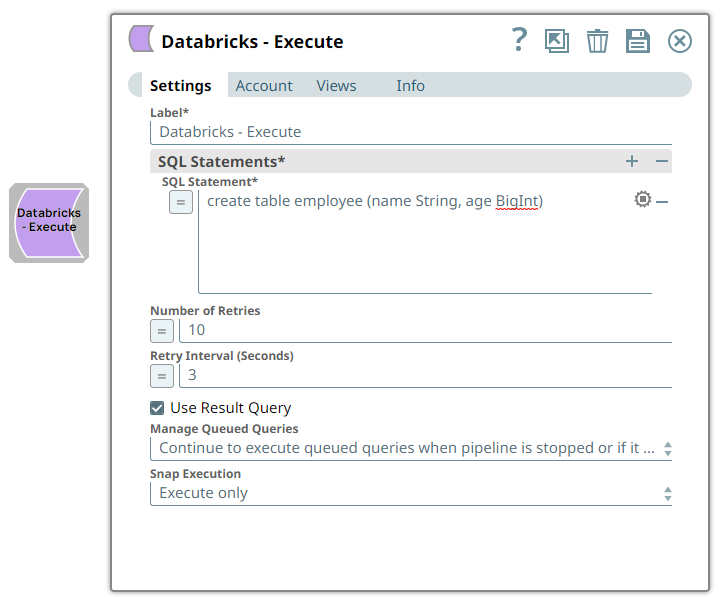

Field / Field set Type Description
Label String

Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline.

Default value: Databricks - Execute

Example: Db_MultiQuery
SQL statement String/Expression Required. Specify the Databricks SQL statement you want the Snap to execute. We recommend you to add a single query in the SQL Statement field. The SQL statement must follow the SQL syntax as stipulated in DLP.

Default value: None.

Example: create table employee (name String, age BigInt)
Query type Dropdown list/Expression Select the type of the SQL query (statement) provided above. It can be Read, Write, or Auto.
  • Read. Indicates the SQL statement provided is a read-type query.
  • Write. Indicates the SQL statement provided is a write-type query.
  • Auto. Indicates that the Snap can automatically decipher the query type by reading the query.

Default value: Auto

Example: Write
Ignore empty result Checkbox Select this checkbox to ignore empty results from the Snap's output.

Default status: Deselected
Number of Retries Integer/Expression Specify the maximum number of retry attempts the Snap must make in case of network failure.
When you set the Number of retries to more than 0, the Snap generates duplicate records when the connection is not established. To prevent duplicate records, we recommend that you follow one of the following:

  • Set the Number of retries to 0 (default value) to prevent duplicate records from being passed downstream while executing a pipeline.

  • Use a Primary key to prevent records from being inserted into the database.

  • Use an Upsert instead of an Insert statement.

Default value: 0

Example: 3

Minimum value: 0
Retry Interval (Seconds) Integer/Expression Specify the minimum number of seconds the Snap must wait before each retry attempt.

Default value: 1

Example: 3

Minimum value: 1
Use Result Query Checkbox Select this checkbox to write the SQL statement execution result to the Snap's output view for each successful execution. The output of the Snap is enclosed in the key ResultQuery, and the value will be the actual output produced by the SQL statement. The example Pipeline below depicts the difference between the output previews when this checkbox is selected and when it is not.

This option allows you to effectively track the SQL statement's execution by clearly indicating the successful execution and the number of records affected, if any, after the execution.

Default status: Deselected
Manage Queued Queries Dropdown list Select either of the following options from the dropdown list to handle queued SQL queries:

  • Continue to execute queued queries when pipeline is stopped or if it fails: Continues the execution of the queued Databricks SQL queries when you stop the Pipeline.

  • Cancel queued queries when pipeline is stopped or if it fails: Cancels the execution of the queued Databricks SQL queries when you stop the Pipeline

Note: If you select Cancel queued queries when pipeline is stopped or if it fails, then the read queries under execution are cancelled, whereas the write type of queries under execution are not cancelled. Databricks internally determines which queries are safe to be cancelled and cancels those queries.
Warning: Due to an issue with DLP, aborting an ELT Pipeline validation (with preview data enabled) causes only those SQL statements that retrieve data using bind parameters to get aborted while all other static statements (that use values instead of bind parameters) persist.

  • For example, select * from a_table where id = 10 will not be aborted while select * from test where id = ? gets aborted.

To avoid this issue, ensure that you always configure your Snap settings to use bind parameters inside its SQL queries.

Default value: Continue to execute queued queries when pipeline is stopped or if it fails.

Example: Cancel queued queries when pipeline is stopped or if it fails
Snap execution Dropdown list
Choose one of the three modes in which the Snap executes. Available options are:
  • Validate & Execute: Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime.
  • Execute only: Performs full execution of the Snap during pipeline execution without generating preview data.
  • Disabled: Disables the Snap and all Snaps that are downstream from it.

Default value: Execute only

Example: Validate & Execute

Examples
