Avro Formatter

Overview

You can use this Snap to serialize the incoming SnapLogic document objects into Avro-formatted data.



Snap views

View Description Examples of upstream and downstream Snaps
Input This Snap exposes the avsc schema in its input view. You must use a Mapper Snap in front of this Snap to map the fields present in .avsc schema file.
Output Any serialized binary stream output processing Snap that contains data and its schema.
Error

Error handling is a generic way to handle errors without losing data or failing the Snap execution. You can handle the errors that the Snap might encounter when running the pipeline by choosing one of the following options from the When errors occur list under the Views tab. The available options are:

  • Stop Pipeline Execution Stops the current pipeline execution when an error occurs.
  • Discard Error Data and Continue Ignores the error, discards that record, and continues with the remaining records.
  • Route Error Data to Error View Routes the error data to an error view without stopping the Snap execution.

Learn more about Error handling in Pipelines.

Snap settings

Legend:
  • Expression icon (): Allows using pipeline parameters to set field values dynamically (if enabled). SnapLogic Expressions are not supported. If disabled, you can provide a static value.
  • SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
  • Upload : Uploads files. Learn more.
Learn more about the icons in the Snap settings dialog.

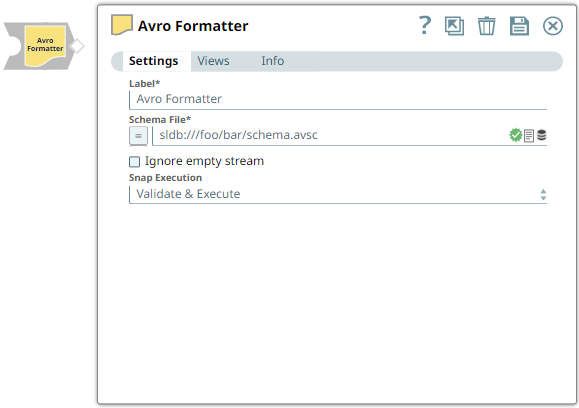

Field / Field set Type Description
Label String

Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline.

Default value: Avro Formatter

Example: Avro_Formatter
Schema file String/Expression

Required. Specify the path to the schema file in .avsc format.

Default value: None.

Example: sldb:///foo/bar/schema.avsc
Ignore empty stream Checkbox

Select the checkbox to specify an action that the Snap must take if the input view contains empty documents. If selected, the Snap does not write anything to the output if no documents are received in the input. Else, the Snap writes an empty array in the output view if no documents are received in the input view.

Default status: Deselected
Snap execution Dropdown list
Choose one of the three modes in which the Snap executes. Available options are:
  • Validate & Execute: Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime.
  • Execute only: Performs full execution of the Snap during pipeline execution without generating preview data.
  • Disabled: Disables the Snap and all Snaps that are downstream from it.

Default value: Validate and Execute

Example: Disabled

Examples
