WorkdayQL

Overview

The WorkdayQL Snap connects with Workday Query Language (WQL) endpoints to retrieve data from the Workday system programmatically.

WQL is a query language used in the Workday system for retrieving data. WQL endpoints refer to the specific API endpoints that enable you to execute WQL queries against the Workday system.



Prerequisites

To make WQL API calls, you need:

  • Access to the Workday Query Language security domain.
  • To create an API client or repurpose an existing one.

Limitations

  • When you provide valid data in searchString for /datasources/{ID}/dataSourceFilters in the OpenAPI path field, the Snap does not provide output.

Known Issues

None.

Snap views

Type Description Examples of upstream and downstream Snaps
Input

This Snap has at most one document input view.

The OpenAPI path, operation, and query parameters of the endpoint.
Output

This Snap has exactly one document output view.

The data fetched from the WQL endpoint.
  • Workday Delete
  • Copy
Learn more about Error handling.

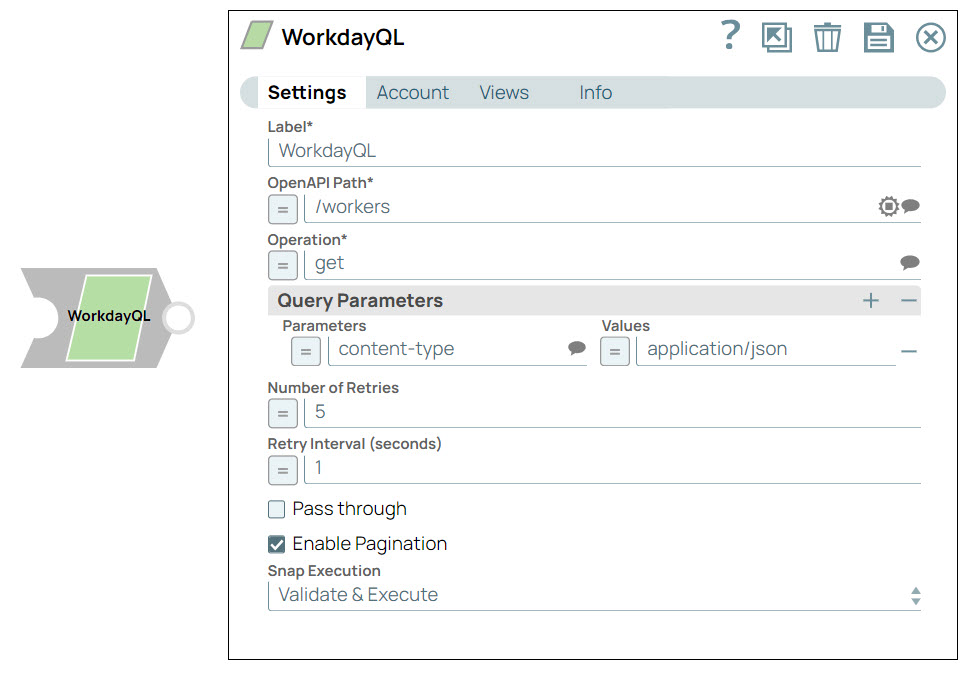

Snap settings

Legend:
  • Expression icon (): Allows using pipeline parameters to set field values dynamically (if enabled). SnapLogic Expressions are not supported. If disabled, you can provide a static value.
  • SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
  • Upload : Uploads files. Learn more.
Learn more about the icons in the Snap settings dialog.
Field/Field set Description
Label

String

Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline.

Default value: WorkdayQL

Example: Workday QL Snap
OpenAPI Path

String/Expression/ Suggestion		 Required. Enter the path for the REST endpoint. Based on the service and version, the Snap downloads the open API specification and populates the list.

Default value: N/A

Example: /data
Operation

String/Expression/ Suggestion		 Required. Specify the operation to perform on the selected OpenAPI path or select from the suggestions list. The available options are:
  • GET: Reads and retrieves content and data.
  • POST: Reads and retrieves content and data for large query.

Default value: N/A

Example: get
Query

String		 Appears when you select /data in the OpenAPI Path.

Specify an encoded query string to filter the records.

Default value: N/A

Example: SELECT worker FROM allWorkers
Limit

Integer		 Appears only when you select /data in OpenAPI Path and GET in Operation.

Specify the number of rows to return from the query.

Default value: N/A

Example: 10
Offset

Integer		 Appears only when you select /data in OpenAPI Path and GET in Operation.

Specify the offset for the limit clause.

Default value: N/A

Example: 5
Query Parameters

Fieldset		 Use this fieldset to define the name and value for query parameters on request.
Parameters

String/Expression		 Appears when you select /data in the OpenAPI Path.

Specify the name of the query parameter for retrieving assets.

Default value: N/A

Example: alias
Values

String		 Appears when you select /data in the OpenAPI Path.

Specify the value for the query parameter for retrieving assets.

Default value: N/A

Example: cds_FTPUI
Number of Retries

Integer		 Specify the number of attempts the Snap should make to perform the selected operation in case of connection failure or timeout.

Minimum value: 0

Default value: 0

Example: 3
Retry Interval (seconds)

Integer		 Specify the time interval in seconds between retry attempts.

Minimum value: 1

Default value: 1

Example: 3
Enable Pagination

Checkbox		 Select this checkbox to enable the Snap to return the response in multiple pages when the input document contains the query parameters.

When you deselect this checkbox, the Snap limits the number of output documents to 100, with only one page of records.

The maximum limit value of the page size is 100—the Snap fetches all records until the last page with 100 records on each page.

Default value: Selected
Snap execution

Dropdown list
Choose one of the three modes in which the Snap executes. Available options are:
  • Validate & Execute. Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime.
  • Execute only. Performs full execution of the Snap during pipeline execution without generating preview data.
  • Disabled. Disables the Snap and all Snaps that are downstream from it.

Video

Watch the video to learn how to execute a query in the WorkdayQL Snap using the Workday REST OAuth2 Account.

Configure Workday OAuth2 Account and Use WorkdayQL Snap

Troubleshooting

Error Cause Resolution
403 Error: Unauthorized user. The permissions are insufficient. Ensure that you assign the required permissions and retry.
"statusCode": 500 "statusPhrase": "Internal Server Error" "protoVersion": "HTTP/1.1" Offset is greater than or equal to total row size. When the offset value provided in the Snap is greater than number of the existing records, then the Snap fails. Provide an offset value lesser than the number of records.
