MySQL Dynamic Account

Overview

Use this account type to connect MySQL Snaps with datasources that use MySQL Dynamic accounts. This account deals with the dynamically calculated values. You can specify the account properties as expressions referencing pipeline parameters. The values for dynamic accounts are not stored; hence, use them when requested.

Expression-enabled authentication fields, such as Username, Password, and Client Secret, support Secrets Management, a SnapLogic add-on that allows you to store endpoint credentials in a third-party secrets manager, such as AWS Secrets Manager, Azure Key Vault, or HashiCorp Vault. During validation and execution, pipelines obtain the credentials directly from the secrets manager. Learn more: Configure Accounts to use secrets.



Prerequisites

To ensure compatibility, we recommend that you use matching versions of MySQL driver and MySQL server for configuring your account. For example, when using server version 8.0.22, ensure that the driver version is also 8.0.22. For details, see the official MySQL article on version compatibility.

Known Issues

  • When using MariaDB JDBC driver version 2.7.2 or lower, providing username and password as JDBC URL parameters does not function as expected. To use this feature, use a MariaDB JDBC driver version of at least 2.7.3.
  • When using MariaDB JDBC driver, tables using spatial data types may not function as expected.

    Workaround: Use the MySQL JDBC driver or limit spatial data type usage to the GEOMETRY type instead of more specific spatial data types.

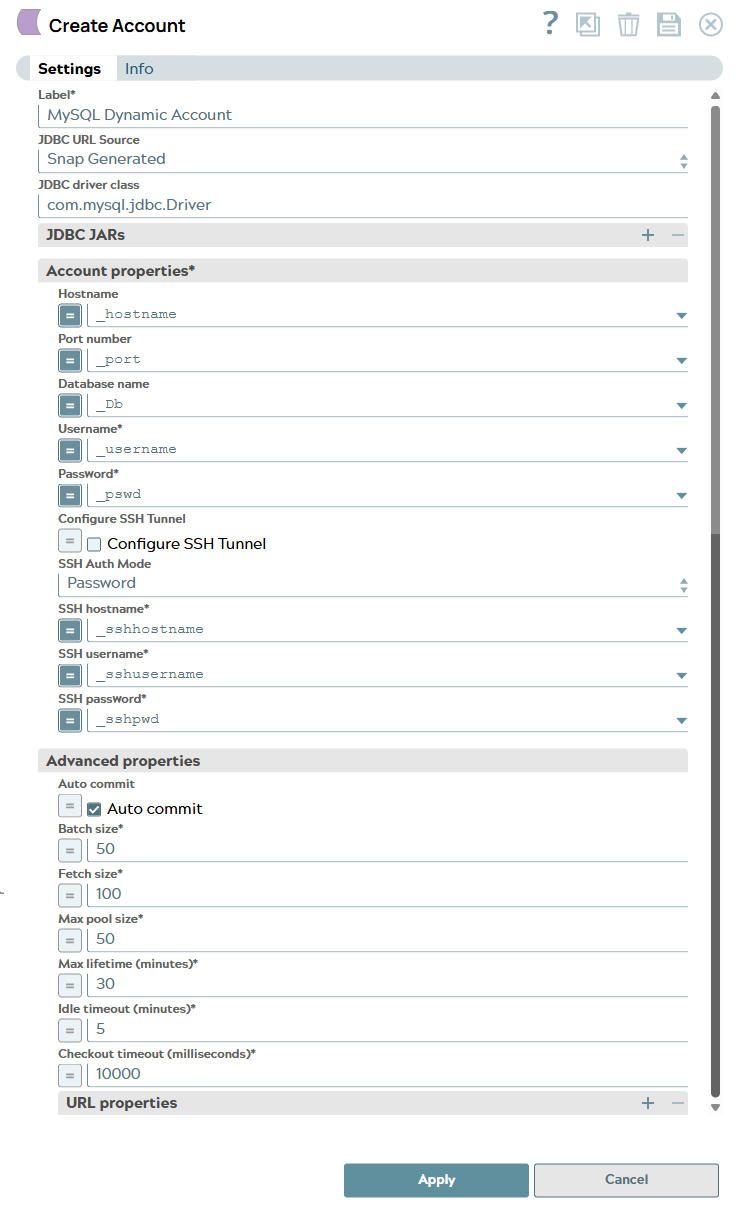

Account Settings

Field/Field set Description
Label*

String		 Required. The user-provided name for the account. Preferably, update the account name if your project includes more than one account of the same type.

Default value: N/A

Example: MySQL_DynamicAccount
JDBC URL Source

String		 Select the source of the JDBC URL.
  • Snap Generated: The JDBC URL that SnapLogic generates using the details you provide in the Account Settings dialog. If you choose this option, the Host Name, Port Number, and Database Name fields are displayed.
  • User Provided: Allows you to specify custom JDBC URLs. When you choose this option the Custom JDBC URL field appears.
Important: jdbc:mysql scheme compatibility with MariaDB driver 3.0.0+

To use MariaDB JDBC driver version 3.0 or above, you must select User Provided as the JDBC URL source and provide a Custom JDBC URL that uses the jdbc:mariadb: protocol.

This Snap Pack does not support MariaDB driver version 3.x when using either Snap generated JDBC URLs or Custom JDBC URLs using the jdbc:mysql: protocol.

Default value: Snap Generated

Example: User Provided
JDBC driver class

String		 The class name of the JBDC driver.

Default value: N/A

Example: com.mysql.jdbc.Driver
JDBC JARs

Dropdown list		 List of JDBC JAR files to be loaded.

If you do not add any JDBC JARs, a default JDBC JAR file is loaded. The default JAR file does not support connectivity to MYSQL8. To connect to MYSQL8, you must upload JAR mysql-connector-java (v5.1.47 or v8).

Default value: N/A

Example:
JDBC driver

String		 Upload the JDBC driver and other JAR files that you want to use into SLDB. Click to add a new row. Add each JDBC JAR file in a separate row. For more information about JDBC drivers and downloading the appropriate driver for your account, see Downloading the JDBC Driver.

When you use the relative path for the JDBC JAR file in accounts across different projects, the pipelines fail with the JAR FILE NOT FOUND error. Therefore, you must use the absolute path for the JDBC JAR file to run your pipelines successfully.

Default value: N/A

Example: Project Spaces/my_diagnostic_space/my_diagnostic /sqljdbc4-2.0.jar
Account properties

Fieldset		 Required. Use this field set to specify the account properties required to connect to the database.
Hostname

String/Expression		 Required. Appears when the JDBC URL Source is Snap Generated.

Specify the server address to which the application must connect.

Default value: N/A

Example: _hostname
Port number

Integer/Expression		 Required. Appears when the JDBC URL Source is Snap Generated.

Specify the database server's port number to which the application must connect.

Default value: 3306

Example: _port
Database name

String/Expression		 Required. Appears when the JDBC URL Source is Snap Generated.

Specify the database name to which the application must connect.

Default value: N/A

Example: _database
Username

String/Expression		 Required. Appears when the JDBC URL Source is Snap Generated.

Specify the user name that is allowed to connect to the database. It is used as the default user name when retrieving connections. The user name must be valid in order to set up the data source.

Default value: N/A

Example: _username
Password

String/Expression		 Required. Appears when the JDBC URL Source is Snap Generated.

Specify the password used to connect to the data source. It is used as the default password when retrieving connections. The password must be valid in order to set up the data source.

Default value: N/A

Example: _password
Custom JDBC URL

String		 Appears when the JDBC URL Source is User Provided.

Specify the JDBC URLs that you want to use to connect to your MySQL Account.

Use this option if you want to use complex JDBC URLs (involving multiple hosts and advanced options) to connect to your MySQL instance. For example, if you want to connect to MariaDB, you can enter a JDBC URL like the one below:

jdbc:mariadb://test1sp007.hq.xyz.com:6519,test1sp007.hq.company.com:6519/example

Default value: N/A

Example: jdbc:mariadb://a.com:3306,b.com:3306/db
Configure SSH Tunnel

Checkbox/Expression		 Select this checkbox if the Snap must create an SSH tunnel dynamically for connecting the JCC node to the MySQL server. Once the operation is completed, the tunnel is closed.

If selected, the configuration details of the SSH Tunnel must be provided.

Default status: Deselected
SSH Auth Mode

Dropdown list		 Select the mode for authenticating the user on the SSH tunnel. The associated properties are displayed.

The valid options are:

  • Password: If selected, the SSH Hostname, SSH Username, and the SSH Password properties must be configured.
  • KeyFile: If selected, the SSH Hostname, SSH Username, KeyStore, KeyStore Password, Key alias, and Private Key Passphrase properties must be configured.

This value is considered only if the Configure SSH Tunnel check box is selected.

Default value: Password

Example: Password
SSH hostname

String/Expression		 Required. Specify the IP address or the domain name of the SSH server to which you want to connect.

This value is considered only if the Configure SSH Tunnel check box is selected.

Default value: N/A

Example: _sshhostname
SSH username

String/Expression		 Required. Specify the SSH username for connecting to the tunnel.

This value is considered only if the Configure SSH Tunnel check box is selected.

Default value: N/A

Example: _sshusername
SSH password

String/Expression		 Required. Specify the password associated with the SSH username. This field is required if SSH Auth Mode is Password.

This value is considered only if the Configure SSH Tunnel check box is selected.

Default value: N/A

Example: _sshuserpassword
KeyStore

String/Expression		 Specify the location of the keystore file. This field is required if SSH Auth Mode is KeyFile.

The file can be in SLDB, on the host machine that is hosting the JCC, or at any other remote location. For a local file, click to select the appropriate file using the file browser. You can also upload the file using any protocol such as https, ftp, sldb, and sftp.

This value is considered only if the Configure SSH Tunnel check box is selected.

Default value: N/A

Example: _keystorepath
KeyStore password

String/Expression		 Specify the password to access the keystore file. This field is required if the SSH Auth Mode is KeyFile.

This value is considered only if the Configure SSH Tunnel check box is selected.

Default value: N/A

Example: _keystorepassword
Key alias

String/Expression		 Specify the identifier or label of the private key to be used from the keystore. This field is required if SSH Auth Mode is KeyFile.

This value is considered only if the Configure SSH Tunnel check box is selected.

Default value: N/A

Example: _keyalias
Private key passphrase

String/Expression		 Specify the password associated with the private key. If no value is provided, the keystore password is used.

This value is considered only if the Configure SSH Tunnel check box is selected.

Default value: N/A

Example:
Advanced properties

Fieldset		 Use this field set to set advanced properties required for connecting to the database.
Auto commit

Checkbox/Expression		 Select this checkbox to auto-commit batches immediately after it is executed. If the Snap fails, only the batch being executed at that moment is rolled back.

Deselect this checkbox to commit only after all the batches are executed.

If the Snap fails, the entire transaction is rolled back, unless the Snap finds invalid input data before it sends the insert request to the server, and routes the error documents to the Error view.

Default status: Selected
Batch size

Integer/Expression		 Required. Specify the batch size to indicate the number of SQL statements to execute in a single batch. For example, when inserting 100 records with batch size as 40, there will be 100 insert statements, and they are executed in 3 batches, the first and second batches contain 40 insert statements each and the third batch contains 20.
  • If the Batch Size is one, the query is executed as-is, that is the Snap skips the batch (non-batch execution).

  • If the Batch Size is greater than one, the Snap performs the regular batch execution.

Note:

Select queries are not batched. It is part of the JDBC standard, there is no maximum limit on the batch size. However, the JDBC drivers do not necessarily follow the standard and could throw exceptions if the batch size is too large for a specific driver. Reduce the batch size if you see an exception saying that the batch size is too large.

Warning:

Using a large batch size could use up the JDBC placeholder limit of 2100. If the batch size is too large, sending a single batch request to the database server can take too long and it would time out. You should test and monitor the performance with different batch sizes and decide the best batch size.

Default value: 50

Example: 50
Fetch size

Integer/Expression		 Required. Specify the number of rows to fetch at a time when executing a query.

Large values could cause the server to run out of memory.

Default value: 100

Example: 100
Max pool size

Integer/Expression		 Required. Specify the maximum number of concurrent connections a pool maintains at a time. The number of max pool size depends on the number of concurrent connections you need. Each MySQL Snap holds a separate connection when running. For a pipeline that has 4 MySQL Insert, 2 MySQL Execute, and 1 MySQL Update Snaps, the max pool size should be no less than 7 to make sure that the pipeline is executed successfully.

Default value: 50

Example: 50
Max lifetime (minutes)

Integer/Expression		 Required. Specify the maximum time (in minutes) of a connection in the pool. Ensure that the value you enter is a few seconds shorter than any database or infrastructure-imposed connection time limit. A value of 0 indicates an infinite lifetime, subject to the Idle Timeout value. An in-use connection is never retired. Connections are removed only after they are closed.

Default value: 30

Example: 30
Idle timeout (minutes)

Integer/Expression		 Required. Specify the maximum time (in seconds) a connection is allowed to remain idle in the pool. A value of 0 indicates that idle connections are never removed from the pool.

Default value: 5

Example: 5
Checkout timeout (milliseconds)

Integer/Expression		 Required. Specify the number of milliseconds to wait for a connection to be available when the pool is exhausted.
Note:

If you provide 0, the Snap waits infinitely until the connection is available. Therefore, we recommend you not to specify 0 for Checkout Timeout.

Default value: 10000

Example: 10000
URL properties

Fieldset		 Use this field set to define the URL properties.

You can define the time zone values in this field set. The server time zone is important to convert date and time values stored in the database to the time zone set in the application server. You must configure either the database server or JDBC driver (by passing the serverTimeZone in the Url property name field) to use a specific time zone value for time zone support.

The Connector/J8.0 performs time offset adjustments on date-time values; however, the adjustments require either of the following conditions to be true:

  • MySQL server must be configured with a canonical time zone that is recognizable by Java (for example, Europe/Paris and UTC.)
  • Connector/J connection property serverTimezone must be set (for example, serverTimezone=America/New York) to override the server's time zone.

Default value: N/A

Example:
URL property name

String/Expression		 Specify the name of the URL property name.

Default value: N/A

Example: zeroDateTimeBehavior
URL property value

String/Expression		 Specify the value for the URL property defined above.

Default value: N/A

Example: convertToNull
