SQL Server Table List

You can use this Snap to output a list of tables in a database. The Snap will connect to the database, read its metadata, and output a document for each table found in the database. The table names are output in a topological order so that tables with the fewest dependencies are output first. In other words, if table A has a foreign key reference to table B, then table B will be output before A. The ordering is intended to ease the process of replicating a group of tables from one database to another.

This Snap supports SQL Server 2008 or a higher version.



  • name - The fully-qualified name of the table. To use the table name in another Snap, like a Select or Insert, you can pass it through a ForEach Snap to another pipeline with the Select or Insert.
  • type - The type of table. This value is currently fixed to the string "TABLE".
  • dependents - (If Compute table graph is selected) A list of table names that have references to this table, including this table.

Replicating a Subset of Tables

The output of the Table List Snap can be directly used to replicate an entire database. However, if you are only interested in a subset of tables, you can use a Filter Snap to select the table names you are interested in as well as the tables that they reference. For example, given the following diamond-shaped table graph where A depends on B and C and they both depend on D:

       A
      / \
     B   C
      \ /
       D

The Table List will output the following documents:

name=D; dependents=[A, B, C, D]
name=C; dependents=[A, C]
name=B; dependents=[A, B]
name=A; dependents=[A]

So, if you wanted to copy just table 'A' and its dependencies, you can add a Filter Snap with the following expression:

 $.dependents.indexOf('A') != -1

The filter will then remove any extra tables that happen to be in the schema.

Supported Accounts

  • This is a Read-type Snap.

Snap Type

SQL Server - Table List Snap is a Read-type Snap that lists the tables in a database

Support for Ultra Pipelines

Works in Ultra pipelines.

Snap views

Type Description Examples of upstream and downstream Snaps
Input

This Snap has at most one input view.

  • Min: 0
  • Max: 1
  • Mapper Snap
Output

This Snap has at most one output view.

  • Min: 1
  • Max: 1
  • Join Snap
Learn more about Error handling.

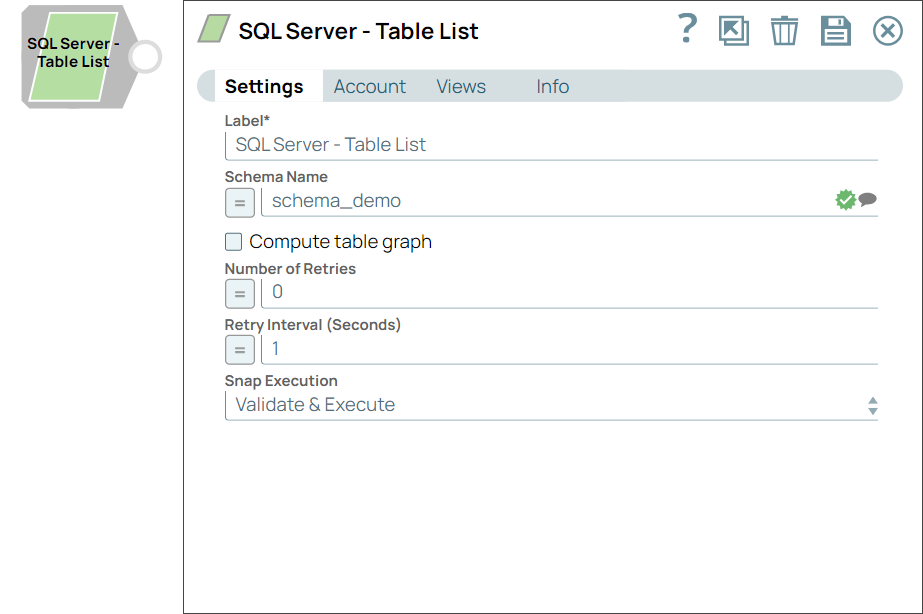

Snap settings

Note: Learn about the common controls in the Snap settings dialog.
Field/Field set Description

Label

String 		Required.Specify a unique name for the Snap. Modify this to be more appropriate, especially if there are more than one of the same Snap in the pipeline.

Default value: SQL Server - Table List
Schema Name

String/Expression

Specify the database schema name. Selecting a schema filters the Table name list to show only those tables within the selected schema. The property is suggestible and will retrieve available database schemas during suggest values.

Default value: N/A

Example: schema_demo
Compute table graph

Checkbox

Specify the dependents among tables and returns each table with a list of tables it has foreign key references to. The ordering of outputted tables is from least dependent to most-dependent. Note that as turning on this option will significantly slow down the Snap, it should be left as off unless you need it.

Default status: Deselected
Number of retries

Integer/Expression

Specify the maximum number of attempts to be made to receive a response. The request is terminated if the attempts do not result in a response.

Default value: 0

Example: 3
Retry interval (seconds)

Integer/Expression

Specify the time interval between two successive retry requests. A retry happens only when the previous attempt resulted in an exception.

Default value: 1

Example: 10
Snap Execution

Dropdown list

Select one of the following three modes in which the Snap executes:

  • Validate & Execute: Performs limited execution of the Snap, and generates a data preview during Pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during Pipeline runtime.
  • Execute only: Performs full execution of the Snap during Pipeline execution without generating preview data.
  • Disabled: Disables the Snap and all Snaps that are downstream from it.

Default value: Validate & Execute

Example: Execute only
