Release object and revise it

This example pipeline demonstrates how to create an object, set its release status, and then revise it.

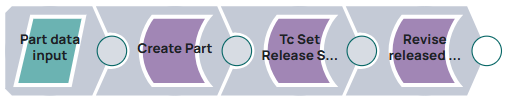

Pipeline sonsisting of JSON Generator Snap, Tc Create Snap, Tc Set Release Status Snap and Tc Revise Snap.

Steps

1: Input for the creation is stored in JSON Generator. The stored JSON document contains data necessary for creating a Part.

Snap configuration

Snap output

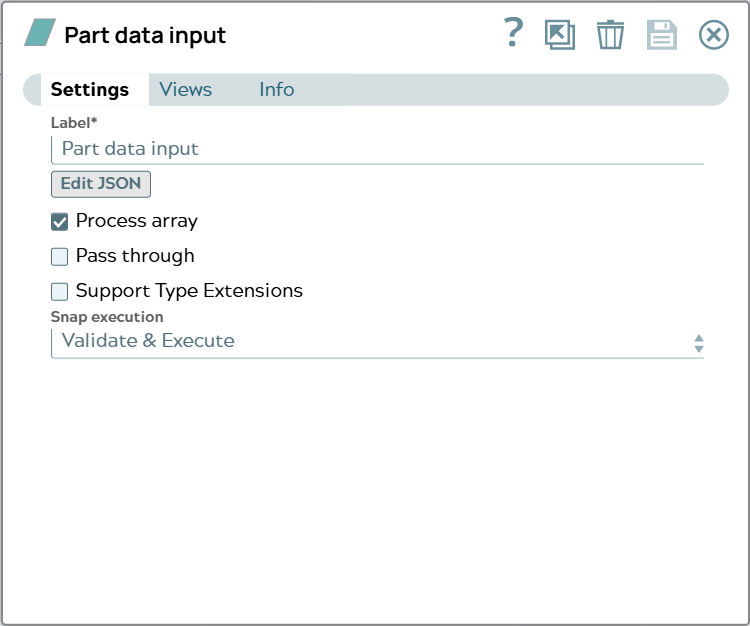

Settings tab of JSON Generator Snap.

[
  {
    "object_type": "Part",
    "attributes": {
		"object_desc": "Test Revise with Snap",
		"object_name": "Test 0204261 Save"
	},
	"expand": [
		"object_type",
		"object_string",
		"object_name",
		"object_desc",
		"item_id",
		"item_revision_id",
		"creation_date",
		"release_status_list",
		"release_statuses",
		"last_release_status"
	]
  }
]

2 In the snap configuration following values has to fed into fields of the Tc Create Snap:

  • $object_type to field Object Type
  • $attributes to field Object Attributes Path
  • $expand to field Expand Attributes Path

Snap configuration

Snap output

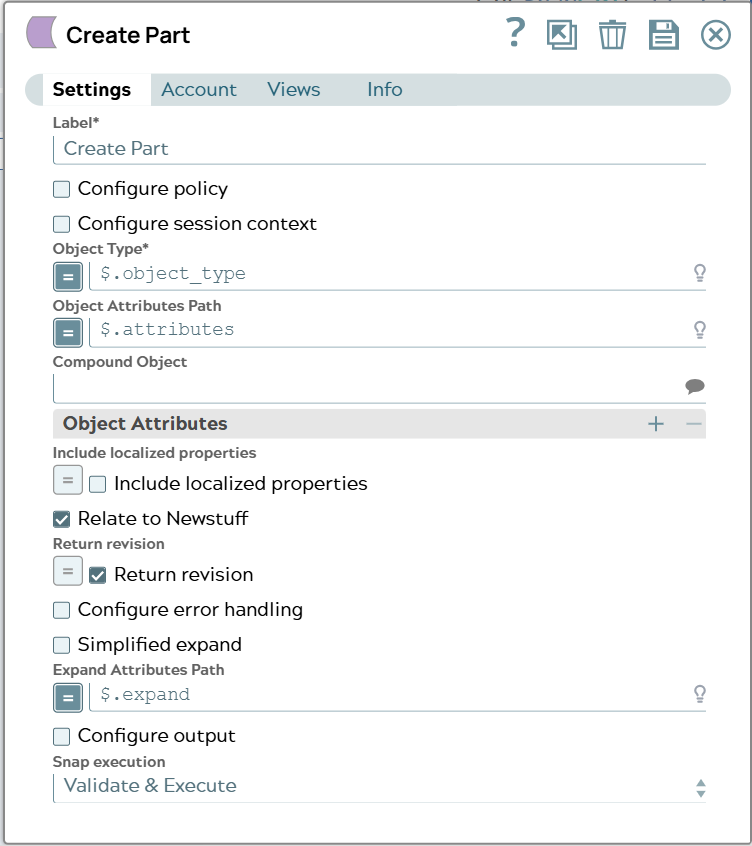

Settings tab of Tc Create Snap.

[
  {
    "_id": "TC*Part Revision*null***AWPAANc57hAnmD",
    "creation_date": "2026-04-02T07:35:17Z",
    "item_id": "052857",
    "item_revision_id": "A",
    "last_release_status": null,
    "last_release_status_DISPLAY": "",
    "object_desc": "Test Revise with Snap",
    "object_name": "Test 0204261 Save",
    "object_string": "052857/A;1-Test 0204261 Save",
    "object_type": "Part Revision",
    "object_type_DISPLAY": "Part Revision",
    "release_status_list": [],
    "release_statuses": [],
    "UID": "AWPAANc57hAnmD",
    "original": {
      "object_type": "Part",
      "attributes": {
        "object_desc": "Test Revise with Snap",
        "object_name": "Test 0204261 Save"
      },
      "expand": [
        "object_type",
        "object_string",
        "object_name",
        "object_desc",
        "item_id",
        "item_revision_id",
        "creation_date",
        "release_status_list",
        "release_statuses",
        "last_release_status"
      ]
    }
  }
]

Output document contains data of newly created object. Values of attributes *release_status* are empty.

3: The resulting object includes ID information which can be used as Object ID in Tc Set Release Status Snap next.

Note:

UIDs in Teamcenter are as the name says UNIQUE. The UIDs in the example only exist in our Teamcenter system as expected for our example. Same is valid for Adapter ID "_id" since its base is the UID.

Snap configuration

Snap output


Settings tab of Tc SaveAs Snap. Field for 'Object ID' uses value from input document, Mode is 'Add' and Release Status 'LCM Released'. Expand Attributes contain some attributes relevant for status information.

[
  {
    "_id": "TC*Part Revision*null***AWPAANc57hAnmD",
    "last_release_status": "TC*ReleaseStatus*null***wCLAANc57hAnmD",
    "last_release_status_DISPLAY": "LCM Released",
    "release_status_list": [
      "TC*ReleaseStatus*null***wCLAANc57hAnmD"
    ],
    "release_statuses": [
      "TC*ReleaseStatus*null***wCLAANc57hAnmD"
    ],
    "UID": "AWPAANc57hAnmD",
    "original": {
      ##...
    }
  }
]

The output JSON document provides an example output from Set Release Status execution for a Part in Teamcenter OOTB data model. The Status change is recognizable in values for *release_status*.

Now the released object can be revised with the Tc Revise Snap.

4: Output of Tc Set Release Status Snap is input document for Tc Revise Snap.

In the snap configuration following values has to fed into fields:

  • $_id to Object ID
  • $original.original.expand to Expand Attributes Path
Note:

UIDs in Teamcenter are as the name says UNIQUE. The UIDs in the example only exist in our Teamcenter system as expected for our example. Same is valid for Adapter ID "_id" since its base is the UID.

Snap configuration

Snap output

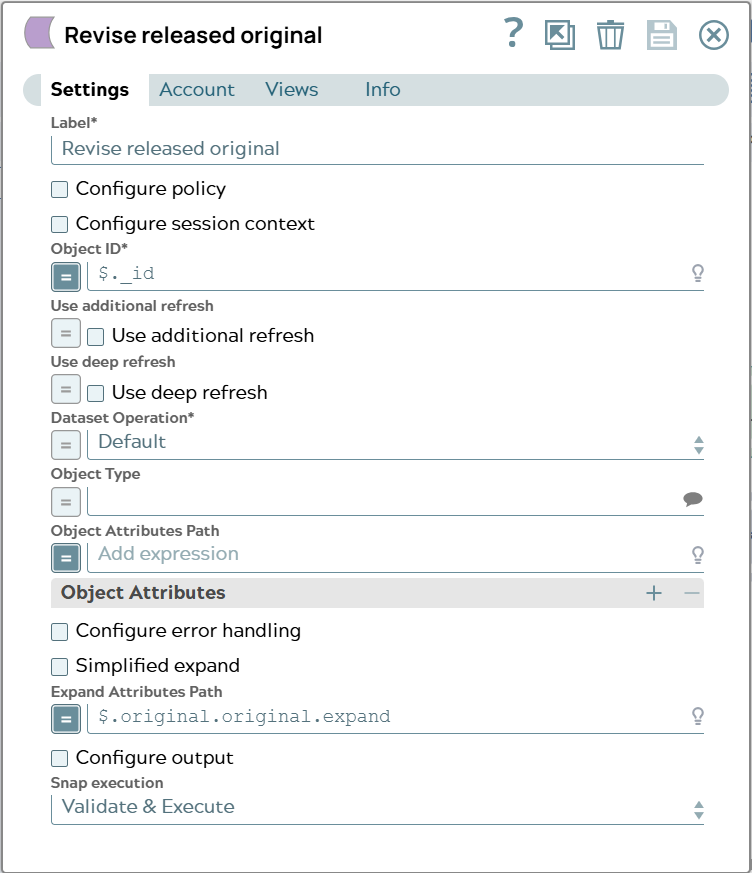

Settings of Tc Revise Snap. Dataset Operation is set to 'Default'.

[
  {
    "_id": "TC*Part Revision*null***wGNAANc57hAnmD",
    "creation_date": "2026-04-02T07:35:19Z",
    "item_id": "052857",
    "item_revision_id": "B",
    "last_release_status": null,
    "last_release_status_DISPLAY": "",
    "object_desc": "Test Revise with Snap",
    "object_name": "Test 0204261 Save",
    "object_string": "052857/B;1-Test 0204261 Save",
    "object_type": "Part Revision",
    "object_type_DISPLAY": "Part Revision",
    "release_status_list": [],
    "release_statuses": [],
    "UID": "wGNAANc57hAnmD",
    "original": {
      "_id": "TC*Part Revision*null***AWPAANc57hAnmD",
      "last_release_status": "TC*ReleaseStatus*null***wCLAANc57hAnmD",
      "last_release_status_DISPLAY": "LCM Released",
      "release_status_list": [
        "TC*ReleaseStatus*null***wCLAANc57hAnmD"
      ],
      "release_statuses": [
        "TC*ReleaseStatus*null***wCLAANc57hAnmD"
      ],
      "UID": "AWPAANc57hAnmD",
      "original": {
##...
      }
    }
  }
]

The JSON document provides an example output from Revise of a Part in Teamcenter OOTB data model. Attribute “item_revision_id” of the new revision is “B”.
