Tc Query: Simple input example

This example shows the input document that runs a saved query in Teamcenter.

In the snap configuration following values has to fed into fields

  • $object_type to Query Key
  • $max_items to Max Items
  • $attributes to Query Criteria Path
  • $expand to Expand Attributes Path
[
    {
        "query_key": "General...",
        "max_items": 2,
        "attributes": {
            "Type": "Part Revision",
            "ModifiedAfter": "2025-01-01T00:00:00Z"
        },
        "expand": [
            "item_id",
            "item_revision_id",
            "last_mod_date",
            "object_string",
            "items_tag.uom_tag"
        ]
    }
]

By this definition this query is forces to return 10 elements of type PartRevision with modification after January 1st 2025. Only internal Id values and attributes listed in array expand will be in the response.

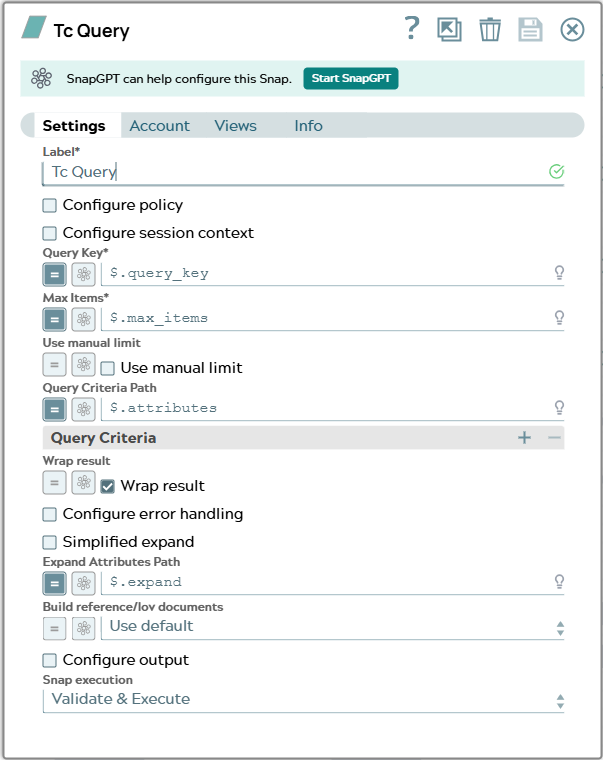

Snap configuration

Snap output


Settigns of Snap matching information from input document.

[
  {
    "result": [
      {
        "_id": "TC*Part Revision*null***0MOAgohJ7hAnmD",
        "item_id": "051600",
        "item_revision_id": "A",
        "items_tag": {
          "_id": "TC*Part*null***0MKAgohJ7hAnmD",
          "UID": "0MKAgohJ7hAnmD",
          "uom_tag": null,
          "uom_tag_DISPLAY": "each"
        },
        "last_mod_date": "2025-01-23T13:00:31Z",
        "object_string": "051600/A;1-Aluminium frame",
        "UID": "0MOAgohJ7hAnmD"
      },
      {
        "_id": "TC*Part Revision*null***0lJAgohJ7hAnmD",
        "item_id": "051601",
        "item_revision_id": "A",
        "items_tag": {
          "_id": "TC*Part*null***0lFAgohJ7hAnmD",
          "UID": "0lFAgohJ7hAnmD",
          "uom_tag": null,
          "uom_tag_DISPLAY": "each"
        },
        "last_mod_date": "2025-01-23T13:00:54Z",
        "object_string": "051601/A;1-Single-pane aluminium window",
        "UID": "0lJAgohJ7hAnmD"
      }
    ],
    "original": {
      "query_key": "General...",
      "max_items": 2,
      "attributes": {
        "Type": "Part Revision",
        "ModifiedAfter": "2025-01-01T00:00:00Z"
      },
      "expand": [
        "item_id",
        "item_revision_id",
        "last_mod_date",
        "object_string",
        "items_tag.uom_tag"
      ]
    }
  }
]
