Tc BOM Structure Remove
This Snap remove an element from a parent Bill of Material (BoM) node in Teamcenter.
Supported Accounts
- This is a Write-type Snap.
Works in Ultra Tasks
Prerequisites
- A valid Teamcenter account with the required permissions.
Snap views
| Type | Description | Examples of upstream and downstream Snaps |
|---|---|---|
| Input |
Optional.This Snap has at the most one document input view. The required input of the snap is the parent object ID and the child object ID which shall be removed from strucutre of the parent in Teamcenter. |
|
| Output |
This Snap has exactly one document output view. The output of the snap is an information about execution result (success or failure). |
|
| Learn more about Error handling. | ||
Examples

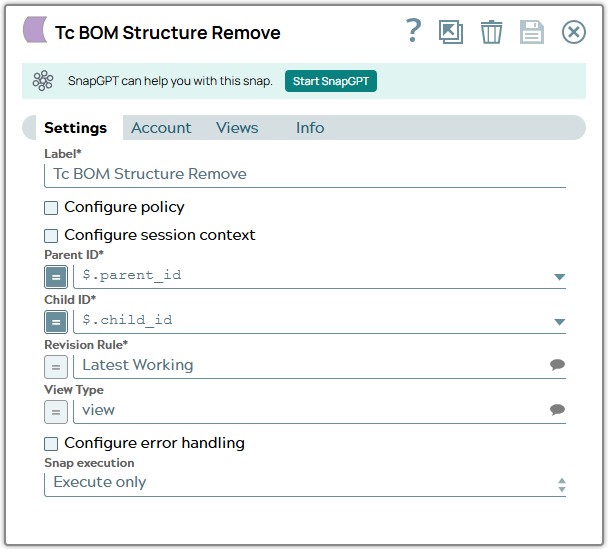

Tc BOM Structure Remove: Delete position from BOMSnap settings
| Field/Field set | Description |
|---|---|
Label
String |
Specify a unique name for the Snap. Modify this to
be more appropriate, especially if there are more than one of the same Snap in the
pipeline.
Default value: Tc BOM Structure Remove |
Configure policy
Checkbox |
Select this checkbox to run the Snap with a specific named Teamcenter policy. A policy determines the set of object properties that Teamcenter returns. Learn more: Configure policy. Default status: Deselected |
Configure session context
Checkbox |
Select this checkbox to run the Snap with a group, role, or project other than the one configured in the account. Learn more: Configure session context. Default status: Deselected |
Parent ID*
String/Expression |
Specify the _id, a UID (unique identifier) or a Teamcenter adapter ID of the parent element where you want to add the new item to. Default value: $._id Example: $.parent_id |
Child ID*
String/Expression |
Specify the _id, a UID (unique identifier) or a Teamcenter adapter ID of the child which you want to add to the parent element. Default value: $._id Example: $.child_id |
Revision Rule*
String/Expression/ Suggestion |
Specify the revision rule that you want the Snap to use for the structure creation. Default value: N/A Example: : Latest Working |
View Type
String/Expression/ Suggestion |
Specify the view type to determine the layout, visibility, and organization of data within the Teamcenter instance. The view type is a predefined set of properties and display settings used to present information about an object or a specific aspect of the system's functionality. Default value: N/A Example: ItemView |
Configure error handling
Checkbox |
Select this checkbox to define how the Snap behaves when Teamcenter returns an error. Use these settings for analysis and debugging. Learn more: Configure error handling. Default status: Deselected |
Snap execution
Dropdown list |
Choose one of the three modes in
which the Snap executes. Available options are:
|
