Create a part, classify it and delete classification

Note:

Classification has to exist in Teamcenter. Demonstratet classification “Cuboid” is not ootb Teamcenter.

This example pipeline demonstrates how to create a part, classify it, and then delete the classification.

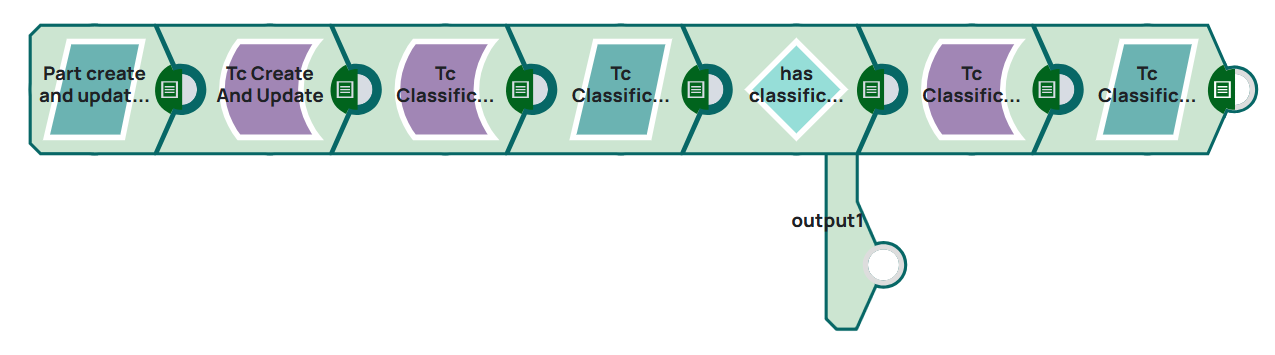

Pipeline consisting of seven snaps to demonstrate usage of classification create and delete snaps.

Note:

Classification has to exist in Teamcenter.

Steps

1: Create a JSON document which contains type and attribute of the part. The JSON Generator is a placeholder for external system which could send a JSON message to Snaplogic. On validation, the Snap displays the json in output.

[
  {
    "object_type": "Part",
    "attributes": {
      "object_desc": "Test Create with Snap",
      "object_name": "Classification_delete_Test",
      "fnd0CurrentLocationCode": "55"
    },
    "expandAttributes": [
      "object_type",
      "object_name",
      "object_desc",
      "item_id",
      "item_revision_id",
      "uom_tag",
      "creation_date",
      "fnd0IcsClassNames",
      "is_modifiable",
      "ics_classified",
      "owning_user",
      "fnd0CurrentLocationCode",
      "checked_out"
    ]
  }
]

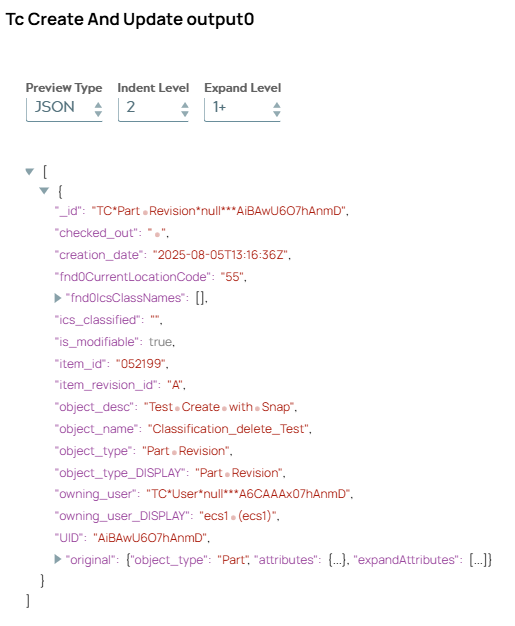

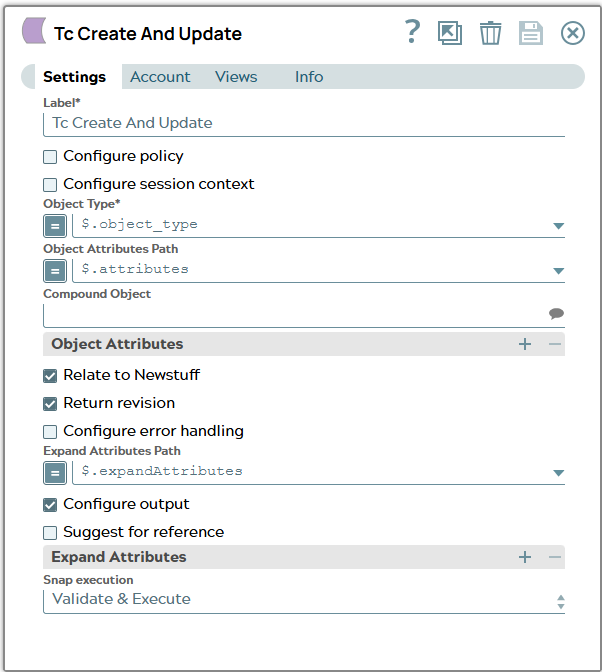

2: Configure the Tc Create and Update Snap to pass the data. On validation, the Snap displays the part revision created for the input.

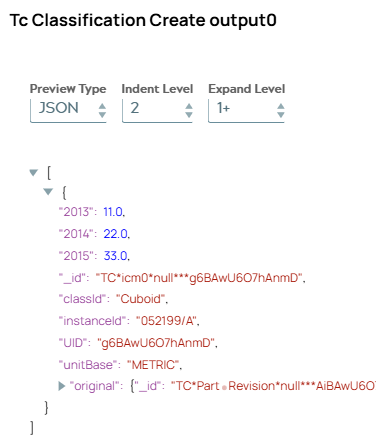

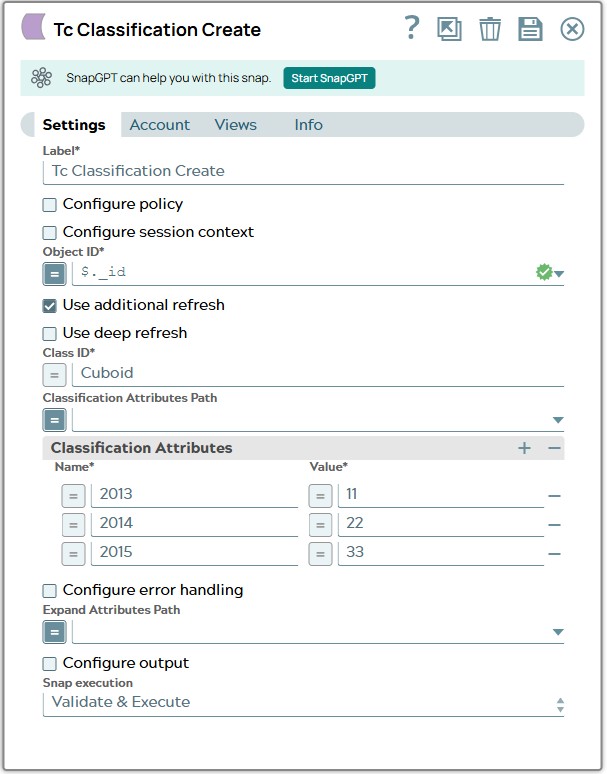

3: Configure the Tc Classification Create Snap to create classification information and add it to the part revision. On validation, the Snap displays the newly created classificiation information.

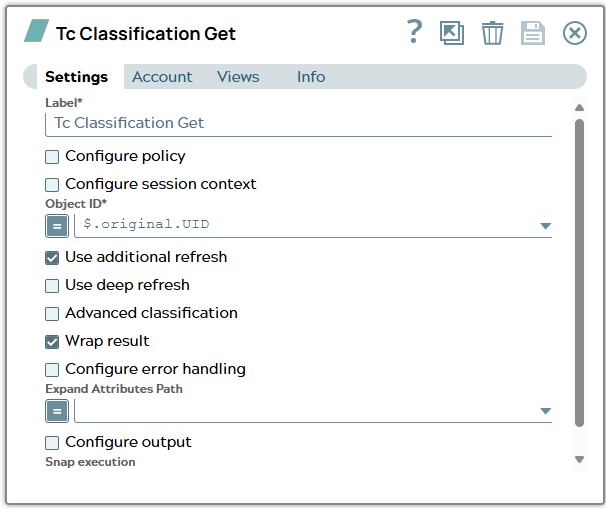

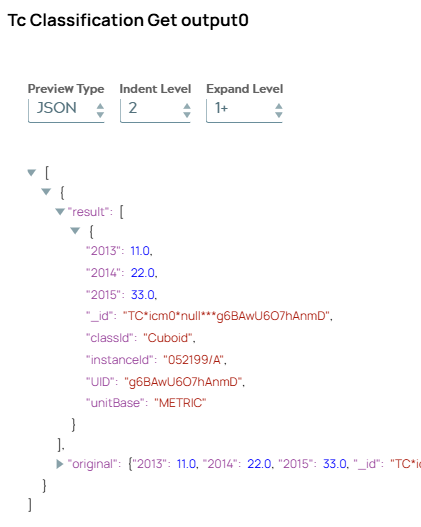

4: Configure the Tc Classification Get Snap to read classification of the part revision. On validation, the Snap displays the classification information.

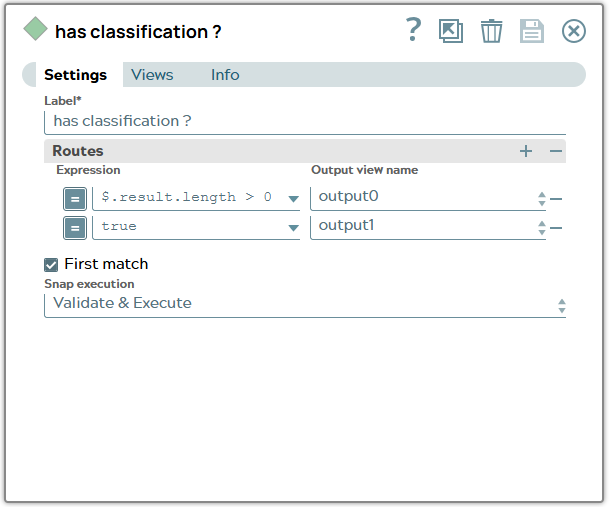

5: Configure a router to route message to Tc Classification Delete Snap in case classification exists.

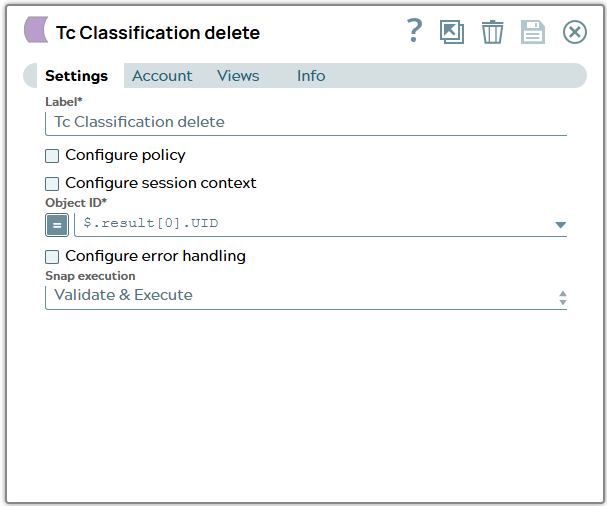

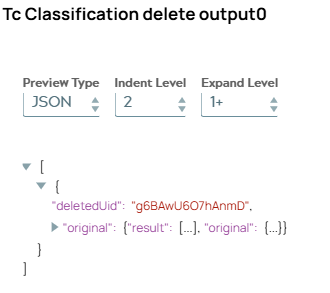

6: Configure the Tc Classification Delete Snap to delete classification information. On validation, the Snap displays result message including “deletedUid”.

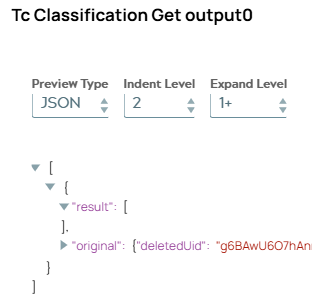

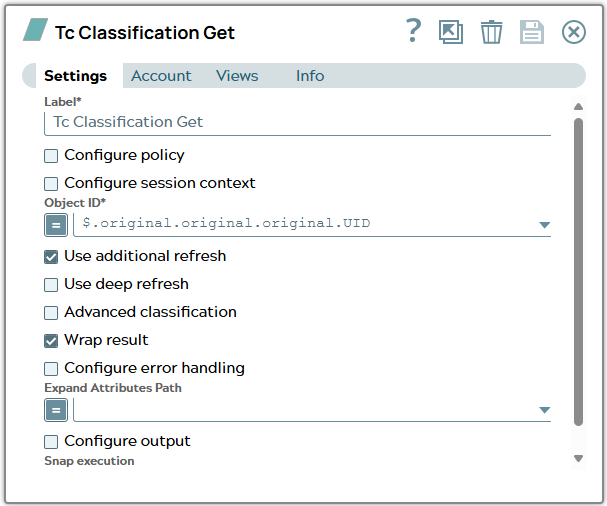

7: Configure again a Tc Classification Get Snap to read classification of the part revision. On validation, the Snap displays the remaining classification information in a result list.
