Tc BOM Structure Get TraceLinks: Get information about tracelink between occurrences

This example pipeline demonstrates how to read the trace links between two occurrences of a BOM.

As start another output JSON of Snap Tc BOM Structure Get For TraceLink (*) is used.

[
  {
    "productContext": {
      "uid": "SR::N::Awb0ProductContextInfo..PL:SR::N::BOMLine..9.dceYJHxBMaLdiB.AcMAAAS2pvHh2C.QMJAAASypvHh2C...,UC:1,,,AWBCB",
      "className": "Awb0ProductContextInfo",
      "type": "Awb0ProductContextInfo"
    },
    "parentOccurrence": {
      "uid": "SR::N::Awb0PartElement..BOMLine..9.dceYJHxBMaLdiB.AcMAAAS2pvHh2C.QMJAAASypvHh2C...,,AWBCB",
      "className": "Awb0PartElement",
      "type": "Awb0PartElement"
    },
    "structure": {
      "displayName": "SL Test P1 06072601",
      "occurrenceId": "SR::N::Awb0PartElement..BOMLine..9.dceYJHxBMaLdiB.AcMAAAS2pvHh2C.QMJAAASypvHh2C...,,AWBCB",
      "stableId": "AcEAAASypvHh2C",
      "underlyingObjectType": "Part Revision",
      "underlyingObjectUid": "AcEAAASypvHh2C",
      "children": [
        {
          "displayName": "SL Test P2 06072602 x1",
          "occurrenceId": "SR::N::Awb0PartElement..BOMLine..9.$D$VA0qLMaLFuD.AcMAAAS2pvHh2C.QMJAAASypvHh2C.Group:/Thid_QUEAAASypvHh2C..,,AWBCB",
          "stableId": "AcEAAASypvHh2C:QUEAAASypvHh2C",
          "underlyingObjectType": "Part Revision",
          "underlyingObjectUid": "AsPAAASypvHh2C"
        },
        {
          "displayName": "SL Test P3 06072603 x1",
          "occurrenceId": "SR::N::Awb0PartElement..BOMLine..9.GQ3ThsJdMarPFB.AcMAAAS2pvHh2C.QMJAAASypvHh2C.Group:/Thid_QULAAASypvHh2C..,,AWBCB",
          "stableId": "AcEAAASypvHh2C:QULAAASypvHh2C",
          "underlyingObjectType": "Part Revision",
          "underlyingObjectUid": "A4JAAASypvHh2C"
        },
        {
          "displayName": "SL Test P4 06072604 x1",
          "occurrenceId": "SR::N::Awb0PartElement..BOMLine..9.t_2j4QH5MaLW2A.AcMAAAS2pvHh2C.QMJAAASypvHh2C.Group:/Thid_QUPAAASypvHh2C..,,AWBCB",
          "stableId": "AcEAAASypvHh2C:QUPAAASypvHh2C",
          "underlyingObjectType": "Part Revision",
          "underlyingObjectUid": "QEDAAASypvHh2C"
        }
      ]
    },
    "original": {
      "UID": "AcEAAASypvHh2C",
      "description": "test BOM get"
    }
  }
]

ID values are unique and bound to object in one Teamcenter. IDs will not work for another Teamcenter. Create own Parts to get valid IDs for testing.

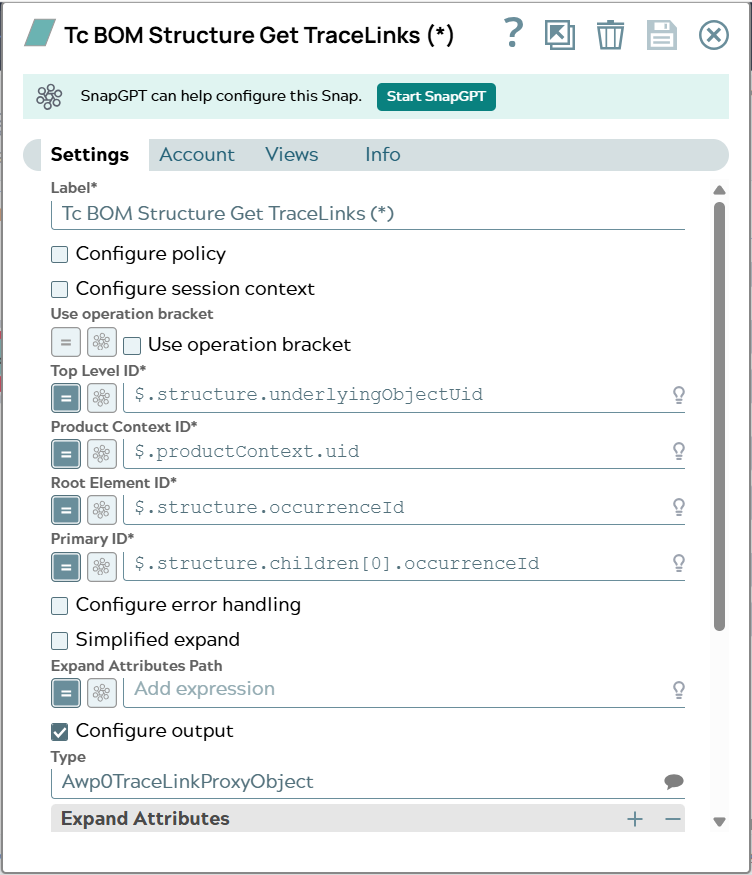

Snap configuration

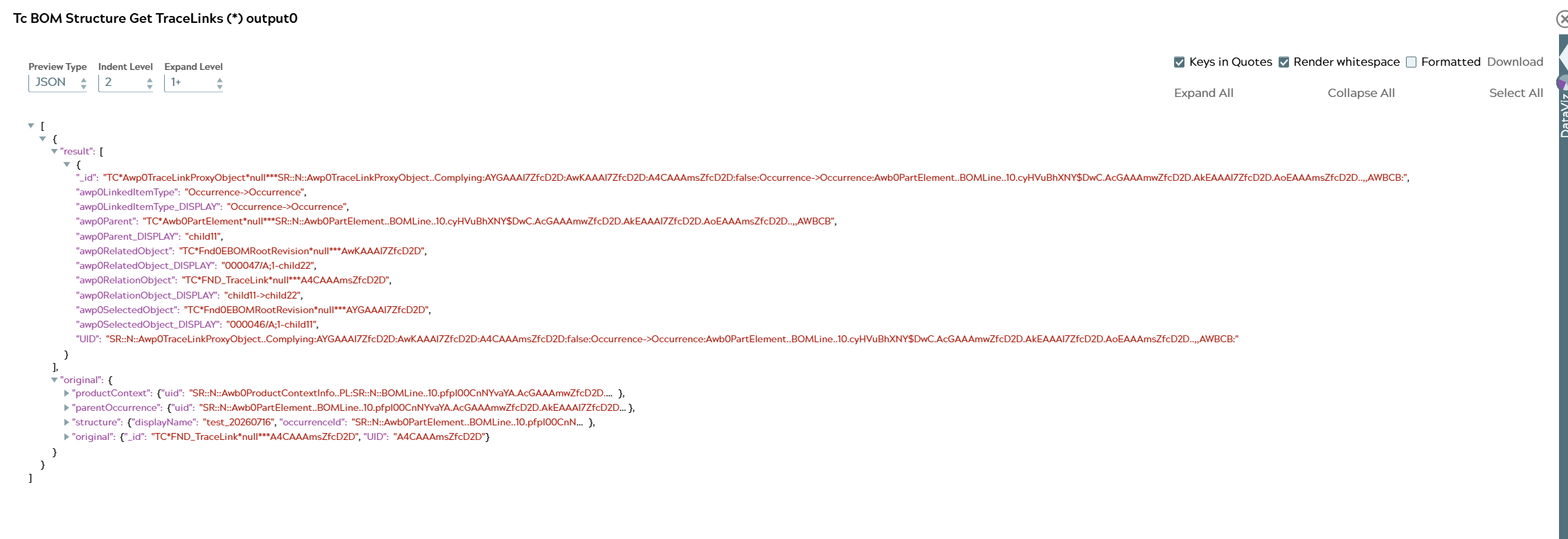

Snap output (case no tracelink)

[ { "result": [ ], "original": { "productContext": { "uid": "SR::N::Awb0ProductContextInfo..PL:SR::N::BOMLine..9.dceYJHxBMaLdiB.AcMAAAS2pvHh2C.QMJAAASypvHh2C...,UC:1,,,AWBCB", "className": "Awb0ProductContextInfo", "type": "Awb0ProductContextInfo" }, "parentOccurrence": { "uid": "SR::N::Awb0PartElement..BOMLine..9.dceYJHxBMaLdiB.AcMAAAS2pvHh2C.QMJAAASypvHh2C...,,AWBCB", "className": "Awb0PartElement", "type": "Awb0PartElement" }, "structure": { "displayName": "SL Test P1 06072601", "occurrenceId": "SR::N::Awb0PartElement..BOMLine..9.dceYJHxBMaLdiB.AcMAAAS2pvHh2C.QMJAAASypvHh2C...,,AWBCB", "stableId": "AcEAAASypvHh2C", "underlyingObjectType": "Part Revision", "underlyingObjectUid": "AcEAAASypvHh2C", "children": [ { "displayName": "SL Test P2 06072602 x1", "occurrenceId": "SR::N::Awb0PartElement..BOMLine..9.$D$VA0qLMaLFuD.AcMAAAS2pvHh2C.QMJAAASypvHh2C.Group:/Thid_QUEAAASypvHh2C..,,AWBCB", "stableId": "AcEAAASypvHh2C:QUEAAASypvHh2C", "underlyingObjectType": "Part Revision", "underlyingObjectUid": "AsPAAASypvHh2C" }, { "displayName": "SL Test P3 06072603 x1", "occurrenceId": "SR::N::Awb0PartElement..BOMLine..9.GQ3ThsJdMarPFB.AcMAAAS2pvHh2C.QMJAAASypvHh2C.Group:/Thid_QULAAASypvHh2C..,,AWBCB", "stableId": "AcEAAASypvHh2C:QULAAASypvHh2C", "underlyingObjectType": "Part Revision", "underlyingObjectUid": "A4JAAASypvHh2C" }, { "displayName": "SL Test P4 06072604 x1", "occurrenceId": "SR::N::Awb0PartElement..BOMLine..9.t_2j4QH5MaLW2A.AcMAAAS2pvHh2C.QMJAAASypvHh2C.Group:/Thid_QUPAAASypvHh2C..,,AWBCB", "stableId": "AcEAAASypvHh2C:QUPAAASypvHh2C", "underlyingObjectType": "Part Revision", "underlyingObjectUid": "QEDAAASypvHh2C" } ] }, "original": { "UID": "AcEAAASypvHh2C", "description": "test BOM get" } } } ]

After https://ecsgmbh.atlassian.net/wiki/x/AYAXDQ was used.

Snap configuration	Snap output
