Amazon Bedrock MKB Ingest Documents

Overview

You can use this Snap to ingest documents into a CUSTOM data source of an Amazon Bedrock Managed Knowledge Base (MKB) so that they become searchable through retrieval. The Snap supports three ways of supplying document content—inline text, inline Base64-encoded bytes, or a reference to a file already stored in Amazon S3—plus optional custom metadata per document.

To reduce API calls, the Snap buffers incoming documents and submits them in batches (up to 10 documents per request, the Amazon Bedrock API maximum). Indexing on the Amazon Bedrock side is asynchronous, so the Snap output reflects each document's submission status, not final indexing completion.

Note: Only CUSTOM data sources support direct document ingestion. When the input view is Binary, the incoming bytes are used directly as the document content, and the Content type field is hidden. You must still provide a MIME type for the binary content.

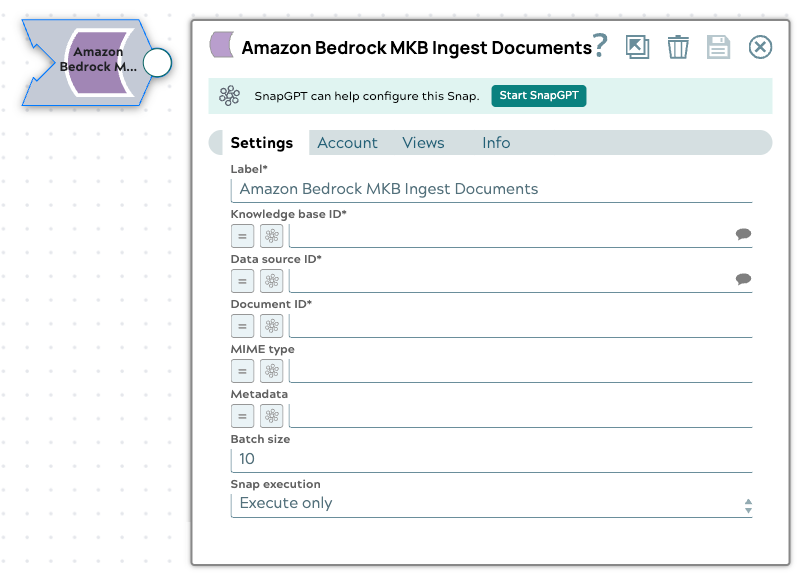

Amazon Bedrock MKB Ingest Documents Snap configuration

Prerequisites

Snap views

Type Description Examples of upstream and downstream Snaps
Input This Snap requires exactly one document or binary input view. When the input view is Binary, the incoming bytes are used as the document's byte content.
Output This Snap has exactly one document output view. The Snap writes one output document per flushed batch (or per input document when Batch size is 1), containing the IngestKnowledgeBaseDocuments API response with the per-document submission status. Mapper
Error Batch-level ingestion failures are routed to the error view, unless Batch size is 1, in which case the error is raised as a normal per-record error tied to that input document. N/A

Snap settings

Legend:
  • Expression icon (): Allows using JavaScript syntax to access SnapLogic Expressions to set field values dynamically (if enabled). If disabled, you can provide a static value. Learn more.
  • SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
  • Upload : Uploads files. Learn more.
Learn more about the icons in the Snap settings dialog.
Field/Field set Type Description

Label

String

 String

Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline.

Default value: Amazon Bedrock MKB Ingest Documents

Example: Ingest product docs
Knowledge base ID String/Expression/ Suggestion

Required. Specify the unique identifier of the Managed Knowledge Base to ingest into. The Snap suggests available knowledge bases from the configured account. The suggested value uses the following format:

KNOWLEDGE_BASE_ID:KNOWLEDGE_BASE_NAME

Only the portion before the colon is used as the knowledge base ID.

Default value: N/A

Example: MOCKKBID:mock-knowledge-base
Data source ID String/Expression/ Suggestion

Required. Specify the unique identifier of the data source to ingest into. Only CUSTOM data sources support direct document ingestion. The Snap suggests data sources scoped to the selected knowledge base.

Default value: N/A

Example: MOCKDSID:mock-data-source
Document ID String/Expression

Required. Specify a stable, custom identifier for the document. Reusing the same identifier updates (upserts) the existing document rather than creating a duplicate.

Default value: N/A

Example: doc-1
Content type Dropdown list

Select how the document content is supplied. This field is hidden when the input view is Binary (the content type is implicitly bytes in that case). The available options are:

  • TEXT: Use the inline text in the Text content field.
  • BYTES: Use the inline Base64-encoded content in the Byte content field. A MIME type is required.
  • S3: Use the file referenced by the S3 URI field.

Default value: TEXT

Example: S3
Text content String/Expression

Specify the inline text content of the document. This field is used only when Content type is TEXT and the input is not binary. Required in that case.

Default value: N/A

Example: hello world
Byte content String/Expression

Specify the Base64-encoded file content of the document. This field is used only when Content type is BYTES and the input is not binary. Required in that case.

Default value: N/A

Example: JVBERi0xLjQKJ...
MIME type String/Expression

Specify the MIME type of the byte content. Required whenever byte content is used—that is, when Content type is BYTES or the input view is Binary.

Default value: N/A

Example: application/pdf
S3 URI String/Expression

Specify the S3 URI of the document. This field is used only when Content type is S3 and the input is not binary. Required in that case.

Default value: N/A

Example: s3://my-bucket/manuals/manual-v2.pdf
Metadata String/Expression

Specify optional key-value metadata attributes to attach to the document. Values may be a string, number, boolean, or list of strings. The expression must evaluate to an object; a non-map value raises a configuration error.

Default value: N/A

Example: { "category": "faq" }
Batch size Integer

Specify the number of documents to buffer before sending an ingestion request. In an Ultra Task, only 1 is allowed, because per-document, low-latency processing is required and cross-document buffering is disallowed.

Minimum value: 1

Maximum value 10

Default value: 10

Example: 10
Snap execution

Dropdown list

 Dropdown list
Choose one of the three modes in which the Snap executes. Available options are:
  • Validate & Execute: Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime.
  • Execute only: Performs full execution of the Snap during pipeline execution without generating preview data.
  • Disabled: Disables the Snap and all Snaps that are downstream from it.

Default value: Validate & Execute

Example: Execute only

Limitations

  • Documents are buffered per knowledge base and data source pair. If either value changes between input documents, the pending buffer is flushed before buffering under the new pair. The buffer is also flushed automatically when it reaches Batch size, and any remaining partial batch is flushed when the pipeline completes successfully.
  • If the pipeline fails or is stopped, a pending partial batch is dropped, not submitted.
  • Amazon Bedrock indexes ingested documents asynchronously. The Snap output reflects the submission status (for example, STARTING), not final indexing completion.

Troubleshooting

A required field is missing.

The Knowledge base ID, Data source ID, Document ID, required content field, or MIME type (when byte content is used) is missing.

Provide the missing value indicated in the error message.

The Batch size is out of range or invalid for an Ultra Task.

Batch size is set outside the range of 1 to 10, or is greater than 1 in an Ultra Task.

Set Batch size to a value from 1 to 10. In an Ultra Task, set it to 1.
