AlloyDB Table List

Overview

You can use this Snap to list the tables in a database. This Snap connects to the database, reads its metadata, and outputs a document for each table found in the database. The table names display in topological order in the output so that tables with few dependencies display first in the output. For example, if table A has a foreign key reference to table B, then table B displays first in the output before A. The ordering is intended to ease the process of replicating a group of tables from one database to another.



Behavior changes

  • The following are the behavior changes caused by the JDBC driver upgrade for PostgreSQL Snap Pack and Google AlloyDB Snap Pack .
  • Some error messages will now include the data type for certain values, for example:

    • Old: "...where (badId = 1) was aborted:..."

    • New:
      "...where (badId = ('1'::numeric)) was
    aborted:..."
  • There are some minor text changes to a few of the error messages, for example:
    • Old:
      "Hint: No operator matches the given name and argument
      types."
    • New:
      "Hint: No operator matches the given name and argument
    type(s)."

Snap views

View Description Examples of upstream and downstream Snaps
Input The schema name from where the Snap must list the tables.
Output This Snap outputs a list of tables in a database. Documents with a "name" field containing the fully-qualified name of the table and a "type" field. To use the table name in another Snap, like a Select or Insert, you can pass it through for each Snap to another Pipeline with the Select or Insert.
Error

Error handling is a generic way to handle errors without losing data or failing the Snap execution. You can handle the errors that the Snap might encounter when running the pipeline by choosing one of the following options from the When errors occur list under the Views tab. The available options are:

  • Stop Pipeline Execution Stops the current pipeline execution when an error occurs.
  • Discard Error Data and Continue Ignores the error, discards that record, and continues with the remaining records.
  • Route Error Data to Error View Routes the error data to an error view without stopping the Snap execution.

Learn more about Error handling in Pipelines.

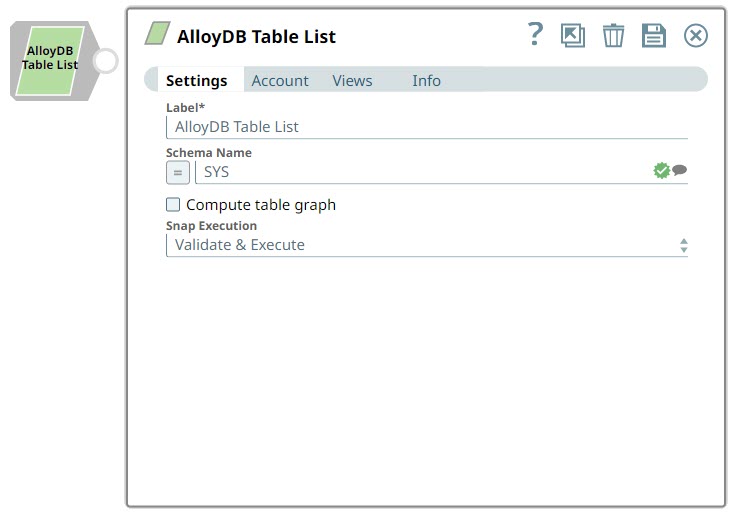

Snap settings

Legend:
  • Expression icon (): Allows using pipeline parameters to set field values dynamically (if enabled). SnapLogic Expressions are not supported. If disabled, you can provide a static value.
  • SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
  • Upload : Uploads files. Learn more.
Learn more about the icons in the Snap settings dialog.
Field / Field set Type Description
Label String

Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline.

Default value: AlloyDB Table List

Example: List Tables
Schema name String/Expression/ Suggestion The database schema name. Selecting a schema filters the Table name list to show only those tables within the selected schema. The property is suggestible and will retrieve available database schemas during suggest values.

Default value: N/A

Example: test
Compute table graph Checkbox Computes the dependents among tables and returns each table with a list of tables it has foreign key references to. The ordering of outputted tables is from least dependent to most dependent.
Note: Turning on this option will significantly slow down the Snap; leave it as off unless you need it.

Default status: Deselected
Snap execution Dropdown list
Choose one of the three modes in which the Snap executes. Available options are:
  • Validate & Execute: Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime.
  • Execute only: Performs full execution of the Snap during pipeline execution without generating preview data.
  • Disabled: Disables the Snap and all Snaps that are downstream from it.

Default value: Execute only

Example: Validate & Execute
