HTTP Client

Overview

The HTTP Client Snap is an advanced REST Snap that enables you to send HTTP requests to a server and receive corresponding HTTP responses. It integrates all commonly used HTTP methods, including DELETE, GET, HEAD, OPTIONS, PATCH, POST, PUT, and TRACE. This Snap allows 50 concurrent connections per route and a total of 500 connections in the pool for all routes.

Note:

  • The Apache HTTP client5 library strictly follows RFC 3986. According to Section 2.2 of the RFC, all reserved characters in the URI path must be encoded.

  • SnapLogic no longer supports a shared connection pool across Snaps when using the HTTP Client Snap. Instead, each Snap now maintains its own dedicated connection pool. This change ensures that SSL certificates are isolated per Snap, following the best practices recommended by Apache HttpClient 5.

    We recommend that you configure a separate account for each HTTP Client Snap to avoid connection or certificate conflicts.



Note: Why use HTTP Client Snap in your pipelines?

When integrating APIs and services, you can use either the HTTP Client Snap or the REST Snap Pack Snaps. While both Snaps facilitate HTTP requests, the HTTP Client Snap offers multiple benefits. We highly recommend that you use the HTTP Client Snap instead of the REST Snap Pack Snaps for connecting to REST-based APIs and applications.

Enhanced performance and efficiency

  • Optimized for faster execution of HTTP requests by supporting efficient bulk processing capabilities.
  • Asynchronous support for improved throughput and reduced execution time.

Learn more: Example: Example : Send records in a batch using a POST method

Extended protocol and payload support

  • Supports advanced HTTP methods (for example, PATCH and custom methods).

  • Better handling of raw HTTP responses and non-standard API interactions with improved support for non-JSON payloads (for example, XML and multipart form-data).

Learn more: Example : Update data in the endpoint using a PATCH method

Greater flexibility and customization

  • Provides additional control over request construction and modification by supporting a wider range of authentication methods and header configurations.

  • Enables seamless integration with APIs requiring specific payload formats.

Learn more: Configure API Suite Accounts

Ideal for comprehensive use cases

  • Designed for complex integrations that require fine-grained control over HTTP requests.

  • Designed for scenarios where REST Snaps' predefined configurations are restrictive.

  • Useful for APIs with non-standard authentication or response structures.

Learn more: HTTP Client Examples - API Suite Snap Pack examples

Improved debugging and error handling

  • Provides detailed logging and troubleshooting options through advanced error-handling and granular retries and timeouts.

Learn more : Troubleshooting

Pagination support due to its flexibility and configurability
  • Supports various pagination methods:

    • Page-based pagination (page or offset parameters in the URL)

    • Cursor-based pagination (next page token or cursor from API response)

    • Header-based pagination (pagination information provided in response headers)

  • Dynamic token extraction: The HTTP Client Snap enables you to dynamically extract the next page token from the API response (headers, body, or even a nested field) and use it in the subsequent request. The REST Snap Pack is more rigid in handling custom pagination mechanisms.

  • Full control over API calls: You can define the pagination limit, offset, cursor, or token placement directly within the HTTP Client Snap’s request settings. This is useful when working with APIs that require non-standard pagination handling.

Learn more:

Prerequisites

A valid account with the required permissions.

Behavior changes

With 4.41 GA main31019 Snap Pack version, the HTTP Client Snap that uses reserved characters in the Request API might fail, as HttpClient5 library encodes all the reserved characters as part of RFC 3986.

We recommend that you select the Prevent URL encoding checkbox to prevent encoding of special characters in the URL and run the pipeline.

  • With the main31019 version, the HTTP Client Snap does not normalize URLs by default. If you need to normalize a URL, you must perform this as a preliminary step (by replacing double slashes with a single slash in the path) for the URL preparation process.
  • With the 433patches21307 update, pagination evaluation occurs before sending the output to the output view. Therefore, if snap.out.totalCount is part of the Has next or any other pagination properties, the Snap will not include the count in the output corresponding to the request that produced the output document.

Limitations

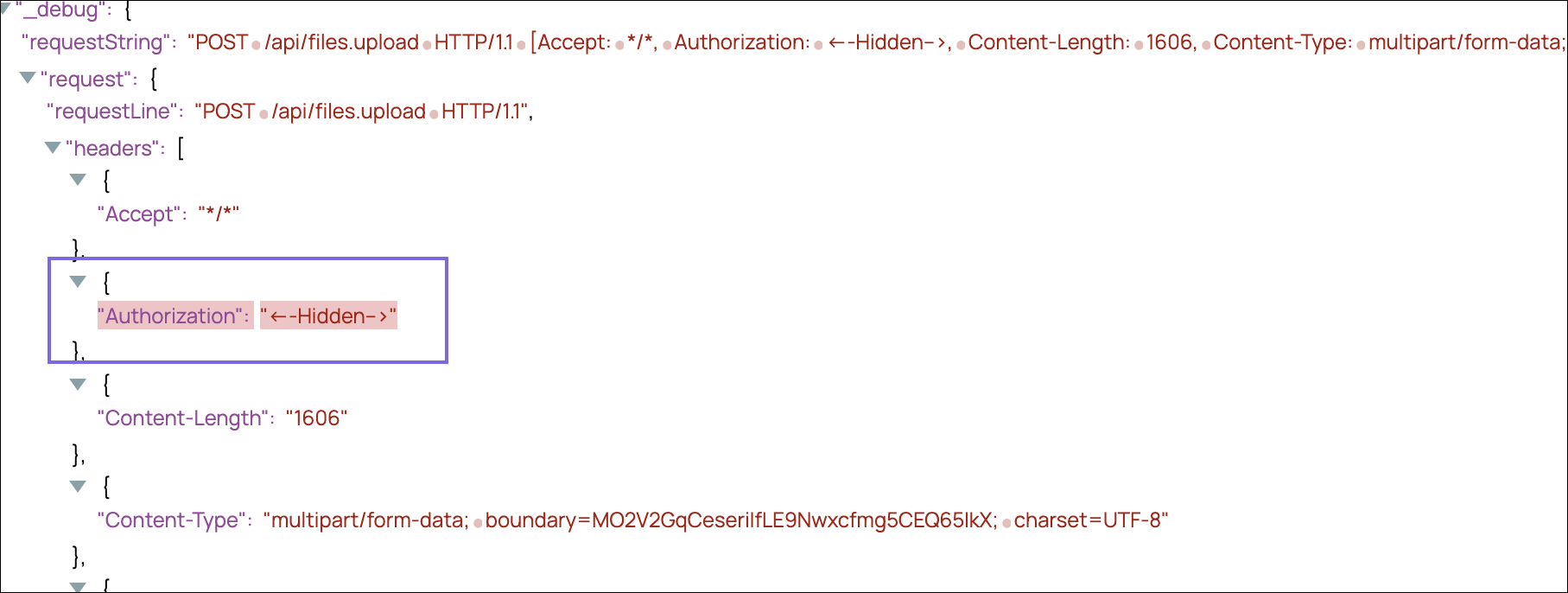

The HTTP Client Snap hides the Authorization headers in the debug information for Basic Authentication Account and Digest Authentication Account because of security considerations.

If you specify the Authorization headers manually in the Snap or through the Secured Headers Account, then the headers are displayed in the debug information, but the values are hidden as follows:

Known issues

  • This Snap fails with the Name may not be null error when the key-value pair values are empty for the x-www-form-urlencoded Entity Type.

  • The AWS Signaure V4 Account does not support Virtual Private Cloud for the HTTP Client Snap.

Snap views

View Description Examples of upstream and downstream Snaps
Input Each input document includes one of the following:

  • Details associated with the data required from the target RESTful server.

  • Details associated with the data that must be replaced or created in the target RESTful server.

  • Object ID to be deleted at the REST API service endpoint.
Output Each output document contains one of the following:

  • Data retrieved from the RESTful web server.

  • Response data from the REST API service endpoint detailing the status of the request.

  • Details related to the business objects.

Note:

  • When you include a second output view, the Snap uses this view to output the debug information by capturing the request and response.

  • The special characters, if any, are encoded by the Snap.
Error

Error handling is a generic way to handle errors without losing data or failing the Snap execution. You can handle the errors that the Snap might encounter when running the pipeline by choosing one of the following options from the When errors occur list under the Views tab. The available options are:

  • Stop Pipeline Execution Stops the current pipeline execution when an error occurs.
  • Discard Error Data and Continue Ignores the error, discards that record, and continues with the remaining records.
  • Route Error Data to Error View Routes the error data to an error view without stopping the Snap execution.

Learn more about Error handling in Pipelines.

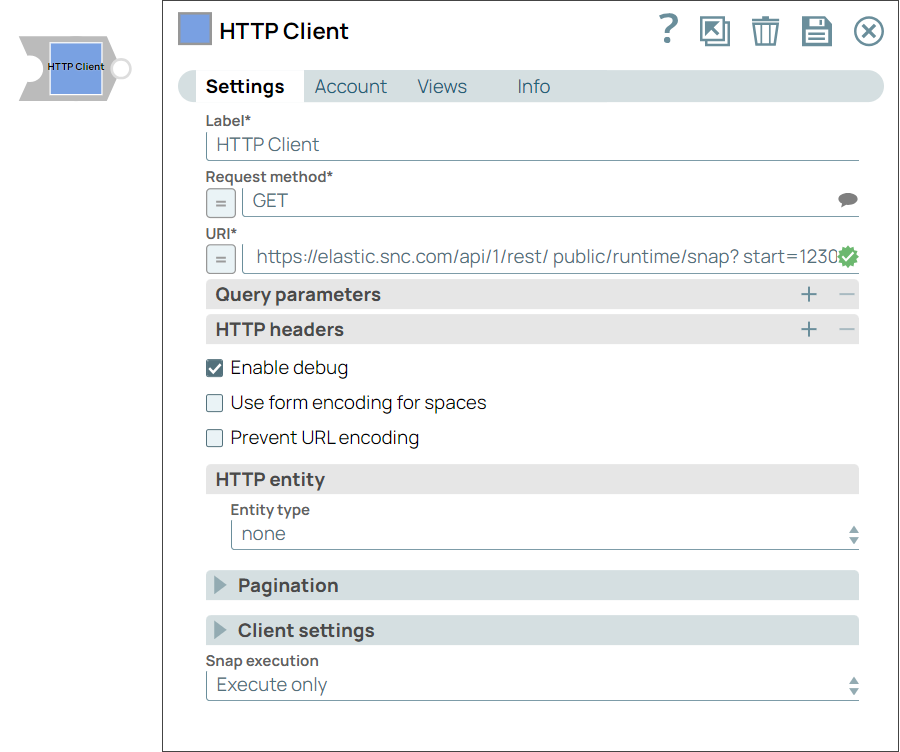

Snap settings

Legend:
  • Expression icon (): Allows using pipeline parameters to set field values dynamically (if enabled). SnapLogic Expressions are not supported. If disabled, you can provide a static value.
  • SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
  • Upload : Uploads files. Learn more.
Learn more about the icons in the Snap settings dialog.
Field / Field set Type Description
Label String

Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline.

Default value: HTTP Client

Example: HTTP Client
Request Method String/Expression/ Suggestion Required. Specify a custom method or choose one of the following HTTP request methods:
  • DELETE
  • GET
  • HEAD
  • OPTIONS
  • PATCH
  • POST
  • PUT
  • TRACE
Default value: GET

Example: HEAD
URI String/Expression Required. Specify the service endpoint URL of the REST API. You can provide the URL in one of the following ways:

  • As a JavaScript expression in expression language. For example, http://coresnapsqa-v4.s3.us-east-2.amazonaws.com/S3Account/'+encodeURIComponent("Special_char_owner_!3)12.json")

  • As a plain string that you should enclose in double quotes (""). For example,
    "https://www.example.com/slm/webservice/v2.0/defect/%s".replace("%s",
            $.widget.id)

You can use the canonical name (CNAME) for the URI, so it's not necessary for the URL to end with amazonaws.com or have the region and service provided in it. However, if you are using the CNAME you must provide it in the AWS Region and Service Name fields in the AWS Signature V4 account.

The host name in the CNAME must be equal to the bucket name.For example:Previous URI: https://jsmith-bucket.nia3.snaplogic.net.s3.us-west-1.amazonaws.com/HttpClientTest/test1New URI with CNAME: https://jsmith-sltest.nia3.snaplogic.net/HttpClientTest/test1Here bucket name is jsmith-bucket.nia3.snaplogic.net

The Snap finds the value at the JSON path "$.widget.id" in the input data and replaces "%s" in the URL with the value. You can connect the File Reader and JSON Parser Snaps upstream of the HTTP Client Snap and prepare the following JSON file to the File Reader Snap:

[ { "widget": { "id": "111", "name": "foo" } } { "widget": { "id": "555", "name": "bar" } } ] "https://www.example.com/data/v27.0/sobjects/Account"
Note: The URL for this Snap must be valid. If the URL contains any special characters, such as !, =, %21, $, and ^, the Snap displays an exception error. You can escape the special characters (using Using Expressions) using one of the following methods:

  • Use the global function encodeURIComponent on any variables that might contain special characters so that they are encoded properly. For example,

    'http://coresnapsqa-v4.s3.us-east-2.amazonaws.com/S3Account/'+encodeURIComponent(_fileName)

  • If you are aware of the code, use the code directly in the URL field. For example, http://coresnapsqa-v4.s3.us-east-2.amazonaws.com/S3Account/Special_char_owner_%213%2912.json; where <%213%2912> is the code.

We recommend that you use the former (encodeURIComponent) method to escape the special characters.

Default value: N/A

Example: https://elastic.snaplogic.com/api/1/rest/public/runtime/snaplogic?start=1230377200000&end=1320450398700
Query Parameters Use this field set to add query parameters to be included in the request. This is optional and can either be defined directly in the URL, as separate parameters or both.
Parameter Name String/Expression Specify the name of the query parameter.

Default value: N/A

Example: id
Parameter Value String/Expression Specify the value to assign to the parameter.

Default value: N/A

Example: $widget.id
HTTP Headers Use this field set to create the HTTP header key-value pairs required for defining the headers for different types of input (JSON, PDF, DOCX, and so on). If you want to specify only content-type headers, you can configure the Multipart Content-Type property instead.
Header Name String/Expression/ Suggestion Specify the name of the HTTP header. Alternatively, select one of the following options from the suggestion list:

  • Content-Type: You must specify the content-type in the header for an OPTIONS request method.

  • Accept

  • User-Agent

  • Content-Length

  • Authorization

  • Connection

  • Accept-Encoding

Note: This Snap accepts default value */*for the Accept header that enables the Snap to handle all forms of response content types.

Default value: N/A

Example: APIKeycontent-type

Header Value String/Expression Specify the value for the HTTP header.

Default value: N/A

Example: uyfikhEugk2iKnJWPvG8Rv8sL73BgM2Capplication/json
Enable debug Checkbox Select this checkbox to include the information about the executed request and response in the output document (under the_debug key that helps you with debugging).

  • When you select the Enable debug checkbox, the information about the executed request and response is written to both error and output documents (under the _debugkey) and it also displays a Lint warning in case of errors.

  • When you deselect the Enable debug checkbox, the history is neither written to error document nor output document and does not display any Lint warning.

Note: Using debug mode increases memory usage because of the retention of historical requests. So, for long-running or large input pipelines, we recommend you to deselect the Enable debug checkbox to avoid memory issues.

Default status: Selected
Use form encoding for spaces Checkbox Select this checkbox to enable the Snap to encode any space characters in query parameters using the plus sign (+). By default, the Snap encodes space characters using percent-encoding (%20). For example, when the base HTTP Get URI is: https://httpbin.org/anything/!"$%&'()*+,-.:;<+>?@[\]^_`{|}~
after encoding, the URI will be:
GET
      /anything/%21%22%24%25%26%27%28%29%2A%2B%2C-.:%3B%3C%2B%3E?%40%5B%5C%5D%5E_%60%7B%7C%7D~

Selecting this checkbox preserves whatever encoding has already been made. So, if you place a plus symbol Plus Icon in the query portion URL or percent-encodes (%20), the Snap preserves the same.

Learn more about encoding of query parameters.

Default status: Deselected
Prevent URL encoding Checkbox Select this checkbox to prevent the Snap from automatic URL encoding of the input URI. Enable this setting to use an already encoded URI.
Note: URL encoding encodes the same character in different encodings based on its location within the URL. The specific segments of the URL that apply here are the PATH portion and the QUERY portion: URI = scheme:[//authority][/path][?query][#fragment]

When you deselect this checkbox, the following are some of the characters that are automatically encoded by the Snap:

Character name Character (in PATH segment) URL Encoded value (in QUERY segment) URL Encoded value
Space %20 %20
Exclamation ! ! %21
Double Quote " %22 %22
Pound # %23 %23
Dollar Sign $ $ %24
Percent % %25 %25
Ampersand & & %26
Single Quote ' ' %27
Left Parenthesis ( ( %28
Right Parenthesis ) ) %29
Asterisk * * *
Plus + + %2B
Comma , , %2C
Hyphen - - -
Period (dot) . . .
Forward Slash / / %2F
Colon : : %3A
Semicolon ; ; %3B
Left-angle < %3C %3C
Equals = = %3D
Right-angle > %3E %3E
Question Mark ? %3F %3F
At Sign @ @ %40
Left Bracket [ %5B %5B
Backslash \ %5C %5C
Right Bracket ] %5D %5D
Caret ^ %5E %5E
Underscore _ _ _
Backtick ` %60 %60
Left Brace { %7B %7B
Vertical Bar | %7C %7C
Right Brace } %7D %7D
Tilde ~ ~ %7E

Default status: Deselected
HTTP Entity An HTTP entity is the message body you can send in a request or receive from a response. An entity represents both binary and character content. The POST and PUT methods use entities.
Entity Type Dropdown list Choose one of the following entity types to include in the request body.

  • none: Select this option if you do not want to use any body in your message.

  • multipart: This option enables you to send (form data) large binary or non-ASCII text to the server. Learn more about Upload a multipart file from an external file system.

  • x-www-form-urlencoded: This option enables you to send the URL-encoded data to the server. You must specify the key-value pairs to enable the Snap to send the encoded data in the request body to the server.

  • raw: This option enables you to send raw data without modifying it. It supports the following file types:

    • Text

    • Javascript

    • JSON

    • HTML

    • XML

  • binary: This option enables you to send binary data in the response body. It supports files from any external system, such as S3 and WASB. Learn more.

Default value: None.

Example: multipart
Multipart Subtype String/Expression Appears on selecting multipart for Entity Type.

Specify the MIME subtype for multipart, which specifies the nature of the message parts and their interrelationship.

Default value: form-data

Example: form-data
Multipart Form Appears on selecting multipart for Entity Type.
Use this field set to configure the fields required to upload multiple files and text. Learn more about Multipart Upload. By default, the Snap Settings display the fields required to upload a file. The data that is sent to the server using this entity type uses the following encoding pattern:

  • The control names and values are escaped. All space characters are replaced by the ‘+', and reserved characters follow the RFC 3986 notations.

  • An equal symbol, ‘=', separates the key and value, and the key-value pairs use ‘&' as a separator.
Type Dropdown list Appears on selecting multipart for Entity Type.
Choose either of the following multipart types to initiate the upload:
  • FILE

  • TEXT

Default value: FILE

Example: TEXT
Key String/Expression Appears on selecting multipart for Entity Type.

Specify the key for the multipart form-data needed to upload a file.

The HTTP Client uses multipart entity to achieve the file upload. The form-data of its multipart entity contains key-value pairs. Upload and multipart file key depend on the service endpoint.

Default value: N/A

Example: file
Value String/Expression Appears on selecting multipart for Entity Type.

Specify the file or text to be uploaded.

If Multipart Type is FILE, the following are applicable:

  • The file protocols supported for file values are 'sldb:///' and 'file:///'.

  • If the file path is a relative path, it is considered an SLDB file.

  • If this field is not empty, HTTP Entity and Batch size fields are ignored and the Multipart Key field is required.

  • If the value is an expression, the input document is used to evaluate the expression. Each input document results in one file upload.

  • This field does not support wildcard or glob patterns.

If Multipart Type is a TEXT, then:

  • The value should be expression-enabled and enclosed in double quotes.

Warning: For Text part upload using Form Upload, the HTTP Entity and Filename to be used are ignored.

Default value: N/A

Example:

  • FILE: persons.csv

  • TEXT: “sldb://file.txt”, “sampletext”
Content Type String/Expression/ Suggestion Appears on selecting multipart for Entity Type.
Select the content type headers for the data in the body of the multipart HTTP request.
Warning: If you leave this field blank or enter an incorrect content type, some endpoints might respond with a 500 - Internal Server Error.
The available options are:

  • application/octet-stream

  • text/plain

  • application/json

  • application/xml

  • text/csv

  • text/html

  • image/jpeg

Note:

  • If the Multipart Type is TEXT, it is usually not required to specify any value in this field. When you do not specify any value, the API uses the default value text/plain; charset=UTF-8.

  • If you do not specify the content type, the payload is encoded in UTF-8 and the header is sent in accordance with the content type that is identified.

  • If you specify only the content type, the charset uses the HTTP1 default for the provided content-type, this is typically ISO-8859-1 (US-ASCII).

  • The best practice is to specify the charset with your content-type, for example application/json; charset=utf8

Note:

  • To specify other HTTP headers, configure the headers in the HTTP header field set.

  • If you configure both Multipart Content Type and HTTP Headers, the value in the Multipart Content Type takes priority.

Default value: N/A

Example: text/csv
Form Use this field set to define key-value pairs for the URL-encoded form entity type.
Key String/Expression Appears on selecting x-www-form-urlencoded for Entity Type.

Specify the key of the form entry.

Default value: N/A

Example: id
Value String/Expression Appears on selecting x-www-form-urlencoded for Entity Type.

Specify the value for the key defined above.

Default value: N/A

Example: $widget
Raw Entity String/Expression Appears on selecting raw for Entity Type.

Specify the body to send in the request. If the raw entity is from an input document, the document is converted into JSON.

Default value: $

Example: $
File String/Expression Appears on selecting binary for Entity Type.

Specify or upload the file to send in the Post payload.

Default value: N/A
Pagination Properties to define pagination settings. Learn more about Pagination.
Has Next String/Expression Specify the boolean expression to indicate whether there is a next page. Learn more about Has Next in action, REST Get .
Note: HTTP client Snap evaluates the pagination properties before writing the output document. Therefore, if snap.out.totalCountis used as part of the Has Next expression, it must be used as snap.out.totalCount + 1, for example, "snap.out.totalCount + 1 < $entity.total"
Note: With the 433patches21307, pagination evaluation occurs before sending the output to the output view. Therefore, if snap.out.totalCount is part of the Has Next or any other pagination properties, the Snap will not include the count in the output corresponding to the request that produced the output document.
Warning: This field is null-safe; if the evaluated value is null, or if there is no value provided in Has Next field, the Snap stops the pagination.

Default value: N/A

Example: $entity['has-more']
Total Pages to Fetch Integer/Expression Specify the maximum number of pages to fetch. The Snap stops fetching the next page if either the maximum number of pages is reached or the Has Next condition evaluates to false.
Note: This is the secondary limit, which is used only if it is set—if it is left blank the Snap continues to fetch pages until the next page condition evaluates to false.

Default value: N/A

Example: 5
Override URI Checkbox Select this checkbox to enable the URI to be overridden with the specified Next URI for each pagination request.

Default status: Deselected
Next URI String/Expression Specify an expression to generate the URI for reading the next page. The expression will be evaluated on the output document.
Note: HTTP client Snap evaluates the pagination properties before writing the output document. Therefore, if the snap.out.totalCountis used as part of the offset query parameter in the Next URI expression, it must be used as snap.out.totalCount + 1, for example, "snap.out.totalCount + 1 < $entity.total"

Default value: N/A

Example: import { useRouter } from 'next/router';
Reuse request parameters Checkbox Select this checkbox to enable the Snap to reuse the specified URI parameters in the pagination requests. You can use the Override Parameters table to override some of them.

Default status: Deselected
Override parameters Configure the parameters to override the next pagination URL.
Name String/Expression Specify the name of the parameter to override.
Value String/Expression Specify the value for the parameter.
Override Headers Define the headers to be overidden or added in the next pagination request. Headers with the same name are overwritten and new headers are appended. If the value is empty, the header is removed. The header value is evaluated against the response document.
Name String/Expression/ Suggestion Specify the name of the header to be updated or added.
Value String/Expression Specify the value of the header to be updated or added.
Pagination Interval (seconds) Integer Specify the interval in seconds between the requests for each page.

Default value: 0

Example: 5
Client Settings Additional settings for the HTTP Client.
Connection Configure the settings to establish the connection to the server.
Cookie Policy Dropdown list Select a Cookie Policy from the following options:

  • Browser Compatibility: This policy is compatible with different servers even if they are not completely standards-compliant. If you have issues when parsing cookies, use this policy.

  • Ignore Cookies: This cookie policy ignores all cookies. Use this policy to prevent the HTTP Client from accepting and sending cookies.

  • RFC Strict: This policy uses the set-cookie header

  • RFC Lax: This policy uses set-cookie and set-cookie2 for parsing.

Default value: RFC Lax

Example: RFC Strict
Trust all certificates Checkbox Select this checkbox to trust all certificates, such as self-signed certificates.

Default status: Deselected
Read Timeout (seconds) Integer Specify the number of seconds the Snap must wait before terminating the request because of a failure to read from the target service.

Default value: 900

Example: 60
Connection Timeout (seconds) Integer Specify the number of seconds for which the Snap must wait before aborting the request due to a failure to establish a connection to the target endpoint or service.

Default value: 30

Example: 60
Retry Properties for handling retries.
Retry Condition Dropdown list Select one of the following options to handle connection and error responses:

  • Connection errors: Occurs when a client fails to establish a secure connection to the server.

  • Connection and auth errors (401/403): Occurs when either the user authorization fails or access to the page/resource is forbidden.

  • Connection and client errors (4xx): Occurs when the request for the resource contains bad syntax, or when the resource is not found (404).

  • Connection and server errors (5xx): Occurs when the server is unable to complete a request.

  • All errors: Applies to all of the above-listed errors.

Default value: Connection errors

Example: All errors
Maximum Attempts Integer Specify the maximum number of attempts the Snap must make to receive a response. If the attempts do not result in a response, the Snap terminates the request.

Default value: 5

Example: 3
Retry Interval (seconds) Integer Specify the number of seconds the Snap must wait between two successive requests. A retry happens only when the previous attempt resulted in an exception.

Default value: 3

Example: 10
Automatically retry on 429 responses Checkbox Select this checkbox to automatically retry the 429 Too Many Requests.

Default status: Selected
Use Retry-After header for 429 Checkbox Select this checkbox to enable the Snap to follow the Retry-After response header (if it exists) to retry the 429 responses.

Default status: Selected
Redirects Properties for handling redirections.
Follow redirects Checkbox Select this checkbox to accept the response and redirect the request.
Follow original HTTP method Checkbox Appears on selecting the Follow redirects checkbox.

Select this checkbox to enable the Snap to use the original HTTP method to do the redirect request. Otherwise, the GET method is used.

Default status: Deselected
Maximum Number of Redirects Integer/Expression Specify the maximum number of redirects to allow.

Default value: 10

Example: 5
Allow relative redirect Checkbox Select this checkbox to determine whether relative redirects should be allowed. The HTTP specification requires the location value to be an absolute URI.

Default status: Selected
Allow circular redirect Checkbox Select this checkbox to allow circular redirects to the same location.

Default status: Deselected
Output Properties that define the display of the output.
Response Type Dropdown list Choose one of the following response types:

  • JSON

  • Text

  • Raw

Default value: JSON

Example: Text
Extract entity as Documents Checkbox Appears on selecting JSON for Response Type.

Select this checkbox to extract the response entity as an output document as per the specified JSON path. If the extracted value is a list, it is split.

Default status: Selected
Write unsuccessful response to Error View Checkbox Select this checkbox to treat all unsuccessful responses (308, 4xx, and 5xx) as errors and write them to the error view.

Default status: Deselected
Include current cookies Checkbox Select this checkbox to include current cookies in each output document.

Default status: Selected
Snap execution Dropdown list
Choose one of the three modes in which the Snap executes. Available options are:
  • Validate & Execute: Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime.
  • Execute only: Performs full execution of the Snap during pipeline execution without generating preview data.
  • Disabled: Disables the Snap and all Snaps that are downstream from it.

Default value: Execute only

Example: Validate & Execute

Troubleshooting

Error Reason Resolution
Error making HTTP call to the endpoint. With the Apache library upgrade from HttpClient4 to HttpClient5, the HTTP Client Snap encodes all reserved characters (defined in RFC 3986, Section 2.2) in a URL. Select the Prevent URL encoding checkbox to prevent encoding of reserved characters in the URL and run the pipeline. This allows a request with reserved characters in the URL to succeed without failing.
Unable to find a valid certification path to the requested target. Each HTTP Client Snap must have its own account configured with the required certificate.

Stack trace error in the Snap:

"Caused by: java.io.EOFException at
                java.base/java.util.zip.GZIPInputStream.readUByte(Unknown Source
)
 The HTTP Client Snap sends Accept-Encoding is "gzip, deflate" in the request by default . Provide Accept-Encoding = * in the HTTP header to prevent the error.
Failed to execute the HTTP request. The Service URL must have a protocol, such as http://, https://.

<Service_URL>: Name or service not known. This means that the service URL you entered is not accessible.

 Check the Snap properties. Specifically, check your entry in the Service URL field.
Failure: Validation errors: property_map.settings.serviceUrl.value: Could not compile expression: <Service_URL>

The Snap settings are not correct. Encountered extraneous input ':' at line 1:5; expecting={<EOF>, '||', '&&', '^', '==', '!=', '>', '<', '>=', '<=', '+', '-', '*', '/', '%', '?', 'instanceof', 'in', 'matches', '[', '(', '.', PropertyRef}.

This means that you turned expressions on () when entering the string value into the Service URL field.

 Fix the Snap configuration and try executing again. Check the expression syntax. Ensure that your service URL is a proper expression; or turn off the expression control ().
The provided URI is invalid. Illegal character in schema name. Verify that the URI and parameters that you provide are syntactically correct.
Status codes
URL Parse Exception - 403 The Service URL path might be containing any of the following special characters: !, =, %, #, $, ^&()_¢äâêîôûñç¡¿ÉÙËǨ°¸ðø©¢¾A+²½µ®§÷¶þ To escape the special characters, use the global function encodeURIComponent on any variables that might contain special characters so that they are encoded properly.
status code = 404

Phrase = NOT FOUND, refer to the error_entity field in the error view document for more details.

This means that your service URL does not point to the correct endpoint.

 Check the values of Snap properties. Specifically, check your service URL.
status code = 404

Phrase = NOT FOUND, refer to the error_entity field in the error view document for more details.

This means that your service URL does not point to the endpoint that it should.

 Check the values of Snap properties. Specifically, check your service URL.
status code = 406

NOT ACCEPTABLE.

This means that the endpoint is not receiving any details from upstream Snaps.

 Ensure that you have valid references in the HTTP entity field.
status code = 409 CONFLICT, refer to the error_entity field in the error view document for more details. This happens when you already have the resource that you want to create in the target endpoint. Verify the values in the Snap configuration.
Too many Requests - 429 There are too many requests to the endpoint.

Wait for the retry to succeed. The HTTP Client Snap extracts the response header and automatically retries when it encounters status 429.

By default, the retry interval (Retry-After) is specified in the HTTP response header. If no value is available for Retry-After, then the Snap’s Retry Interval value is used.

Examples
