Mapping to XML Generator via XSD

Let us use a JSON Generator to provide the input order data, such as defined below:

[
    {
        "items" : [{
            "title": "iphone6",
            "quantity": 1,
            "price": 598.00
        },
        {
            "title": "note 4",
            "quantity": 1,
            "price": 599.00
        }
        ],
         "address":"some address",
        "city": "San Mateo",
        "orderId": "1234",
        "name": "Mr. Undecided"
    },
    {
        "items" : [{
            "title": "iphone6",
            "quantity": 1,
            "price": 598.00
        },
        {
            "title": "note 4",
            "quantity": 1,
            "price": 599.00
        },
        {
            "title": "lumina",
            "quantity": 1,
            "price": 0.99
        }
        ],
         "address":"some address",
        "city": "San Mateo",
        "orderId": "1234",
        "name": "Mr. Even more Undecided"
    }
]

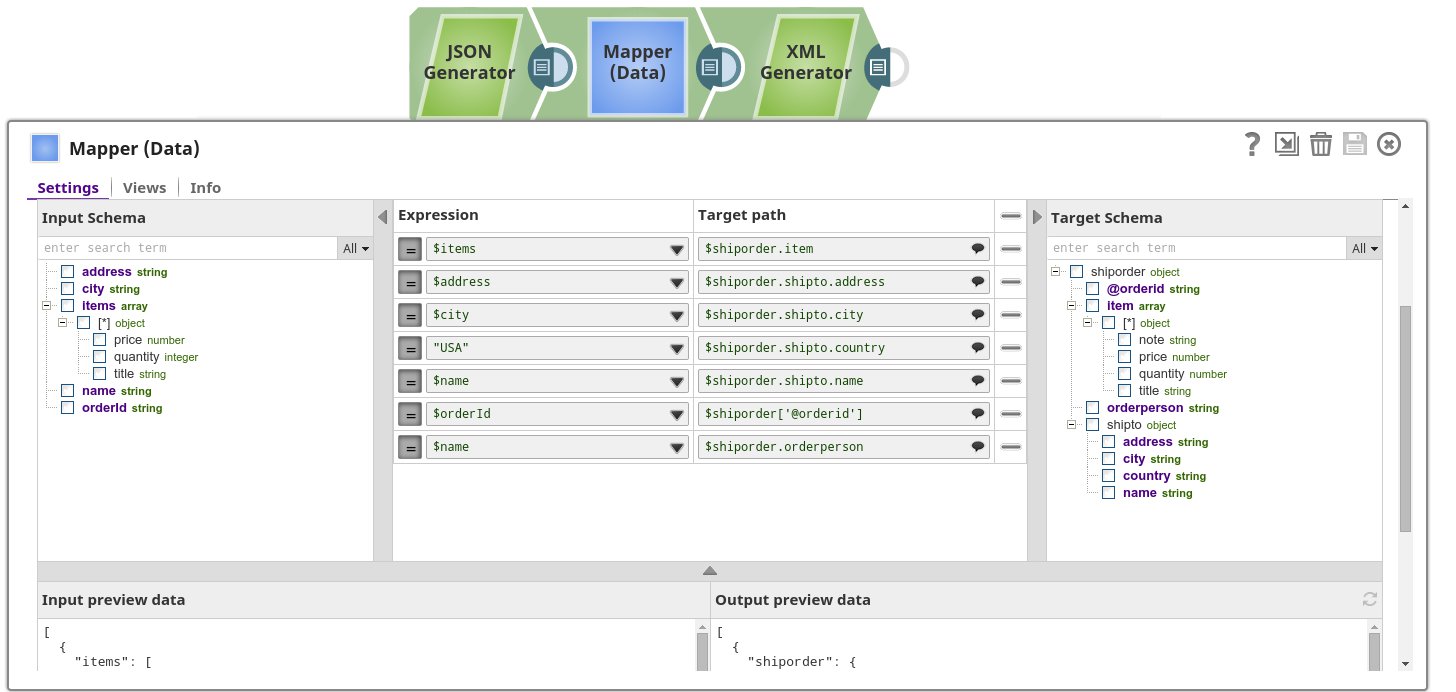

We then map the data using the Mapper Snap which has access to the XSD of the downstream XML Generator Snap of the previous example (now with an added input view).

Here we map the items to the item list on the target. Further we map the city, address, country and name to the shipTo object on the target and then finally we map the name against orderperson and orderId against @orderId on the target. The @ indicates we map against an XML attribute.

Let us see the output of the XML Snap.

Here we see that each incoming order document was translated into an xml string. We include the original data from the input view, in case it is further needed downstream. The XML Generator Snap can validate the generated content if needed using the “Validate XML” property.

To successfully reuse pipelines:
  1. Download and import the pipeline in to the SnapLogic Platform.
  2. Configure Snap accounts, as applicable.
  3. Provide pipeline parameters, as applicable.
