APIM Function Generator Snap

Overview

You can use this Snap to convert the APIM service version to the list of functions for the Tool Calling Snap.

Format-type Snap
Works in Ultra Tasks

Prerequisites

None.

Limitations and known issues

None.

Snap views


View	Description	Examples of upstream and downstream Snaps
Input	This Snap supports 0 or 1 document (Default 1). If the input document contains a tools array, the Snap will append the APIM API tools to this array.	Mapper
Output	The output contains a list (array) of tools or functions. Each item describes one API or function that can be used. The output schema includes a set of API functions, each with metadata (such as method, URL, security) and a structured definition of what input parameters (query, body, header) they expect.	OpenAI Tool Calling Azure OpenAI Tool Calling Google Gemini API Tool Calling Amazon Bedrock Converse API Tool Calling
Error	Error handling is a generic way to handle errors without losing data or failing the Snap execution. You can handle the errors that the Snap might encounter when running the pipeline by choosing one of the following options from the When errors occur list under the Views tab. The available options are: Stop Pipeline Execution Stops the current pipeline execution when an error occurs. Discard Error Data and Continue Ignores the error, discards that record, and continues with the remaining records. Route Error Data to Error View Routes the error data to an error view without stopping the Snap execution. Learn more about Error handling in Pipelines.

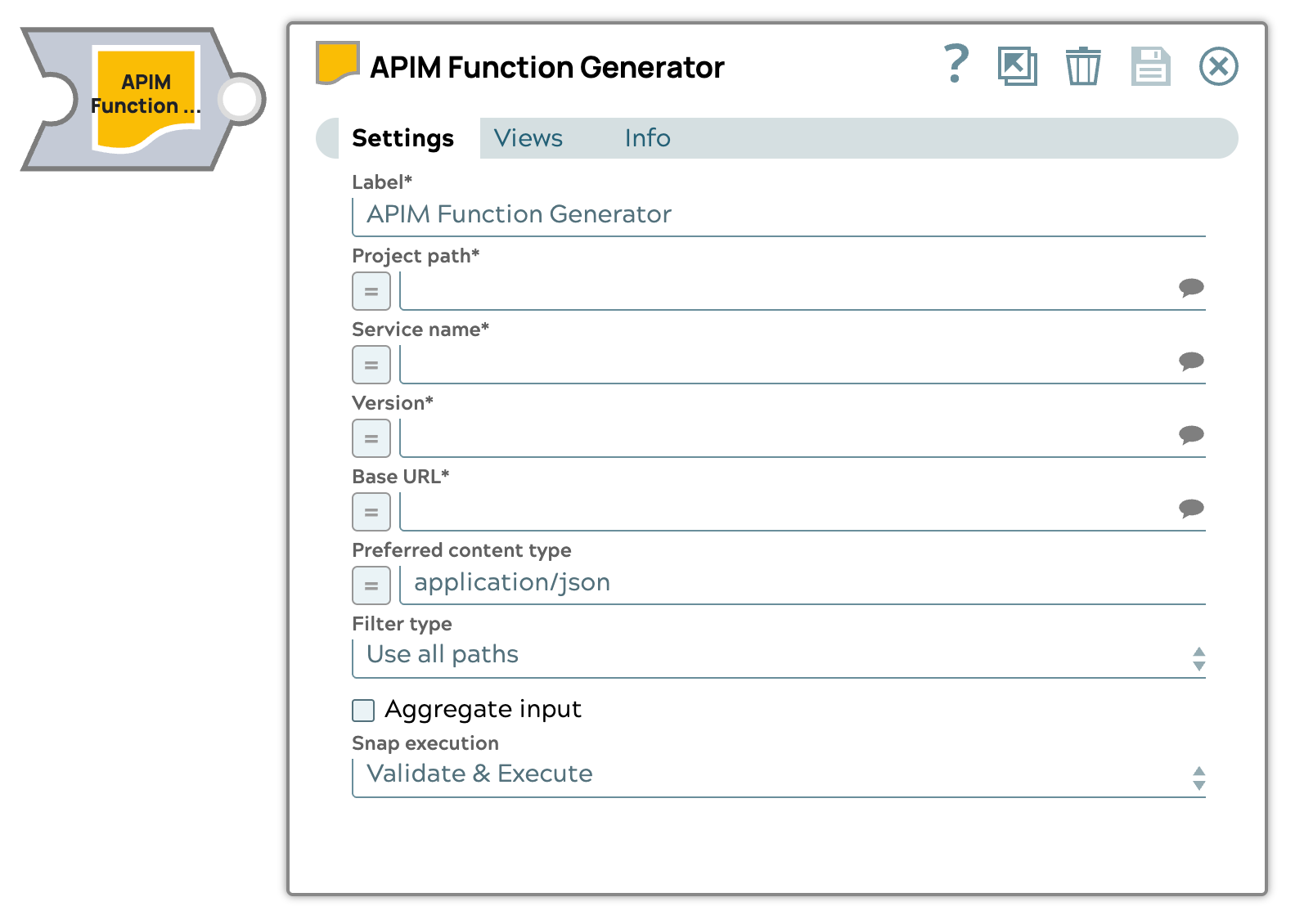

Snap settings

Legend:

Expression icon (): Allows using JavaScript syntax to access SnapLogic Expressions to set field values dynamically (if enabled). If disabled, you can provide a static value. Learn more.
SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
Upload : Uploads files. Learn more.

Learn more about the icons in the Snap settings dialog.


Field / Field set	Type	Description
Label	String	Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline. APIM Function Generator Example: Generate tool calling service
Project path	Expression/Suggestion	Required. Specify the path to the project that contains the APIM service used to generate the function definition. Format: `project space/project` Default value: N/A Example: `/pet/findByStatus`
Service name	String/Expression/ Suggestion	Required. Select the service name from the selected project to convert to functions. The suggestions are listed based on the selected project. Default value: N/A Example: `PetStore Test`
Version	String/Expression/ Suggestion	Required. Select the service version for the service name to convert to functions.. The suggestions are listed based on the selected service name. Default value: N/A Example: `v1`
Base URL	String/Expression/ Suggestion	Specify the base URL for the APIM service.
Preferred content type	String/Expression	Required. Specify the content type in a MIME (Multipurpose Internet Mail Extensions) type format for the OpenAPI specification. Important: If you do not provide a content type or if it is not supported, the Snap defaults to the first supported content type from the specification. Default value: application/json Example: application/yaml
Filter type	Dropdown list	Choose the filter to apply to the service version: Default value: Use all paths. All service endpoint paths and methods will be converted to functions.
Filter tags	Expression/Suggestion	Specify the tag name to filter for at the endpoint, path, or method level in the function definition Displays only when Filter type is Tags. Note: You can add multiple tags. Null or blank tag will be filtered out from the tags list to use as a filter.
Filter paths and methods	Expression/Suggestion	Specify the path and associated method. All of the specified paths with their associated methods will be included in the tool function list.
Path	Expression/Suggestion	Specify the path of the filter. You can add multiple paths. Default value: N/A Example: `/pet/findByStatus`
Method	Expression/Suggestion	Select the method of the service endpoint path. Note: If the associated method for the path is not present, the Snap displays an error. Default value: N/A Example: `GET`
Aggregate input	Checkbox	Select this checkbox to aggregate all incoming documents into a single input for the pipeline function. Default status: Deselected
Snap execution	Dropdown list	Choose one of the three modes in which the Snap executes. Available options are: Validate & Execute: Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime. Execute only: Performs full execution of the Snap during pipeline execution without generating preview data. Disabled: Disables the Snap and all Snaps that are downstream from it. Default value: Validate & Execute Example: Execute only
