Create an Ultra Task

A Snaplex with one or more FeedMaster nodes, write permissions for the Project Space, and a valid pipeline.

  • A Snaplex with one or more FeedMaster nodes.

  • Write permissions for the Project Space.

  • A valid pipeline.

This task describes how to create an Ultra Task.
  1. From Designer or Manager, open the Create Task dialog:
    1. In Designer, with the pipeline open, in the toolbar, click More Tools.
      Click Create Task and select Ultra Task
    2. In Manager, from the left navigation, select the Project containing the pipeline.
      In the toolbar, click Create Task > Ultra Task
  2. Edit the required fields:
    1. Enter a name. This name is used in the URL when the pipeline has unconnected inputs/outputs. The names of assets, projects, or project spaces are limited to UTF-8 alphanumeric characters and these special characters: !" $% &'()*+-.:;<=>@[]^_`{|}~
    2. If not already selected, click the drop-down menu and select the pipeline to be triggered by the Ultra Task.

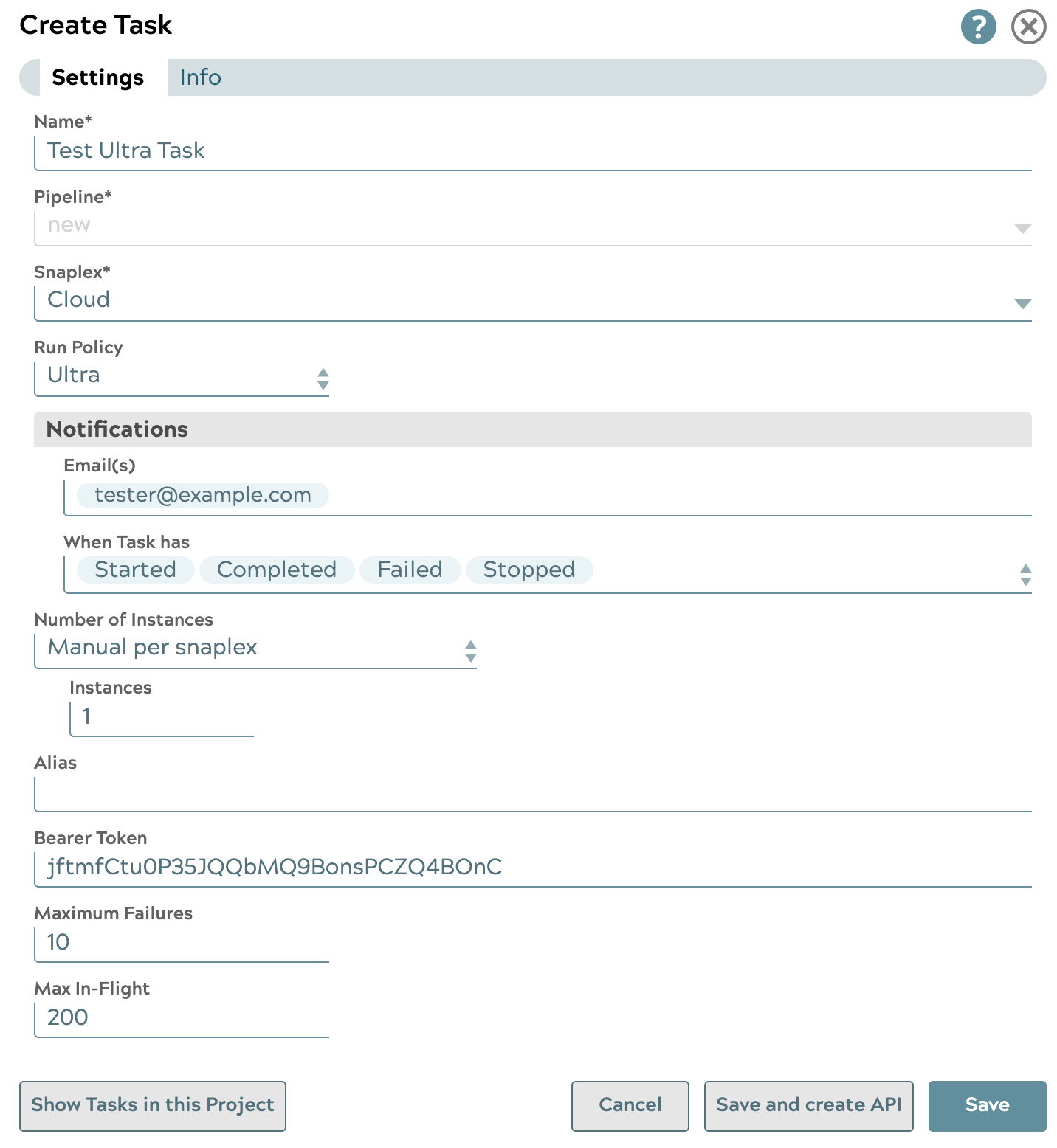

      If you choose a pipeline that contains parameters, the parameters display in the Create Task dialog, where you can modify them. In the following example, the parameter keys path, full, and table name are displayed, with their entries as the corresponding values. In the full field, the values contain nested JSON.
    3. From the dropdown menu, select a Snaplex that has a FeedMaster.
    4. Modify the applicable optional fields as described in the table below.
      Field Description
      Notifications Enables email notifications based on the status of the Scheduled Task. If your Org supports Slack notifications, you can add Slack channels or recipients. To use notifications:
      • In Notifications, enter each recipient's email address, separated by commas.
      • If Slack notifications are configured for your Org, the following fields display. You can select from the dropdown list or start typing a name to find it in the list:
        • Direct Message(s): Select individuals to receive notifications.
        • Channels: Select channels to receive notifications.
      • Select the status that triggers notifications from the When Task has selector:
        • Started: The Task is activated.
        • Completed: The Task is completed.
        • Failed: The associated pipeline didn't execute.
        • Stopped: The associated pipeline has stopped abruptly and the Task is no longer running.
      Number of Instances Select from the dropdown to scale the running instances for the Ultra Tasks.
      Remember: Review the information in Ultra Tasks in Production before you use the following settings.
      • Manual per Snaplex: Specifies the number of instances per Snaplex equal to or greater than 1.
        • Default: 1
        • Minimum: 1
        • Maximum: 1000
      • Manual per Node: Specifies the number of instances per node, which must be in the range of 1-99 inclusively. The total number of instances is based on available nodes.
        Note: The input value does not guarantee the number of instances, but rather the pipelines will eventually converge on the number of instances running, so it's possible for there to be periods of time when it goes over that number.
        By default, the instance value is set to 1.
      • Autoscale based on Feedmaster queue: Specifies the minimum and the maximum numbers of instances per Snaplex, which must be in the range of 1-99 inclusively. By default, the instance values are set to 1. You can also view details of the Auto-scaling events in the Activity log under the Snaplex tab with information on the previous and current configurations.
        Note: This option applies only to low latency Ultra Tasks because it requires a FeedMaster node.
      Alias Use an alias to run an Ultra Task in multiple regions for high availability and disaster recovery. Use the same alias in multiple Ultra Tasks that run the same pipeline. When an Ultra Task in one region fails, a Snaplex in another region can run the pipeline by invoking the Ultra Task that shares the same alias. The Ultra Task that shares the alias must be in the same project folder as the primary Ultra Task, but be deployed to different Snaplex instances.
      Bearer Token An automatically generated token for the HTTP Authorization header. If you clear this field, authentication is not required. You can also set the value yourself
      Note: To authenticate the application successfully, ensure to remove the special characters from the token when adding or updating the values.
      Maximum Failures

      Specifies an optional threshold when the pipeline fails to start. If the number of failures reaches the threshold, the Snaplex disables the Ultra Task. The default value is 10. The maximum value is 1000.

      Set the value to 0 to remove the limitation on pipeline failures.

      During development, the pipeline can be in an invalid state and fail to start multiple times. Therefore, in this scenario, it is recommended that you set the value to 0 until the pipeline is ready for production.
      Max In-Flight

      Specifies a threshold for documents to be processed on a single pipeline instance. Once the execution reaches the threshold, the Snaplex distributes to other instances of the Ultra Pipeline. This enables you to prevent an excessive number of documents from being queued on a single, slow execution.

      Set the Max In-Flight value to the maximum number of documents that can be processed by one instance at a time.

      • Default: 200
      • Minimum: 1
      • Maximum: 1000
      Set this value higher if the Ultra Task executions take a long time. A value of 1 disables the prefetching of documents and can negatively affect performance.
    5. Click Save. (Optional) To create an API in API Manager, click Save and create API .
      Attention: If you change an Ultra Task URL into a Triggered Task URL and invoke it, the pipeline is executed as an Ultra Task and completed successfully instead of returning an error or failing.
