Export APIM policies

GET https://{controlplane_path}/api/1/rest/public/apim/export_policies

Overview

Export the policies of an API or API version.

Important: This page describes a Classic APIM API.

Prerequisites

Environment (Org) admin permissions

Request

 GET https://{controlplane_path}/api/1/rest/public/apim/export_policies?{query_parameters}

Example

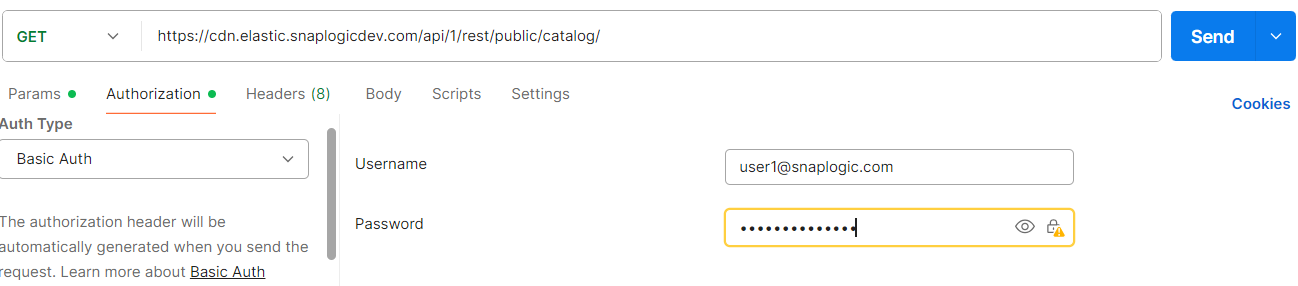

This example uses basic authentication. For a JWT example, refer to Authentication.

curl -X 'GET' \
  'https://elastic.snaplogic.com/api/1/rest/public/apim/export_policies?path=acme/apim/BookStore/1.0&policies_to_export=com-snaplogic-policies-auth-authorizebyrole,com-snaplogic-policies-traffic-corspolicy' \
  -H 'Authorization: Basic {base64_encoded email:password}'

Path parameters


Key	Description
`controlplane_path`	Required. The path to the SnapLogic control plane: `elastic.snaplogic.com` For the UAT or EMEA control plane, substitute the name for `elastic`. For example: `uat.elastic.snaplogic.com` `emea.snaplogic.com`

Query parameters


Key	Type	Description
`path`	string	The path to the API or the API version. The path comparison is case-sensitive. The path must be URL-escaped. That is, spaces must be replaced with `%20`. Format: API: `/{env_org}/apim/{api_name}` API version: `/{env_org}/apim/{api_name}/{api_version}`
`policies_to_export`	array	A comma-separated list of strings containing the policies to export. Valid values: `com-snaplogic-policies-auth-anonymousauthenticator` `com-snaplogic-policies-auth-apikey` `com-snaplogic-policies-auth-authorizebyrole` `com-snaplogic-policies-auth-calloutauthenticator` `com-snaplogic-policies-auth-clientcredenoauth` `com-snaplogic-policies-auth-genericoauth2policy` `com-snaplogic-policies-traffic-clientthrottling` `com-snaplogic-policies-traffic-corspolicy` `com-snaplogic-policies-traffic-iprestrictionpolicy` `com-snaplogic-policies-traffic-requestsizelimit` `com-snaplogic-policies-transform-requesttransformer` `com-snaplogic-policies-validation-authorizedrequestvalidator` `com-snaplogic-policies-validation-earlyrequestvalidator` `com-snaplogic-policies-validation-jsonvalidator` `com-snaplogic-policies-validation-sqlthreatdetector` `com-snaplogic-policies-validation-xmlvalidatordtd` `com-snaplogic-policies-validation-xmlvalidatorxsd` Example: `policies_to_export=com-snaplogic-policies-auth-authorizebyrole,com-snaplogic-policies-traffic-corspolicy`

Request header

Use the application/json content type with basic authentication (email and password) or a JWT. For examples, refer to Authentication.

Request body

None.

Response

The response is a JSON object containing information about the exported policies.

 {
  "0": [
    ...
  ],
  "class_id": "com-snaplogic-policy-export",
  "class_version": 1,
  "source_org": "..."
}

Note: If you use the Import APIM policies API to import these policies to another API or API version, you must provide the entire JSON object as the value for policies_to_import in the request body.

Error handling


HTTP status codes	Message	Resolution
400	May not have Read permission for org: {org_name}	Verify you have Read permission on the Org.
401	Unauthorized	Verify your credentials and permissions.
403	Cannot fetch policies for unsupported assets	Verify the path points to a supported asset type (API, API version, Proxy, or Proxy Endpoint).
404	The given path ({path}) doesn't exist	Verify the path is correct and the asset exists.
