Generic Hive Database Account

Overview

You can use this account type to connect Hive Snaps with data sources that use Generic Hive Database account.

Prerequisites

  • A Hive account

Limitations

  • The Hive Snap Pack does not validate with Apache Hive JDBC v1.2.1 jars or earlier because of a defect in Hive. HDP 2.6.3 and HDP 2.6.1 run on Apache Hive JDBC v1.2.1 jars.

  • To validate Snaps that must work with HDP 2.6.3 and HDP 2.6.1, use JDBC v2.0.0 jars.

Known issues

  • "Method not supported" error while validating Apache Hive JDBC v1.2.1 or earlier

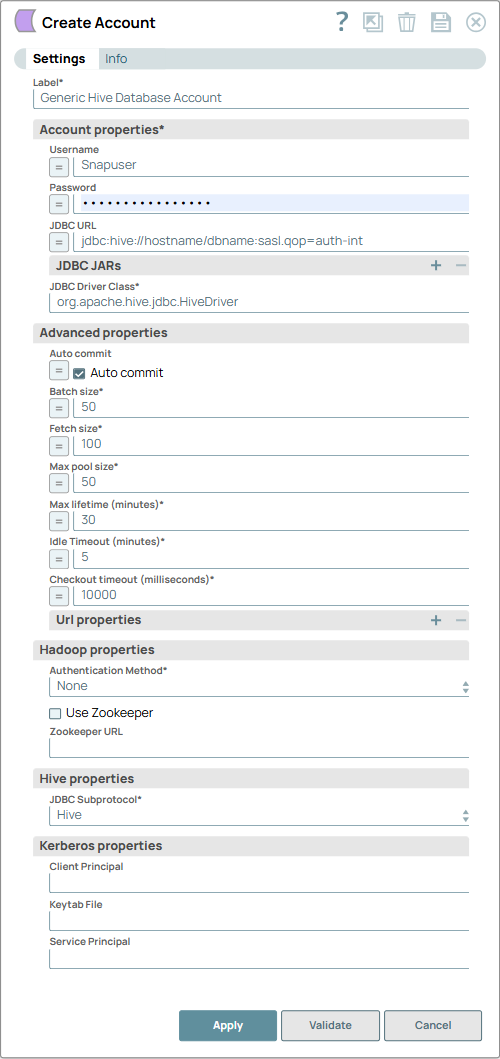

Account settings



Legend:
  • Expression icon (): Allows using JavaScript syntax to access SnapLogic Expressions to set field values dynamically (if enabled). If disabled, you can provide a static value. Learn more.
  • SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
  • Upload : Uploads files. Learn more.
Learn more about the icons in the Snap settings dialog.
Field / Field set Type Description
Label String

Required. Specify a unique label for the account.

Default value: N/A

Example: Generic Hive Database Account
Account properties
Username String/Expression Specify the username that is allowed to connect to the database. Username will be used as the default username when retrieving connections. The username must be valid in order to set up the data source.

Default value: N/A

Example: Snapuser
Password String/Expression Specify the password used to connect to the data source. Password will be used as the default when retrieving connections. The password must be valid in order to set up the data source.

Default value: N/A

Example: [email protected]
JDBC URL String/Expression Specify the URL of the JDBC database.

Default value: N/A

Example: jdbc:hive://hostname/dbname:sasl.qop=auth-int
JDBC JARs Use this fieldset to specify the JDBC JAR files to be loaded. A different driver binary for a driver must have a different name, the same name can not be reused for a different driver. If this property is left blank, a default JDBC driver will be loaded.

Enter the following JDBC jars to configure the Generic Hive Database account for the concerned cluster.

For HDP
  • Hive-jdbc-2.0.0.2.3.5.0-81-standalone.jar
  • Zookeeper-3.4.6.jar (Use this for setting up Hive with Zookeeper)
For CDH
  • hive_metastore.jar
  • hive_service.jar
  • hiveJDBC4.jar
  • libfb303-0.9.0.jar
  • libthrift-0.9.0.jar
  • TCLIServiceClient.jar
  • Zookeeper-3.3.6.jar (Use this for setting up Hive with Zookeeper)
For CDP/CDW

  • HiveJDBC42.jar

Note:

  • The JDBC driver can be uploaded through Designer or Manager and it is stored on a per-project basis. That is, only users with access to that project will see JDBC drivers uploaded. To provide access to all users of your org, place the driver in the /shared project.

  • See Advanced Configurations: Configuring Hive with Kerberos section below for a list of JAR files to be uploaded when configuring Hive with Kerberos.
JDBC Driver Class String Required. Specify the JDBC Driver class name.

For HDP Clusters: Enter the following value: org.apache.hive.jdbc.HiveDriver

For CDH/CDP Clusters:Enter the following value: com.cloudera.hive.jdbc4.HS2Driver

Default value: org.apache.hive.jdbc.HiveDriver

Example: jdbc:hive://hostname/dbname:sasl.qop=auth-int
Advanced properties
Auto commit Checkbox/Expression Select this checkbox to commit a batch immediately after the batch executes. So, only the current executing batch will be rolled back if the Snap fails. If you deselect, then a transaction is started for the Snap run and committed upon run success. The transaction is rolled back if the Snap fails.
Note: For a DB Execute Snap, assume that a stream of documents enter the input view of the Snap and the SQL statement property has JSON paths in the WHERE clause. If the number of documents are large, the Snap executes in more than one batches rather than executing one per each document. Each batch would contain a certain number of WHERE clause values. If Auto commit is turned on, a failure would only roll back the records in the current batch. If Auto commit is turned off, the entire operation would be rolled back. For a single execute statement (with no input view), the setting has no practical effect.

Default status: Selected
Batch size Integer/Expression Required. Specify the number of statements to execute at a time. Using a large batch size could use up the JDBC placeholder limit of 2100.

Default value: 50

Example: 10
Fetch size Integer/Expression Required. Specify the number of rows to fetch at a time when executing a query. Large values could cause the server to run out of memory.

Default value: 100

Example: 100
Max pool size Integer/Expression Required. Specify the maximum number of idle connections a pool will maintain at a time.

Default value: 50

Example: 10
Max lifetime (minutes) Integer/Expression Required. Specify the minutes a connection can exist in the pool before it is destroyed.

Default value: 30

Example: 25
Idle Timeout (minutes) Integer/Expression Required. Specify the number of minutes for a connection to remain idle before a test query is run. This helps keep database connections from timing out.

Default value: 5

Example: 4
Checkout timeout (milliseconds) Integer/Expression Required. Specify the number of milliseconds to wait for a connection to be available in the pool. Zero waits forever. After set time, then an exception will be thrown and the pipeline will fail.

Default value: 10000

Example: 10000
Url properties Use this fieldset to specify properties to use in JDBC Url. These properties will need to be configured when setting up SSL connection. See Advanced Configurations: Configuring Hive with SSL section below for details.
Url property name String/Expression Specify a name for the URL property to be used by the account.

Default value: N/A

Example: maxAllowedPacket

Url property value String/Expression Specify a value for the URL property name.

Default value: N/A

Example: 1000
Hadoop properties
Authentication method Dropdown list Required. Select the Authentication method to use when connecting to the Hadoop service.

  • None: Allows connection even without the Username and Password

  • Kerberos: Allows connection with Kerberos details such as Client Principal, Keytab file, and Service principal

  • User ID: Allows connection with Username only

  • User ID and Password: Allows connection with Username and Password

Default value: None.

Example: Kerberos
Use Zookeeper Checkbox Select this checkbox if you want the Snap to use Zookeeper to locate the Hadoop service instead of a specific hostname. If the checkbox is selected, use Zookeeper to resolve the location of the database instead of using the hostname field in the standard block.
Note:

When using Zookeeper in combination with a Hive account, add the Zookeeper JAR package file on the Groundplex associated with that Hive account. The version of Zookeeper on the Groundplex should be the same as the version your Hive account uses.

For HDP users, in addition to the zookeeper.jar package, you might also require the curator-client-X.X.X.jar and curator-framework-X.X.X.jar package files on the Groundplex.

Default status: Deselected
Zookeeper URL String Specify the URL of the Zookeeper service. Zookeeper URL formats are different for CDH and HDP.
  • For HDP:
    • Format: hostname1:port,hostname2:port/;serviceDiscoveryMode=zooKeeper;zooKeeperNamespace=hiveserver2
    • Example: na77sl-ihdc-ux02011.clouddev.snaplogic.com:2181,na77sl-ihdc-ux02012.clouddev.snaplogic.com:2181,na77sl-ihdc-ux02013.clouddev.snaplogic.com:2181/;serviceDiscoveryMode=zooKeeper;zooKeeperNamespace=hiveserver2
  • For CDH:
    • Format: zk=hostname1:port,hostname2:port/hiveserver2
    • Example: Zk = jdbc:hive2://cdhclusterqa-1-
      1. cloudev.snaplogic.com:2181.cdhclusterqa-1-
      2. clouddev.snaplogic.com:2181.cdhclusterqa-1-
      3. clouddev.smaplogic.com:2181/hiveserver2
Note: This is NOT the URL for the Hadoop service being sought.

Default value: N/A

Example: hostname1:port,hostname2:port/;serviceDiscoveryMode=zooKeeper;zooKeeperNamespace=hiveserver2
Hive properties
JDBC Subprotocol Dropdown list Required. Specify the JDBC Subprotocol to be used. This is required when the Authentication method is Kerberos. Available options are:

  • Hive

  • Impala

Default value: Hive

Example: Impala
Kerberos properties Use this fieldset to configure information required for the Kerberos authentication. These properties must be configured if you select Kerberos in the Authentication method property.
Client Principal String Specify the principal used to authenticate to Kerberos KDC (Kerberos Key Distribution Center - Network service used by the clients and servers for authentication).

Default value: N/A

Example: [email protected]
Keytab File String Specify the Keytab file (file used to store encryption keys) used to authenticate to Kerberos KDC.

Default value: N/A

Example: etc/krb5.keytab
Service Principal String Specify the principal used by an instance of a service. For example,

  • If you are connecting to a specific server. use: hive/host@REALM or impala/host@REALM

  • If you are connecting (more common for the Snap) to any compliant host (see Use Zookeeper property's description) in which case the principal is: 'hive/_HOST@REALM' or 'impala/_HOST@REALM'.

Default value: N/A

Example: hive/host@REALM or impala/host@REALM
