Script

Overview

You can use the Script Snap to execute Javascript, Python, or Ruby scripts using the JVM ScriptEngine mechanism. Accounts are not required to work with this Snap.

Note:

You cannot create external process (like the popen function) on Cloudplex through the Script Snap or a Custom Snap. While external process creation on Groundplex is possible. You can request [email protected] to disable this if required.



  • Write-type Snap
  • Works in Ultra Tasks if you pass the original document to the 'write()' method for the output view.
For example, in the JavaScript template, the body of the loop is per the following:
// Read the next document, wrap it in a map and write out the wrapper
var doc = this.input.next();
var wrapper = {
    "original" : doc
}
this.output.write(doc, wrapper);
Note:
The following two arguments in the output.write() method:
  • The first argument is the input document—doc.

  • The second argument is the data for the output document—wrapper.

Both the arguments are required so that the lineage of the output document can be tied to the input document. This is important for an Ultra pipeline responding to web requests. The initial request becomes an input document to the first Snap in the SnapLogic pipeline, eventually resulting in an output document from the last Snap in the pipeline. The pipeline must maintain the lineage of each document so that each response can be correlated to the request that generated it.

Limitations and known issues

For JavaScript, objects written to the output view should be composed of serializable Java types. Some downstream Snaps, such as the Copy Snap, require this. To write out a map to the output view in a JavaScript, use a Java Map implementation, such as HashMap or LinkedHashMap, per the following:
importClass(java.util.LinkedHashMap);
...
var inDoc = this.input.next();
var outDoc = new LinkedHashMap();
outDoc.put("original", inDoc);
this.output.write(inDoc, outDoc);

Breaking change

The following breaking changes apply to the pipelines using the Script Snap (or the deprecated Execute Script Snap) with the Python engine.

To implement Python in the Script Snap, we use Jython. We have upgraded the Jython engine from version 2.7-b3 (a beta version from 2014) to version 2.7.2(March 2020). The following are the resultant issues and workarounds:
  • An open bug in 2.7 introduced a backward-incompatible change in the SnapLogic platform wherein the Jython engine automatically converts BigInteger values to primitive long values. This impacts all your scripts that perform numeric manipulation of integer values from documents (SnapLogic uses the BigInteger type to represent integers in documents). Your pipelines and Snaps with the Script (or the deprecated Execute Script) that use numeric manipulation scripts with integer or BigInteger data type may fail during execution. We recommend you prospectively replace integer or BigInteger values with long values.

Example:

sum = a.intValue() + b.intValue()Here, a and b are of BigInteger type that now fail as Jython 2.7.2 automatically and transparently calls longValue() on any BigInteger value it encounters. So a and b would need to use the long and not BigInteger type.

The known fix is to rewrite the above calculation as sum = a + b by removing occurrences of .intValue() or .longValue() from your Python scripts.
  • Before the 4.22 release (August 2020), when using the Script Snap with the Scripting language option selected as Python, requesting a key that did not exist in a dictionary (for example, my_dict['missing_key']) would return None. Starting from the 4.22 release, the same request returns a KeyError exception. If you need to continue returning None, use the .get(key) method instead (for example, my_dict.get['missing_key']).

  • - zlib.compress():
 The zlib library compresses the JSON files retrieved from the SnapLogic APIs and backs-up Pipelines and accounts to a database. The following Python code, when trying to compress displays an ascii … ordinal not in range(128) error.

    Original code: in_doc["json"] = zlib.compress(in_doc["json"])

    Fix: in_doc["json"]
    =
        zlib.compress(in_doc["json"].encode("utf-8"))
  • {dictionary}.values().toArray()[i]:
Before the 4.22 release (August 2020), to subscript a {dictionary}.values() method, you had to append the toArray() method to values(); else, you would see the
    Failure: ‘java.util.LinkedHashMap$LinkedValues’ object is
              unsubscriptable
    error. After the 4.22 release, toArray() returns Failure: ‘list’ object has no attribute ‘toArray’. However, the requirement for toArray() is no longer necessary for the subscript.

    Original code: sLine = data.values().toArray()[0]

    Fix: sLine = data.values()[0]

Snap views

View Description Examples of upstream and downstream Snaps
Input This Snap has at most one document input view.
Output This Snap has at most one document output view.
Error

Error handling is a generic way to handle errors without losing data or failing the Snap execution. You can handle the errors that the Snap might encounter when running the pipeline by choosing one of the following options from the When errors occur list under the Views tab. The available options are:

  • Stop Pipeline Execution Stops the current pipeline execution when an error occurs.
  • Discard Error Data and Continue Ignores the error, discards that record, and continues with the remaining records.
  • Route Error Data to Error View Routes the error data to an error view without stopping the Snap execution.

Learn more about Error handling in Pipelines.

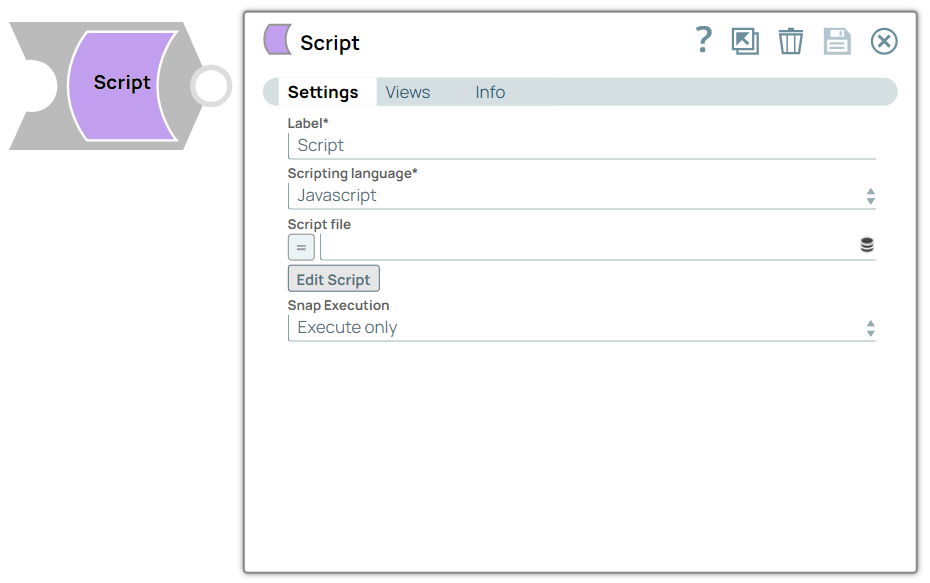

Snap settings

Legend:
  • Expression icon (): Allows using pipeline parameters to set field values dynamically (if enabled). SnapLogic Expressions are not supported. If disabled, you can provide a static value.
  • SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
  • Upload : Uploads files. Learn more.
Learn more about the icons in the Snap settings dialog.
Field / Field set Type Description
Label String

Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline.

Default value: Script

Example: Script
Scripting Language Dropdown list Required. Choose a language for the script. The available options are:
  • Javascript
  • Python
  • Ruby

Default value: Javascript

Example: Ruby

Script file String/Expression Specify or select a script file that implements the ScriptHook interface. This field can be used if the script file is present in the SLDB. Click on the Upload icon to upload the required script file from the SLDB.
Note: This field accepts pipeline parameters as well as upstream parameters provided the script file is present in the SLDB.

Default value: None.

Example: transform.py

Edit Script Button Click the Edit Script button to edit a script within the Snap instead of through an external file. From this page, you can export the script to a file in a project, import a script, or generate a template for the selected Scripting Language.
Note:
  • Once you select the language of your choice, click the Edit Script button to open the script editor.

  • By default, the editor is populated with a basic script you can modify.

  • The basic script reads an input document, wraps it in a map, and writes the wrapper to the output view. If a script file is present in the SLDB, you can upload it to the Snap using the Script file property; this property also accepts pipeline parameters and upstream parameters.

Default value: A skeleton for the chosen scripting language. You can click the Generate Template link to regenerate the skeleton.

Snap execution Dropdown list
Choose one of the three modes in which the Snap executes. Available options are:
  • Validate & Execute: Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime.
  • Execute only: Performs full execution of the Snap during pipeline execution without generating preview data.
  • Disabled: Disables the Snap and all Snaps that are downstream from it.

Default value: Execute only

Example: Validate & Execute

ScriptHook Interface

Note: This example requires that an input view be defined for it to work.
package com.snaplogic.scripting.language;

import java.util.Iterator;

/**
 * ScriptHook is the interface that should be implemented as a callback mechanism for
 * ExecuteScript snap to call into the script.
*/

public interface ScriptHook {

    /**
     * Scripts should implement this method to provide application logic.
     */
    void execute();

    /**
     * Scripts should implement this method to cleanup any resources allocated in execute().
     */
    void cleanup();

    /**
     * Input is interface that is used by the script to read input from the snap's input view.
     */
    interface Input extends Iterator<Object> {
    }

    /**
     * Output is interface that is used by the script to send output data to the snap output view.
     */
    interface Output {

        /**
         * Write the data to the snap output.
         *
         * @param data
         */
        void write(Object data);

        /**
         * Write the data that was generated for the given incoming data to the snap output.
         * This method carries the lineage data forward.
         *
         * @param incomingData
         * @param data
         */
        void write(Object incomingData, Object data);
    }

    /**
     * Error is interface that is used by the script to send error data to snap error view.
     */
    interface Error extends Output {
    }
}

Importing Third-Party Libraries

While SnapLogic does not support importing third-party libraries directly using the Script Snap, you can add their package/JAR files in a directory in your Groundplex nodes and then import them using this Snap. For example, consider that you have added the JAR file, mongo-java-driver-3.12.7.jar, in the directory /opt/snaplogic/ext_jar/. For your Python scripts to be able to use this library, create a file named .jython in the home directory of the user running the JCC process. The .jython file should specify a value for the python.path, as follows:
python.path=/opt/snaplogic/ext_jar/mongo-java-driver-3.12.7.jar
Note:

You can find the user’s home directory (user running the jcc) in the jcc filename “jcc_output.log" when you search with user.home. If you have multiple jar files, you can add all the paths in the same .jython file separated by colon, as shown below:

python.path=jar1_path:jar2_path:jar3_path

Here’s an example of Python script that imports and uses code from this library. Use the cleanup method to ensure that the mongoClient object is appropriately closed.
from com.snaplogic.scripting.language import ScriptHook
from com.mongodb.client import MongoClients
class TransformScript(ScriptHook):
    def __init__(self, input, output, error, log):
        self.input = input
        self.output = output
        self.error = error
        self.log = log
    def execute(self):
        try:
            self.mongoClient = MongoClients.create("mongodb://localhost:27017/?readPreference=primary&ssl=false")
            for d in self.mongoClient.listDatabases():
                self.output.write(d)
        except Exception as e:
            errDoc = {
                'error' : str(e.args)
            }
            self.error.write(errDoc)
    def cleanup(self):
        self.mongoClient.close()
hook = TransformScript(input, output, error, log)
Warning:
  • The paths listed in python.path can be .jar files (Java libraries), directories containing Python libraries (compatible with Python 2.7), or .zip files packaging those Python libraries. Learn more about using the .jython file: Jython Registry.

  • The python.path variable is Jython's version of CPython’s PYTHONPATH variable. Refer to the official Python documentation for more about the PYTHONPATH.

  • If you are using multiple Groundplex nodes, you must add the package/JAR files in each node.

  • You can import third party libraries only on Groundplex nodes.

Additional Information

The document data can be converted to and from the JSON data interchange language. By convention, the root of every document is conceptually a JSON object—a collection of name-value pairs, where each name is a string, and each value is an object, an array, a string, a number, a boolean, or a null. Every modern programming language has a corresponding type for this concept:

Script Type
Java Map
Python Dictionary
Ruby Hash
JavaScript Object

When writing a script for the Script Snap, each input document is an object that implements the Java Map interface and can be accessed as an instance of the scripting language’s native object class, such as a Python dictionary.

To write an output document, your script must create a new object. In Python or Ruby, you can create an instance of the required language’s native object type, a Python dictionary, or a Ruby hash. The values you add to these objects must be one of the JSON-compatible types, including objects, arrays, strings, numbers, and booleans. You can use the corresponding array or list type of the language for an array. Objects written to the output view should be of Java types. Some downstream Snaps require this, for example, the Join Snap. To write a Python map to the output view in a Python script, convert the map to a Java HashMap.

General Instructions for all Scripting Languages

The script author should declare a global variable named 'hook' (note that this variable name is case-sensitive). The Script engine makes the following four global variables available to the script as defined in the Script#ScriptHook Interface section:
  • The variable input is of type ScriptHook.Input

  • The variable output is of type ScriptHook.Output

  • The variable error is of type ScriptHook.Error

  • The variable log is of type org.slf4j.Logger

Type defined in the schema maps to the Java class per the following:

Data Type Java Class
NUMBER java.math.BigDecimal
INTEGER java.math.BigInteger
STRING java.lang.String
DATETIME org.joda.time. DateTime
LOCALDATETIME org.joda.time. LocalDateTime
BOOLEAN java.lang.Boolean
DATE org.joda.time.LocalDate
TIME org.joda.time.LocalTime
BINARY java.lang.Byte
TABLE java.util.List
ANY java.lang.Object
COMPOSITE java.util.Map

Examples
