Multipart Reader
Overview
You can use this Snap to split a MIME "multipart" binary stream into separate binary documents. A multipart stream is typically generated by HTTP clients, such as web browsers, that need to transfer multiple blobs of data as a single message.
Transform-type Snap
Does not support Ultra Tasks
Snap views
| View | Description | Examples of upstream and downstream Snaps |
|---|---|---|
| Input | This Snap has exactly one binary input view. Binary documents from a Snap with a binary output view or the input view can be left unlinked and used with a Triggered Task to accept POST/PUT requests. |
|
| Output | This Snap has exactly one binary output view. The binary documents that made up the multipart stream. The headers for the binary output documents are taken from the headers in the parts themselves along with the header properties defined in this Snap. If the binary input document is not a multipart stream, it is passed to the output view without processing. |
|
| Error |
Error handling is a generic way to handle errors without losing data or failing the Snap execution. You can handle the errors that the Snap might encounter when running the pipeline by choosing one of the following options from the When errors occur list under the Views tab. The available options are:
Learn more about Error handling in Pipelines. |
|

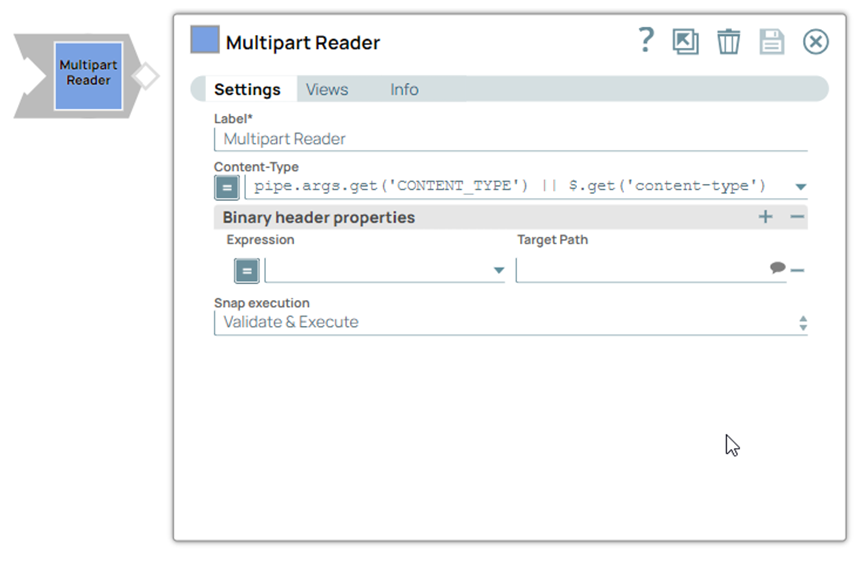

Snap settings
- Expression icon (
): Allows using
pipeline parameters to set field values dynamically (if enabled). SnapLogic Expressions
are not supported. If disabled, you can provide a static value. - SnapGPT (
): Generates SnapLogic Expressions
based on natural language using SnapGPT. Learn
more. - Suggestion icon (
): Populates a
list of values dynamically based on your Snap configuration. You can select only one
attribute at a time using the icon. Type into the field if it supports a comma-separated
list of values. - Upload
: Uploads files. Learn more.
| Field / Field set | Type | Description |
|---|---|---|
| Label | String | Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline. Default value: Multipart Reader Example: Multipart Reader |
| Content-Type | String/Expression | Specify the value of the Content-Type header for the binary document. The value of
this header is needed to determine whether or not the binary document is, in fact, a
multipart stream and what "boundary" is used to separate the parts of the stream.
Note:
The default value for this property is an expression that fetches the content type from
the pipeline parameters (as passed when invoked via a Triggered Task) or the binary input document header.
Default value:
|
| Binary Header Properties | The binary output document header can be modified by specifying properties in this table property. The headers are initially populated with the headers from the parts in the stream. These properties allow you to pass the original multipart input document to the binary output documents. | |
| Expression | Expression | Specify the expression value to insert into the header. When evaluated, this expression, computes the value to insert.
Default value: N/A |
| Target path | String/Suggestion | Specify the JSON path where the value should be set in the header.
Default value: N/A |
| Snap execution | Dropdown list |
Choose one of the three modes in
which the Snap executes. Available options are:
Default value: Execute only Example: Validate & Execute |
