Filter

Overview

The Filter Snap filters a document stream based on a Filter expression. If the filter expression evaluates to true, the document is passed through. If the filter expression evaluates to false, the document is dropped in the stream. Expressions that do not evaluate to a boolean value will cause the pipeline to fail. Learn more about Understanding Expressions in SnapLogic



Note:

  • The Router and Filter Snaps are similar, but the Filter Snap handles only a single stream. The Router Snap is designed to handle multiple output views.

  • You do not require accounts to use this Snap.
Note:

When using the Filter Snap in an Ultra Task pipeline, the pipeline returns an empty response if the Snap filters the incoming document.

Snap views

View Description Examples of upstream and downstream Snaps
Input The data the input document to filter.
Output The filtered document
Error

Error handling is a generic way to handle errors without losing data or failing the Snap execution. You can handle the errors that the Snap might encounter when running the pipeline by choosing one of the following options from the When errors occur list under the Views tab. The available options are:

  • Stop Pipeline Execution Stops the current pipeline execution when an error occurs.
  • Discard Error Data and Continue Ignores the error, discards that record, and continues with the remaining records.
  • Route Error Data to Error View Routes the error data to an error view without stopping the Snap execution.

Learn more about Error handling in Pipelines.

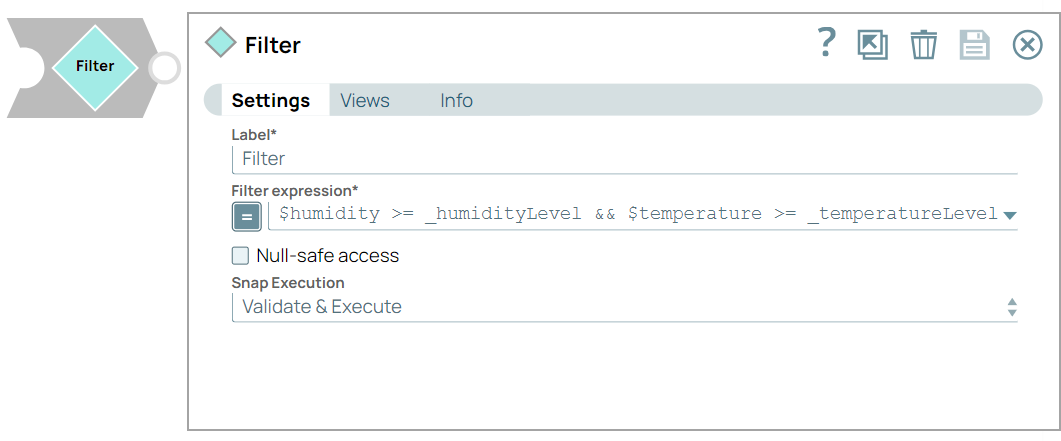

Snap settings

Legend:
  • Expression icon (): Allows using pipeline parameters to set field values dynamically (if enabled). SnapLogic Expressions are not supported. If disabled, you can provide a static value.
  • SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
  • Upload : Uploads files. Learn more.
Learn more about the icons in the Snap settings dialog.
Field / Field set Type Description
Label String

Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline.

Default value: Filter

Example: Filter
Null-safe access Checkbox Select this checkbox to consider the missing data or empty value as null when accessing the source path.

If you deselect this checkbox, the Snap fails and displays error in case there is missing data or empty value when accessing the source path.

Default status: Deselected
Filter Expression Dropdown list/Expression Required. Enter the expression to filter the documents. If the expression evaluates to true, the document is passed through. Else, the document is not passed through.

If the expression does not evaluate to a boolean, then the pipeline fails.

Default value: None.

Examples:

$first_name = "Joe"

$people[0].age > 15

$Customers.contains(_customer)

startsWith($description, "Snap") && $quantity < 100
Snap execution Dropdown list
Choose one of the three modes in which the Snap executes. Available options are:
  • Validate & Execute: Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime.
  • Execute only: Performs full execution of the Snap during pipeline execution without generating preview data.
  • Disabled: Disables the Snap and all Snaps that are downstream from it.

Default value: Validate and Execute

Example: Execute only

Example:
