REST In-memory OAuth2 Account

Overview

You can use this account type to connect REST Snaps with data sources that support Client Credentials OAuth2 Authentication. This account should be used when the access_tokens provided by the Client Credentials grant type OAuth2 Authentication are short-lived (less than 30 minutes in time) as the account stores them in memory for reuse.

Prerequisites

  • Client ID.
  • Client Secret.

Account settings

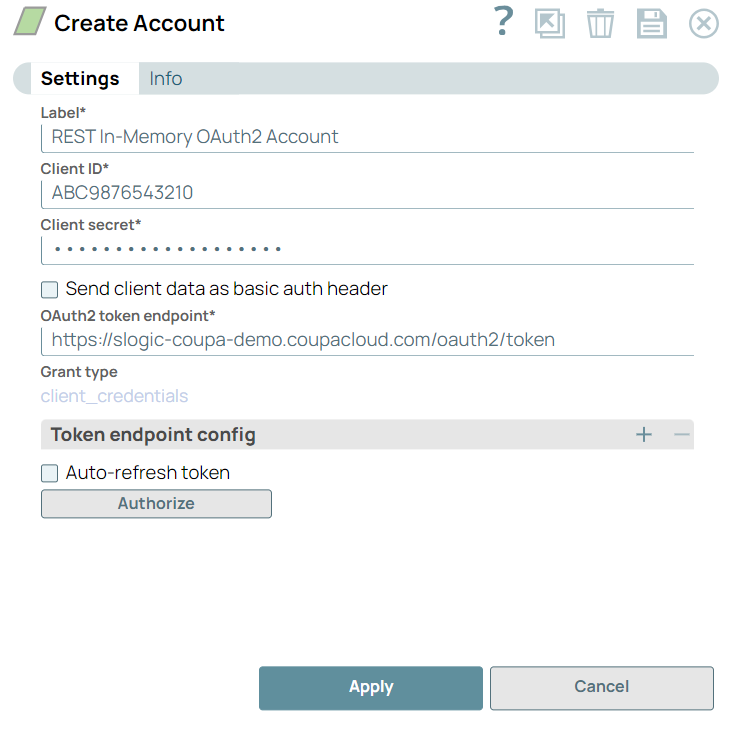

REST In-memory OAuth2 Account

Legend:
  • Expression icon (): Allows using JavaScript syntax to access SnapLogic Expressions to set field values dynamically (if enabled). If disabled, you can provide a static value. Learn more.
  • SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
  • Upload : Uploads files. Learn more.
Learn more about the icons in the Snap settings dialog.
Field / Field set Type Description
Label String Required. Specify a unique label for the account.

Default: None

Example: REST In-memory OAuth2 Account
Client ID String Required. Specify the client ID associated with the account. You can create the Client ID as advised by your application provider.

Default value: N/A

Example: p364e45x-953x-460p-9pb0-934xep16p693
Client secret String Required. The client secret associated with the account. You can create the client secret as advised by your application provider.

Default value: N/A

Example: N/A
Send Client Data as Basic Auth Header Checkbox Select this checkbox to send the client information as a header to the OAuth endpoint.

Default value: Deselected

OAuth2 Token String Required. Specify the URL of the endpoint (in the following format) that retrieves the token for an authenticated account. https://<endpoint name>.endpoint.com/oauth_token.
Note: When the Snap encounters 401 or 403 errors, this account generates a new token and updates cache.

Default value: N/A

Example: https://snaplogic-coupa-demo.coupacloud.com/oauth2/token
Grant Type By default, this account uses Client Credentials Grant Type to obtain an access token using the Client ID and Client secret through the token endpoint URL.
Token endpoint config Use this field set to provide custom properties for the OAuth2 token endpoint.
Token endpoint parameter String Specify additional token endpoint parameters.

Default value: N/A

Example: Scope
Token endpoint parameter value String Specify the value associated with the optional endpoint parameter defined above.

Default value: N/A

Example: core.accounting.read core.approval.read
Auto-refresh token Checkbox Select this checkbox to refresh the token automatically. If you deselect this field, the token expires and is not refreshed automatically.

Default value: Deselected

REST In-memory OAuth2 Account Vs. REST OAuth2 Account

REST In-memory OAuth2 Account REST OAuth2 Account
The REST In-memory OAuth2 Account supports only client_credentials Grant type. The REST OAuth2 Account supports the following authorization Grant types:
  • client_credentials
  • password
  • authorization_code
The REST In-memory OAuth2 Account is suitable for scenarios where the access token expiration time is less than 30 minutes. This account type efficiently manages tokens within the pipeline and Snap, ensuring a more localized token handling approach. The REST OAuth2 Account is ideal for situations where access token expirations are 1 hour or more. If the OAuth2 service supports refresh tokens, enabling the Auto Refresh token checkbox lets Snaplogic automatically refresh tokens before they officially expire.
