Propagate a Schema Backward

The project, PE_Backward_Schema_Propagation_Contacts, demonstrates the schema that suggests a feature of the Pipeline Execute Snap. It contains the following files:

  • PE_Backward_Schema_Propagation_Contacts_Parent

  • PE_Backward_Schema_Propagation_Contacts_Child

  • contact.schema (Schema file)

  • test.json (Output file)

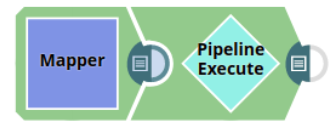

The parent pipeline is shown below:

Download the parent pipeline.

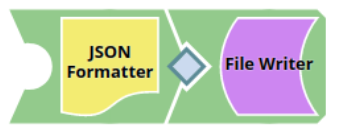

The child pipeline is as shown below:

Download the child pipeline.

The Pipeline Execute Snap is configured as:

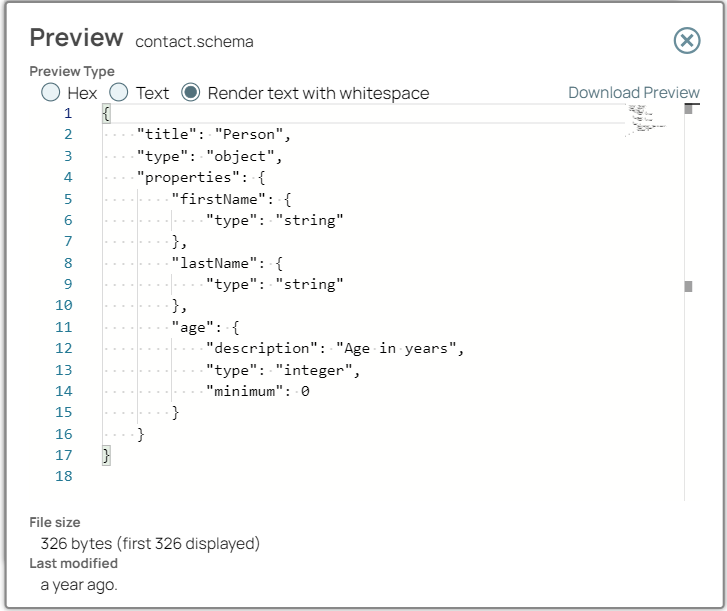

The following schema is provided in the JSON Formatter Snap. It has three properties - $firsName, $lastName, and $age. This schema is back propagated to the parent pipeline.

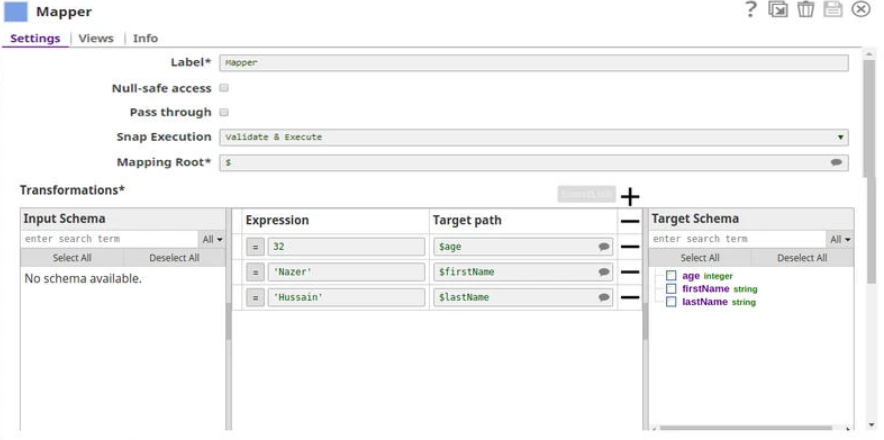

The parent Pipeline must be validated in order for the child Pipeline's schema to be back-propagated to the parent Pipeline. Below is the Mapper Snap in the parent pipeline:

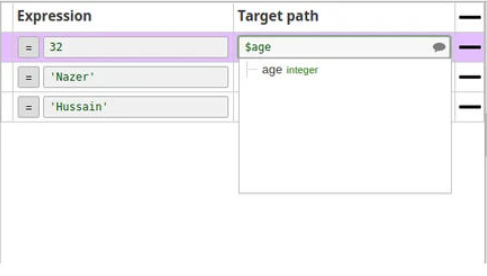

Notice that the Target Schema section shows the three properties of the schema in the child pipeline:



On execution, the data passed in the Mapper Snap will be written into the test.json file in the child Pipeline.

Note: To reuse the example project ZIP files:
  1. Download and import the project ZIP file into your Environment.
  2. Open each SLP file from the project in the Designer.
  3. Configure Snap accounts.
  4. Provide Pipeline parameters, if any.
