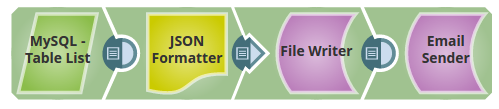

In this pipeline, the MySQL Table List Snap lists all the tables from a schema, formats to the JSON, writes to an output view and sends the result to an email address via the Email Sender Snap.

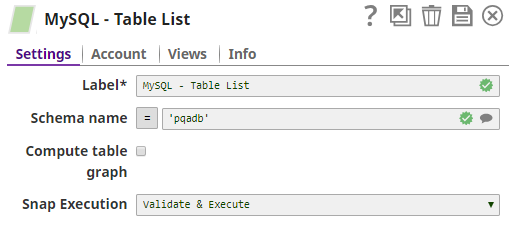

The MySQL Table List lists all the tables under the schema psadb.

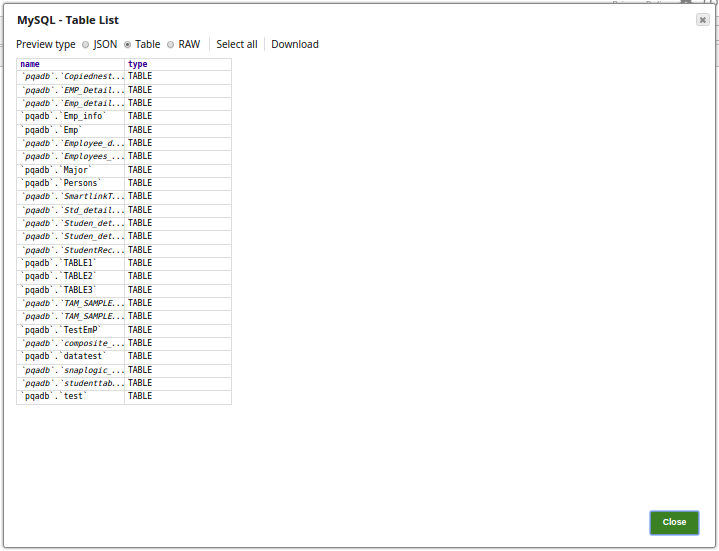

The output preview from the MySQL Table List Snap is as displayed below:

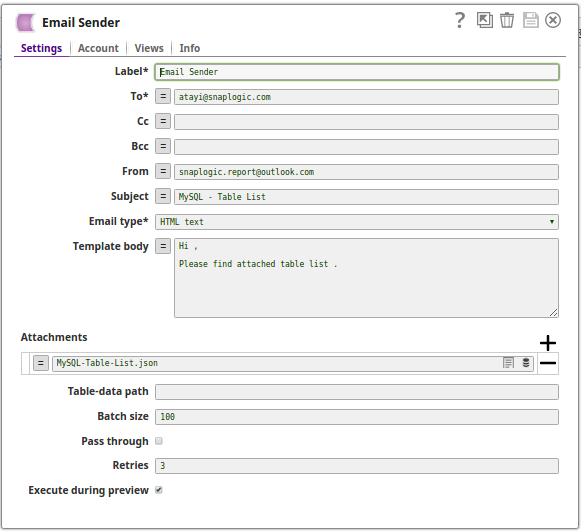

The output view from MySQL Table List is formatted to JSON and written to a file using the JSON Formatter and File Reader Snap respectively. The result is sent to an email address as an attachment using the Email Sender Snap. The settings of the Email Sender Snap and the email are as displayed below:
