Tc Relation Get: Simple input / output example

This example shows the input and output documents for reading the relations of an object.

In the snap configuration following values has to fed into fields:

  • $uid to Object ID
  • $relationDocument to Relation

UIDs in Teamcenter are as the name says UNIQUE. The UIDs in the example only exist in our Teamcenter system as expected for our example. Same is valid for Adapter ID "_id" since its base is the UID.

[
  {
    "uid": "AWOAgogw7hAnmD",
    "relationDocument": "Fnd0IsDescribedByDocument"
  }
]

Snap configuration

Snap output

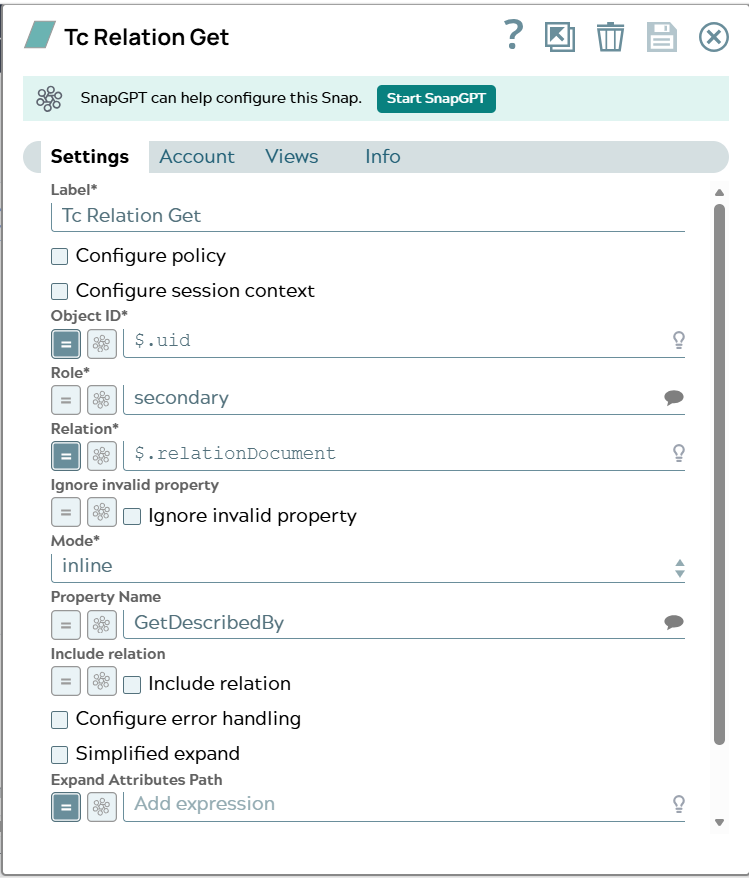

Settings of Snap matching information of input document.

The JSON document provides an example of a Tc Relation Get output for Relation “Fnd0IsDescribedByDocument” and “inline” configuration.

[
  {
    "uid": "AWOAgogw7hAnmD",
    "relationDocument": "Fnd0IsDescribedByDocument",
    "cmRelation": "",
    "GetDescribedBy": [
      {
        "_id": "TC*DocumentRevision*null***QuJAgogY7hAnmD",
        "checked_out": " ",
        "fms_tickets": [],
        "fnd0IRDCUsed": "",
        "has_variant_module": null,
        "is_IRDC": false,
        "is_vi": false,
        "items_tag": "TC*Document*null***QuFAgogY7hAnmD",
        "items_tag_DISPLAY": "051592-Clutch",
        "last_mod_date": "2025-01-21T11:53:05Z",
        "object_desc": "Document for correlating Part",
        "object_string": "051592/A;1-Clutch",
        "object_type": "DocumentRevision",
        "object_type_DISPLAY": "Document Revision",
        "owning_group": "TC*Group*null***QBFAAAA47hAnmD",
        "owning_group_DISPLAY": "Engineering",
        "owning_site": null,
        "owning_site_DISPLAY": "",
        "owning_user": "TC*User*null***A6CAAAx07hAnmD",
        "owning_user_DISPLAY": "ecs1 (ecs1)",
        "process_stage_list": [],
        "release_status_list": [],
        "revision_number": 0,
        "UID": "QuJAgogY7hAnmD",
        "view": []
      }
    ]
  }
]
