Tc BOM Structure Where Used: Get Where Used information of child

This example shows the input document that expands the usage structure of a BOM child node.

In the snap configuration following values has to fed into fields

  • $uid to Object ID
[
  {
    "uid" : "AiNAAJE17hAnmD"
  }
]

UIDs in Teamcenter are as the name says UNIQUE. The UIDs in the example only exist in our Teamcenter system as expected for our example. Same is valid for Adapter ID "_id" since its base is the UID.

The output document of Tc Snap hasJSON list object “result” including one Part Revision which has BOM child defined by input uid value and a sub object “_rel” including relation information.

Snap configuration

Snap output

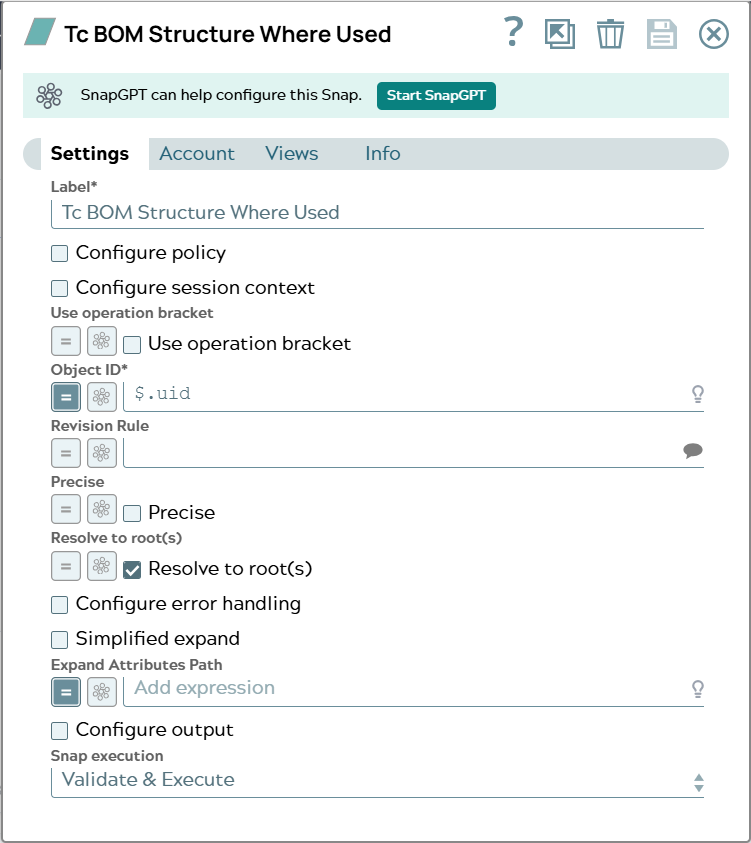

Settigns of Snap matching information of input document.

[
  {
    "result": [
      [
        {
          "_id": "TC*Part Revision*null***AWPAAJE17hAnmD",
          "checked_out": " ",
          "fms_tickets": [],
          "fnd0IRDCUsed": "",
          "has_variant_module": null,
          "is_IRDC": false,
          "is_vi": false,
          "items_tag": "TC*Part*null***AGLAAJE17hAnmD",
          "items_tag_DISPLAY": "052721-SL Test P1",
          "last_mod_date": "2026-03-05T09:50:11Z",
          "object_desc": "Description 1",
          "object_string": "052721/A;1-SL Test P1",
          "object_type": "Part Revision",
          "object_type_DISPLAY": "Part Revision",
          "owning_group": "TC*Group*null***QBFAAAA47hAnmD",
          "owning_group_DISPLAY": "Engineering",
          "owning_site": null,
          "owning_site_DISPLAY": "",
          "owning_user": "TC*User*null***A6CAAAx07hAnmD",
          "owning_user_DISPLAY": "ecs1 (ecs1)",
          "process_stage_list": [],
          "release_status_list": [],
          "revision_number": 0,
          "UID": "AWPAAJE17hAnmD",
          "view": [
            "TC*Part*null***AiJAAJE17hAnmD",
            "TC*Part*null***AqNAAJE17hAnmD",
            "TC*Part*null***A2BAAJE17hAnmD",
            "TC*Part*null***A_FAAJE17hAnmD"
          ],
          "_rel": {
            "_id": {
              "value": "TC*WhereUsedRelation*null***AiNAAJE17hAnmD::::AWPAAJE17hAnmD",
              "idData": {
                "level": "1",
                "persistent": "false"
              }
            },
            "level": "1",
            "_rel_role": "",
            "_rel_name": "WhereUsedRelation"
          }
        }
      ]
    ],
    "original": {
      "uid": "AiNAAJE17hAnmD"
    }
  }
]
