Salesforce Lookup

Overview

The Salesforce Lookup Snap provides the ability to format WHERE clause from input document stream for a SOQL (Salesforce Object Query Language) query.

See Introduction to SOQL and SOSL for more information.

Note: To use newer Salesforce objects, use the latest API versions where those objects are available.


  • This is a Read-type Snap.
  • Works in Ultra Tasks when the Batch size is set to 1.

Supported Accounts

Prerequisites

  • A valid account with the required permissions.

Snap views

Type Description Examples of upstream and downstream Snaps
Input

This Snap has exactly one input view and receives documents in the view.

Expressions in the Object type, Output fields, Conditions and Correlation ID properties can be evaluated with values from the input view during the execution.
Output

This Snap has exactly one output view and writes documents to the view.
Learn more about Error handling.

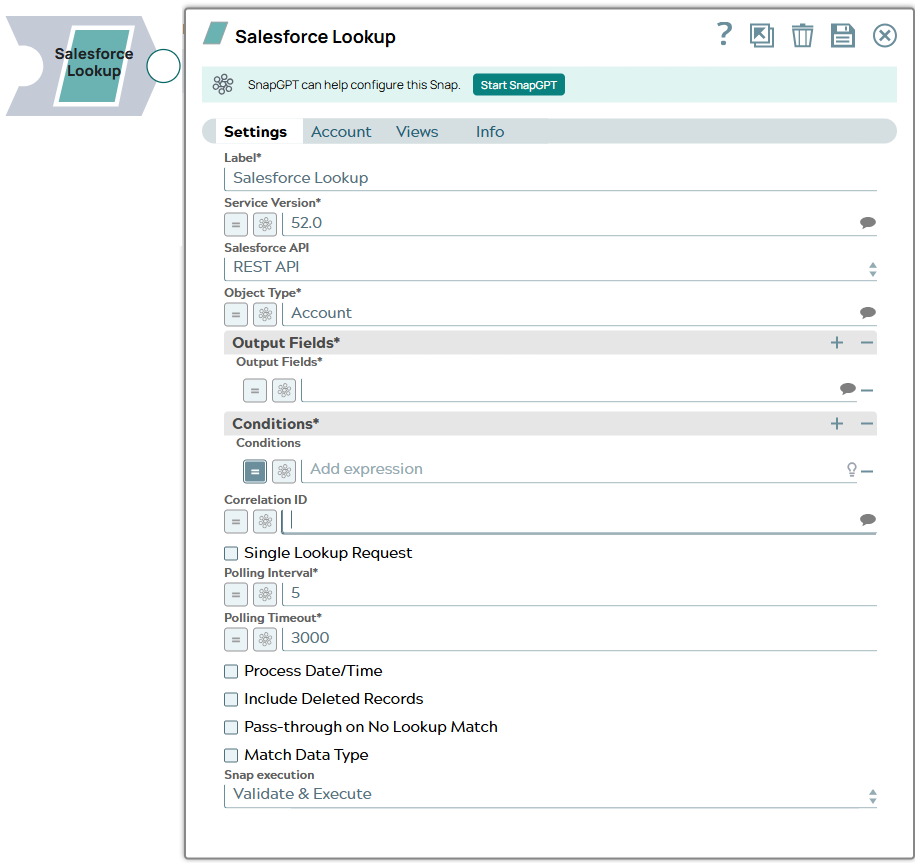

Snap settings

Legend:
  • Expression icon (): Allows using pipeline parameters to set field values dynamically (if enabled). SnapLogic Expressions are not supported. If disabled, you can provide a static value.
  • SnapGPT (): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
  • Upload : Uploads files. Learn more.
Learn more about the icons in the Snap settings dialog.
Field/Field set Description
Label

String

Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline.

Default value: Salesforce Lookup

Example: Salesforce Lookup
Service Version

String/Expression

Required. Specify the version number associated with the Salesforce service that you want to connect to. Alternatively, click the Suggestion icon to fetch the list of versions and select the desired version.

Default value: 52.0

Example: 41.0
Salesforce API

Dropdown list

Required. This property sets the Salesforce API mode to Bulk API or REST API during the pipeline execution.

Default value: REST API

Example: Bulk API
Object Type

String/Expression/ Suggestion

Required. Specify the name of the Salesforce object or select one from the suggested list.

Note: This Snap does not support Net Zero Cloud Salesforce objects.

Default value: Account

Example: Account
Output Fields Use this field set to define the field names for the Salesforce Object Query Language (SOQL) SELECT statement. Specify each output field as a separate row. Click the add icon to add a new row.
Output Fields

String/Expression/ Suggestion

Required. Specify a list of field names for the SOQL SELECT statement. Alternatively, click the Suggestion icon to fetch the list of field names associated with the object type and select a field.

The value for this field can also be an expression that will be evaluated against the values configured in Pipeline parameters only.

Default value: N/A

Example: Id, Name, ShippingAddress
Conditions Use this field set to define conditions. Specify each condition as a separate row. Click the add icon to add a new row.
Conditions

String/Expression

Required. Specify the condition for the WHERE clause.

Note: The values in this field forms an AND clause in the SOQL WHERE statement. Each entry in the Conditions row can be an expression to be evaluated with the values from the input view. The Snap receives a stream of document data, where each document is formatted into an AND clause and all AND clauses are ORed together to form an entire WHERE statement. If the size of SOQL statement exceeds 10,000 characters, the Snap sends the SOQL query request, retrieves the resulting records which are sent to the output view, and restarts forming a new WHERE statement.

Example: "Name = '" + $Name + "'"

The above example is an expression which can be evaluated to "Name = 'O\'Connor'", if $Name is a JSON path to a value "O'Connor" in the input document data. The value of the Name field is a string type which must be enclosed by a pair of single quotes. If there is any single quote in the value, like the above example, it is escaped with a backslash by the Snap automatically. Otherwise, Salesforce.com will reject the SOQL request.

Note: Using quotes in the WHERE clause
  • Do not use quotes for field names in the WHERE clause. Using quotes results in an error.
  • Use only single quotes for values in the WHERE clause as using double quotes results in an error.
  • The above rules do not apply when you are using SnapLogic expressions, you can use quotes for the field names and values as applicable.

Default value: N/A

Example: "Name = '" + $Name + "'"
Correlation ID

String/Expression/ Suggestion

Specify an ID field name which the Snap uses to correlate input document to the output record when you want to pass through input data to the output view. Alternatively, click the Suggestion icon to fetch a list of IDs and select an ID.

Note:
  • The value for this field can be an expression that will be evaluated against the values configured in the Pipeline parameters only.
  • The value of this field must be unique throughout the entire records in the selected object type, so that it identifies a specific record in an SObject type. External ID field names fit into this category. This field may be left empty if users do not want to pass through input document to the output view.

Default value: N/A

Example: Id
Single Lookup Request

Checkbox

Select this checkbox to enable the Snap to send one lookup request for each input document. In Ultra mode, ensure that you select this checkbox to process one document at a time.

Default value: Deselected
Polling Interval

Integer/Expression

Required. Specify the polling interval in seconds for the Bulk API query execution. At each polling interval, the Snap checks the status of the Bulk API query batch processing.

Maximum value: 60

This field can be an expression evaluated against the values configured in Pipeline parameters only.

Default value: 5

Example: 5
Polling Timeout

Integer/Expression

Required. Specify the polling timeout in seconds for the Bulk API read batch execution. If the timeout occurs while waiting for the read batch execution to complete, the Snap throws a SnapExecutionException.

Note: This field can be an expression evaluated against the values configured in Pipeline parameters only.

Default value: 3000

Example: 300
Process Date/Time

Checkbox

All date/time fields from Salesforce.com are retrieved as string type. If this property is unchecked, the Snap sends these fields without any conversion.

If checked, the Snap converts date/time fields to corresponding date/time types by accessing the metadata of the given SObject. Salesforce datetime is converted to Joda DateTime, Salesforce date to Joda LocalDate and Salesforce time to Joda LocalTime.

Default value: Deselected
Include Deleted Records

Checkbox

Select this checkbox to include deleted records in the query result. This feature is supported in REST API version 29.0 or later and Bulk API version 39.0 or later.

Default value: Deselected
Pass-through on No Lookup Match

Checkbox

Select this checkbox to allow the input document to pass through to the output view when there is no lookup matching an input document. Else, the input document is written to the error view as an error condition.

Default value: Deselected
Match Data Type

Checkbox

Select this checkbox to match the data types of the Bulk API results with the data types in the REST API. This property applies if the content type is not JSON in Bulk API. In Bulk API, Salesforce.com returns all values as strings if Bulk content type is XML or Batch size is for PK Chunking. If this property is checked, the Snap attempts to convert strings values to the corresponding data types if the original data type is one of boolean, integer, double, currency, and percent.

This property is ignored in REST API or with JSON Bulk content type. In Bulk API (not with JSON Bulk content type), Salesforce.com does not return any value for null. Therefore, if the value is null, the key-value entry is not present in the output document, which is different from the REST API result.

Default value: Deselected
Number Of Retries

String/Expression

Specify the maximum number of retry attempts in case of connection failures (401/403 and 500 errors).

Minimum value: 0

Default value: 1

Example: 3
Retry Interval (seconds)

String/Expression

Specify the minimum number of seconds for which the Snap must wait before attempting recovery from a network failure.

Minimum value: 0

Default value: 1

Example: 3
Snap execution

Dropdown list
Choose one of the three modes in which the Snap executes. Available options are:
  • Validate & Execute. Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime.
  • Execute only. Performs full execution of the Snap during pipeline execution without generating preview data.
  • Disabled. Disables the Snap and all Snaps that are downstream from it.
