Insert Records into Salesforce Object

Scenario

I want to insert records into the Salesforce object through SnapLogic.

Requirements

Snaps Used

For this scenario, the following Snaps are used:

File ReadJSON ParserMapperSalesforce Create(Optional) JSON Formatter(Optional) File Writer

Other Requirements

A Salesforce account configured in SnapLogic Manager. See Accounts for more information on configuring an account.

Configuration

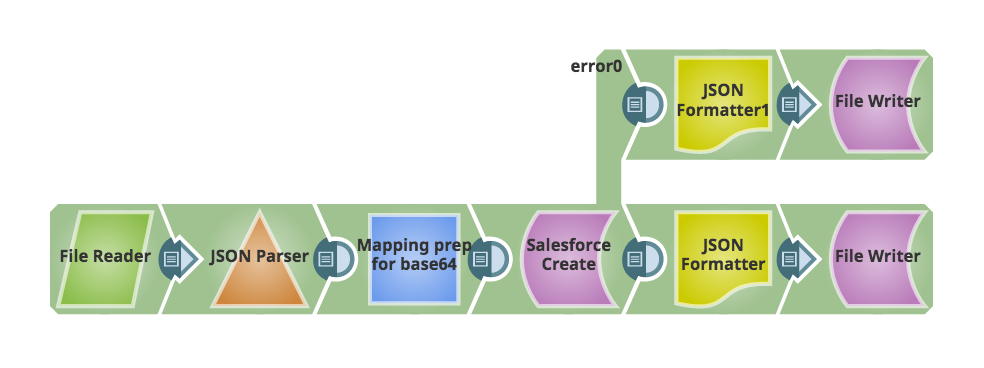

This simplified pipeline reads a file from the SnapLogic Database, creates a base-64 encoded ASCII string of the file and attaches it using the Salesforce Create Snap.


Add a File Reader Snap to read the file you want to attach. In this case, the file we are using is a JSON file with the following format:

[ { "nodes": {}, "org": "org_name", "SnapPacks": [...], "Subscriptions": null, "SF_ID": "" }, ... ]

where SF_ID corresponds to the Salesforce ID associated with a customer.

A JSON Parser is added to parse the JSON for use within SnapLogic.Add a Mapper Snap to base-64 encode the file and supply required fields to Salesforce. Configure the following Expression/Target path pairs:
  • Expression: (with expression toggle on) Base64.encode(JSON.stringify($)) Target path: $Body This encodes the file.
  • Expression: (with expression toggle on) $SF_ID Target path: $ParentID This identifies the Salesforce ID where to attach the file.
  • Expression: (with expression toggle on) $org + "_Integrations" Target path: $Name The provides the name to the file. An expression was used to generate the name based on the $org value supplied.
  • Expression: (with expression toggle off) application/json Target path: $ContentType
Add a Salesforce Create.
  • Verify that the correct Service version is configured.
  • Set the Object type to Attachment.
  • Set Salesforce API to REST API.
  • Set the error view to route error data to error view.

The pipeline could end here. In this example, we added a JSON Formatter and File Writer to both the output and error views to capture what is written out and save it to a file for troubleshooting purposes.
