Insert Record Into a Table Using a Stored Procedure

This example pipeline demonstrates how to create a stored procedure and call the stored procedure to insert a record in an existing table. This pipeline runs an SQL query containing a JOIN command to collate data between two PostgreSQL tables.


PostgreSQL Execute Example Pipeline

Download this pipeline
  1. Configure the PostgreSQL-Execute Snap with a call statement to trigger the stored procedure by passing values for GenreId and Name in the Genre table.

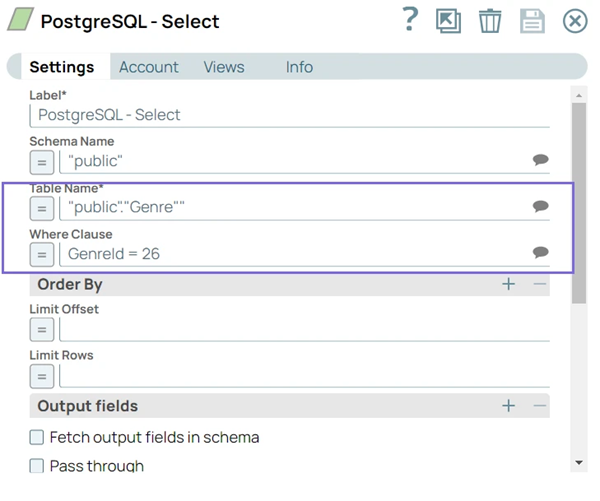

  2. Configure the Table Name and GenreId in the PostgreSQL Select Snap as follows to fetch the inserted record to verify the record has been inserted.
    postgresql-select-configuration

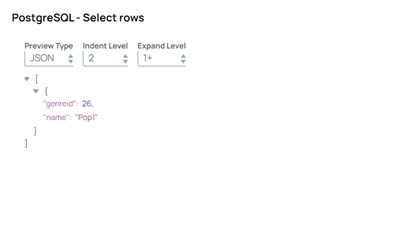

  3. On validation, the PostgreSQL-Select Snap fetches the previously inserted record.

    postgresql-select-output
