Install SnapCode

Prerequisites

Install these tools on your machine before you install SnapCode:

Set your SnapLogic credentials

SnapCode supports the following sign-in methods. If you set a password and also sign in through the browser, the password takes priority. Therefore, it is recommended to use any one of them, not both:

• Username and password: Set four environment variables before starting Claude Code.
• Browser sign-in (SSO): Set one environment variable, then sign in from inside Claude Code.

Username and password

Set the following variables in your shell environment:

macOS / Linux

Add these lines to your shell profile (~/.zshrc on macOS, or ~/.bashrc on most Linux) so they persist across terminals:

export SNAPLOGIC_API_USER='[email protected]'
export SNAPLOGIC_API_PASS='your-password'
export SNAPLOGIC_BASE_URL='https://elastic.snaplogic.com'
export SNAPLOGIC_ORG_NAME='your-org-name'

After saving, run source ~/.zshrc (or open a new terminal) to load the values. Restart Claude Code or your editor if it was already open.

Windows (PowerShell)

Run these commands to set the variables at the user level so they persist across new terminals:

[Environment]::SetEnvironmentVariable('SNAPLOGIC_API_USER', '[email protected]', 'User')
[Environment]::SetEnvironmentVariable('SNAPLOGIC_API_PASS', 'your-password', 'User')
[Environment]::SetEnvironmentVariable('SNAPLOGIC_BASE_URL', 'https://elastic.snaplogic.com', 'User')
[Environment]::SetEnvironmentVariable('SNAPLOGIC_ORG_NAME', 'your-org-name', 'User')

To confirm the new terminal can see the variable, run:

$env:SNAPLOGIC_BASE_URL

If it prints your SnapLogic environment URL, the variable is visible to the current terminal. If it returns an empty value, open another new terminal and try again.

Browser sign-in (SSO)

Set only SNAPLOGIC_BASE_URL. Use one of the values listed in the table above, written exactly as shown: lowercase, no trailing /. Leave SNAPLOGIC_API_USER and SNAPLOGIC_API_PASS unset. If you set them for username and password before, remove both, because sign-in refuses while either is set.

SNAPLOGIC_ORG_NAME is optional. Without it, you pick the organization when you sign in. Set it to skip the prompt.

macOS / Linux

Add this line to your shell profile (~/.zshrc or ~/.bashrc), then run source ~/.zshrc or open a new terminal:

export SNAPLOGIC_BASE_URL='https://elastic.snaplogic.com'

Windows (PowerShell)

Run this command, then open a new terminal:

[Environment]::SetEnvironmentVariable('SNAPLOGIC_BASE_URL', 'https://elastic.snaplogic.com', 'User')

Install the plugin

Run these two commands to install SnapCode:

claude plugin marketplace add Snap-Developers/SnapCode-CC-Plugin
claude plugin install snapcode@snapcode

First run

Start Claude Code from any directory where your credentials are set:

claude

Every session opens with a startup checklist: one line per component shows [ok] (ready) or [x] (needs attention) for the snaplogic CLI, slpy, sign-in, MCP server, and skills. For username and password users, every line shows [ok] on the first session. For SSO users, the first session shows [x] for Sign-in, slpy, and the MCP server. This behavior is expected.

If you signed in using browser sign-in (SSO), complete the following steps:

1. The checklist shows [x] for Sign-in and includes the sign-in command. Run it in the Claude Code session:

   ! snaplogic auth login

   You pick the organization when you sign in, or set SNAPLOGIC_ORG_NAME to skip the question. Approve Authorize SnapLogic CLI in the browser, then run /mcp to reconnect the SnapLogic MCP server.

2. Start a new Claude Code session. Every checklist line now shows [ok].

Perform the following checks to confirm that SnapCode is correctly installed:

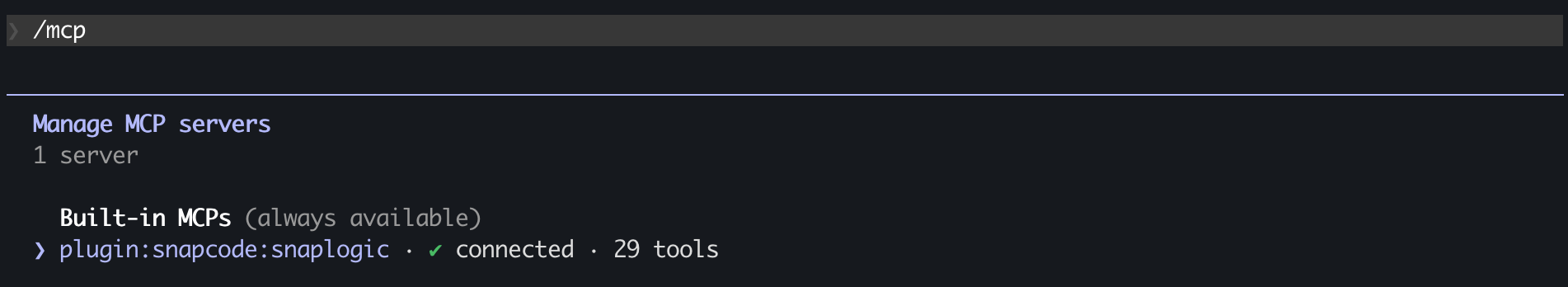

1. Type /mcp and press Enter. The plugin:snapcode:snaplogic server should be listed and show Connected.

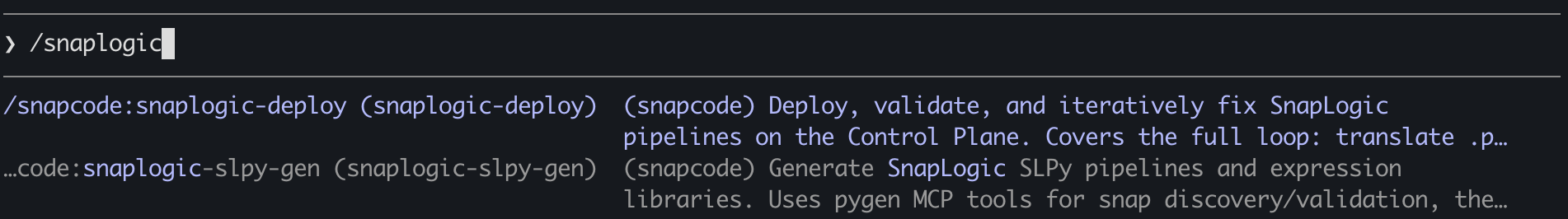

2. Type /snaplogic and press Enter. Confirm that snaplogic-slpy-gen, snaplogic-deploy, agent-pipelines, and mcp-server-pipelines are listed.

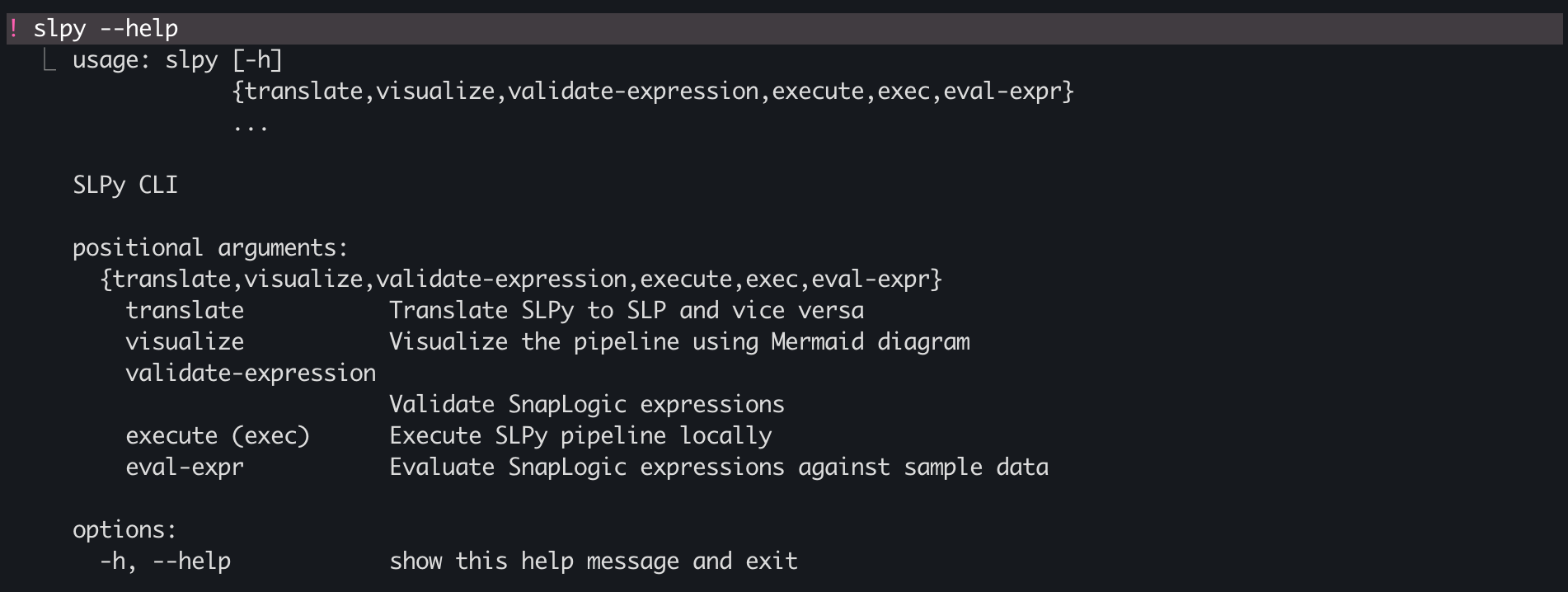

3. Run these commands directly in your Claude Code session to verify the slpy CLI is installed:

   ! which slpy
   ! slpy --help

   which slpy should point inside the SnapCode plugin cache, and slpy --help should print the CLI usage instead of command not found.

Generate a pipeline that reads from a csv and writes to json.

Update SnapCode

Auto-update is off by default. To enable it, use one of the following methods:

• Terminal: Run /plugin in the Claude Code terminal, navigate to Marketplaces > snapcode, and select Enable auto-update.
• Settings file: Add "autoUpdate": true under extraKnownMarketplaces.snapcode in ~/.claude/settings.json (macOS/Linux) or %USERPROFILE%\.claude\settings.json (Windows):

  {
    "extraKnownMarketplaces": {
      "snapcode": {
        "source": { "source": "github", "repo": "Snap-Developers/SnapCode-CC-Plugin" },
        "autoUpdate": true
      }
    }
  }

To update manually, run:

claude plugin marketplace update snapcode
claude plugin update snapcode@snapcode

Then run /reload-plugins in an open session, or restart Claude Code, to use the new version. Without this step, an open session keeps running the old version.

Uninstall SnapCode

If you signed in through the browser (SSO), sign out first from inside Claude Code while the plugin is still installed:

! snaplogic auth logout

Then run these two commands to remove the plugin:

claude plugin uninstall snapcode@snapcode
claude plugin marketplace remove snapcode

To also remove files written outside the plugin directory (safe to delete, regenerated on reinstall), run the following cleanup commands:

macOS / Linux:

rm -rf ~/.claude/plugins/cache/snapcode
rm -rf ~/.claude/plugins/data/snapcode-snapcode
rm -rf ~/.claude/snapcode

Windows (PowerShell):

Remove-Item -Recurse -Force "$env:USERPROFILE\.claude\plugins\cache\snapcode"
Remove-Item -Recurse -Force "$env:USERPROFILE\.claude\plugins\data\snapcode-snapcode"
Remove-Item -Recurse -Force "$env:USERPROFILE\.claude\snapcode"

Troubleshooting

Refer to Troubleshoot SnapCode for help with downloading the CLI, sign-in, slpy installation, and MCP connection issues.
