This Snap has at most one document input view.

If an input view is defined, then values from an incoming document can be used as input parameters to the stored procedure.

location: { "ADDRESS":"1520 8th Ave N", "CITY":"San Mateo", "STATE":"CA" }

location: { "address":"1520 8th Ave N", "city":"San Mateo", "state":"CA" }

• Mapper
• Oracle - Execute
• Oracle - Select

This Snap has exactly two document output views: Output Parameters and Result Set.

• Mapper
• Oracle - Insert
• Oracle - Update

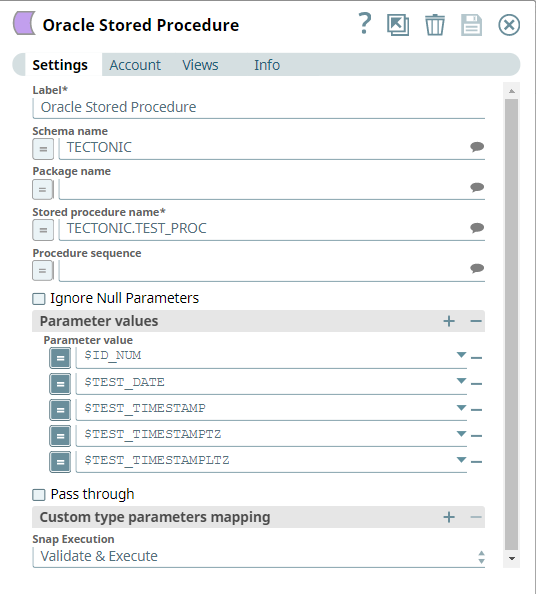

Label

Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline.

Default value: Oracle - Stored Procedure

Specify the database schema name. The suggestions in the Schema field are populated only when at least a single table exists in the schema. If no tables exist to use that schema, only SYS, SYSTEM, and XDB are populated.

You can pass the values as expressions using the pipeline parameters but cannot use values from the upstream Snap.

Default value: None

Example: SYS

The package name where the procedure resides. The property is suggestible and will return all packages of the DB. If a schema is defined, then it will only return the packages of that schema.

To invoke stored functions in a package, you need to upgrade the Oracle JDBC driver to 12.1.0.2 or later.

User-defined types are supported only with a specific version of the JDBC driver. Refer to the JDBC Driver setting in Oracle Thin Account.

Example: PACKAGE2

Required. Stored procedure to execute. The property is suggestible and will return all procedures of the DB. If a package is defined, then it will only return the procedures of that package. If a schema is defined and no package is defined, then it will return all procedures of that schema.

Default value: None

Example: addSeventeen

Required for overloaded procedures. Sequence number that indicates the procedure to be used for overloaded procedures. The property is optional and only to be used when the selected procedure is overloaded. The starting index is always 1. The property is suggestible and will return the available indexes of the overloaded procedure, if any. The procedure sequence instructions apply similarly to stored functions.

Example:

• A procedure sp1 exists in a package pkg1 as sp1 (arg1, arg2) and sp1 (arg1, arg2, arg3), then the sequence number defines which procedure is used. Sequence number 1 uses sp1 (arg1, arg2) and sequence number 2 uses sp1 (arg1, arg2, arg3).
• A function f1 exists in a package pkg1 as f1 (arg1, arg2) and f1 (arg1, arg2, arg3), then the sequence number defines which function is used. Sequence number 1 uses f1 (arg1, arg2) and sequence number 2 uses f1 (arg1, arg2, arg3).

Select this check box to enable the Snap to ignore the parameters evaluated as null. This applies to parameters with defined default values.

Default value: Not selected

Select the input parameter values for the stored procedure. If you define parameter values, you must do so in the same order as they appear in the stored procedure definition.

Quotation marks should not be used when setting input parameters unless they are part of the input value itself, since they are treated as escaped plain characters. For example, if the desired input value is TEST_VALUE1, the input parameter should be set as TEST_VALUE1; if you set it as "TEST_VALUE1", it will be recognized as \"TEST_VALUE1\".

If you do not provide any parameters in the Snap, you can still view the required input parameters in the Target Schema of the upstream Mapper Snap. The parameters are dynamically populated based on the column keys of the stored procedure; you can map the parameters and pass them as an input to the Stored Procedure Snap.

Default value: None

Example: There is a stored procedure named createGreeting with two input parameters: p1 and p2 of type VARCHAR2. Then you need to provide two string values. The first value goes to p1 and the second value goes to p2.

If selected, the input document will be passed through to the output views under the key 'original'. The document will be passed to the Parameter output view, and it will also be passed to the Result Set output view if there is output sent from this view.

This property applies only to the Execute Snaps with SELECT statement or the Select Snaps.

Default value: Not selected

Snap execution

Default value: Validate & execute

Example: Execute only
