PostgreSQL Dynamic Account

Use this account type to connect PostgreSQL Snaps with data sources that use PostgreSQL accounts with secrets management support.

Overview

Use this account type to connect PostgreSQL Snaps with data sources that use PostgreSQL accounts.

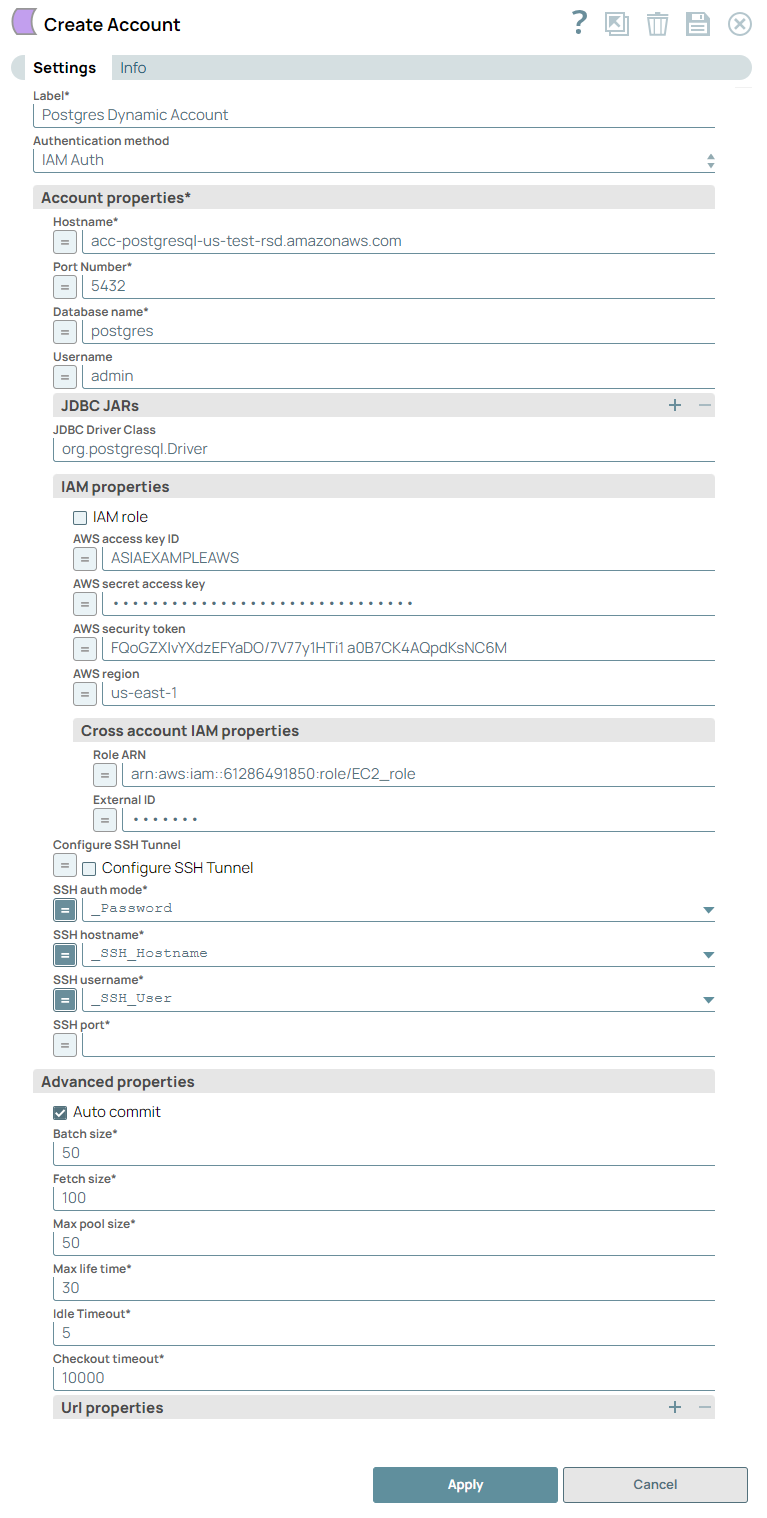

PostgreSQL Dynamic Account configuration dialog

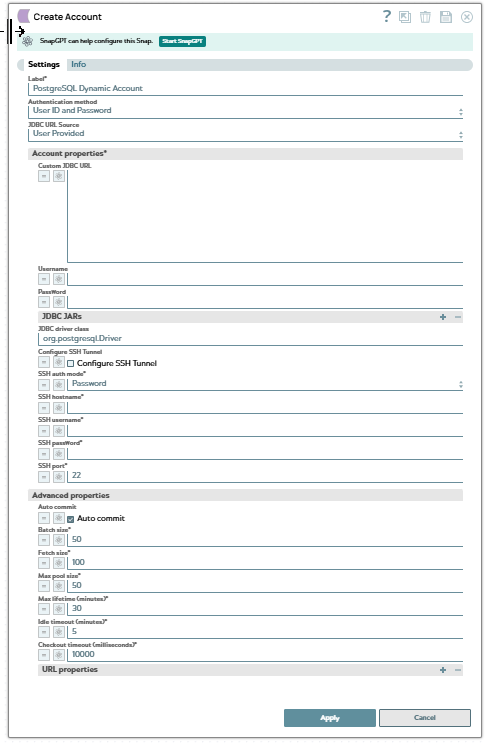

PostgreSQL Dynamic Account configuration dialog

Note: Expression-enabled authentication fields, such as Username, Password, and Client Secret, support Secrets Management, a SnapLogic add-on that allows you to store endpoint credentials in a third-party secrets manager, such as AWS Secrets Manager, Azure Key Vault, or HashiCorp Vault. During validation and execution, pipelines obtain the credentials directly from the secrets manager. Learn more: Configure Accounts to use secrets.

This account type supports integration with secrets management systems, enabling you to securely store and retrieve sensitive credentials such as passwords and access keys. Dynamic accounts can reference secrets stored in external vaults, providing enhanced security and centralized credential management.

You can also connect to a PostgreSQL high-availability (HA) cluster. Select User Provided for the JDBC URL Source and specify a multi-host JDBC URL in the Custom JDBC URL field. The JDBC driver then fails over to the next available host when the primary host is unavailable, so your pipelines continue to run. Accounts that use Snap Generated JDBC URLs continue to work without any changes.

Account settings

Note: Learn about the common controls in the Snap settings dialog.


Field/Field set	Type	Description
Label `String`	Required. The name for the account. We recommend that you update the account name if there is more than one account in your project. Default value: N/A Example: `PostgreSQL_Account_Type`
Authentication method `Dropdown list`	Select the authentication method to create your Postgres Account. The available options are: User ID and password IAM Auth Default value: User ID and password Example: `IAM Auth`
JDBC URL Source `Dropdown list`	Select the source of the JDBC URL that the account uses to connect to your PostgreSQL instance. The available options are: Snap Generated: SnapLogic builds the JDBC URL from the details that you provide in the account. If you select this option, the Hostname, Port number, and Database name fields appear. User Provided: Enables you to specify your own JDBC URL, including a multi-host URL for a high-availability cluster. If you select this option, the Custom JDBC URL field appears. Existing accounts continue to use Snap Generated, so single-host accounts that you created before this field was introduced work without any changes. Default value: Snap Generated Example: `User Provided`
Account properties	Required. The account information required to create a connection to the PostgreSQL database.
Hostname `String/Expression`	Appears when you select Snap Generated for the JDBC URL Source. Required. The PostgreSQL server's address. Default value: N/A Example: `acc-postgresql-us-test-rsd.amazonaws.com`
Port number `Integer/Expression`	Appears when you select Snap Generated for the JDBC URL Source. Required. The port number to use to make the server connection. Default value: 5432 Example: `5432`
Database name `String/Expression`	Appears when you select Snap Generated for the JDBC URL Source. Required. The name of the database to which to connect. Default value: N/A Example: `TestDB`
Username `String/Expression`	The username that is allowed to connect to the database. This username will be used as the default username when retrieving connections. The username must be valid in order to set up the data source. Note: The Username is mandatory for both the authentication types: User ID and password: Example, snapuser IAM Auth: Example, iamuser Default value: N/A Example: `snapuser`
Password `String/Expression`	Required. The password associated with the username listed above. The password must be valid in order to set up the data source. Default value: N/A
Custom JDBC URL `String/Expression`	Appears when you select User Provided for the JDBC URL Source. Required. Specify the JDBC URL that you want to use to connect to your PostgreSQL instance. Use this field when you want to use a complex JDBC URL that involves multiple hosts and advanced connection options. To connect to a PostgreSQL high-availability cluster, specify the hosts as a comma-separated list and add the PostgreSQL HA parameters that you want to apply. For example: `jdbc:postgresql://primary.example.com:5432,standby.example.com:5432/TestDB?targetServerType=primary` With a multi-host URL, the JDBC driver tries each host in the order that you list them and connects to the first host that satisfies the `targetServerType` value. If the primary host becomes unavailable, the driver fails over to the next suitable host in the list, so your pipelines continue to run. The `targetServerType` parameter accepts the values that the PostgreSQL JDBC driver supports, such as `any`, `primary`, `secondary`, `preferSecondary`, and `preferPrimary`. Use `primary` for read-write workloads and `preferSecondary` to route read-only workloads to a standby when one is available. Note: Use the `jdbc:postgresql:` scheme and ensure that the URL is valid for the driver that the account loads. The account displays a validation error if the URL format is invalid. Learn more: PostgreSQL JDBC driver FAQ. Default value: N/A Example: `jdbc:postgresql://host1.example.com:5432,host2.example.com:5432/TestDB?targetServerType=primary`
JDBC Jars	The list of JDBC jar files that must be loaded for the account to work.
JDBC driver `String`	The JDBC driver that must be loaded for the account to work. By default, this field has one row populated. Click the + icon to add more rows. Default value: Default Driver postgres 42.7.2.jar Example: `postgresql-9.3-1104.jdbc4.jar`
JDBC driver class `String`	The JDBC driver class that you want to use with the account. Default value: org.postgresql.Driver
IAM properties	Appears when you select the IAM Auth for the Authentication method. Configure the IAM-related properties for IAM authentication.
IAM role `Checkbox`	Appears when you select the IAM Auth for the Authentication method. Select this checkbox to use the IAM role stored in the Groundplex EC2 instance. Note: The IAM role is valid only in Groundplex nodes hosted in the EC2 environment. When you choose IAM Auth as the Authentication method, you must provide the username. When you select the IAM role checkbox, the AWS access key, AWS secret key, and AWS security token fields are hidden. Default value: Deselected
AWS access key ID `String/Expression`	Appears when you select the IAM Auth for the Authentication method and deselect IAM role checkbox. Specify the AWS access key ID associated with your AWS account. Default value: N/A Example: `ASIAEXAMPLE`
AWS secret access key `String/Expression`	Appears when you select the IAM Auth for the Authentication method and deselect IAM role checkbox. Specify the Secret access key associated with your AWS authentication. Default value: N/A Example: `wJalrXUtnFEMI/K7ENG/bPxRfiCEKEY`
AWS security token `String/Expression`	Appears when you select the IAM Auth for the Authentication method and deselect IAM role checkbox. Specify the Security Token used to authenticate your requests to AWS services. Only global Security Token Service (STS) regions are supported. Default value: N/A Example: `FQoGZXIvYXdzEFYaDO/7V77y1HTi1a0B7CK4AQpdKsNC6M/4X8e0fH4QE/...`
AWS region `String/Expression`	Appears when you select the IAM Auth for the Authentication method and select IAM role checkbox. Specify the AWS region where the application is running. Default value: N/A Example: `us-east-1`
Cross account IAM properties	Use this field set to configure the cross-account access.
Role ARN `String/Expression`	Specify the Amazon Resource Name (ARN) of the role to assume. Default value: N/A Example: `arn:aws:iam::61286491850:role/EC2_role`
External ID `String/Expression`	Specify an External ID that might be required by the role to assume. Default value: N/A Example: `7542158`
Configure SSH Tunnel `Checkbox/Expression`	Select this checkbox if Snap needs to create an SSH tunnel to connect the Snaplex to the PostgreSQL server. After the operation is completed, the tunnel is closed. Note: This Account supports SSH-2 RSA / Ed25519 keys If you select true, you must provide the configuration details of the SSH tunnel. Default value: Deselected
SSH auth mode `Dropdown list/Expression`	Select an option to specify the mode for authenticating the user on the SSH tunnel. This option is available only if the Configure SSH Tunnel checkbox is selected. The available options are: Password: Select this option if you want to use the configured SSH Hostname, SSH Username, and the SSH Password properties directly. KeyFile (Private Key File): Select this option if you want to upload a file for the Key. KeyFile (Private Key String): Select this option if you want to copy and paste the private key contents into the account. Note: The PostgreSQL Account supports all popular Public-key cryptography algorithms. Note: Do not enable expressions in this field. If you enable an expression, the other fields based on it might not be available. Default value: Password Example: `KeyFile`
SSH hostname `String/Expression`	Specify either the IP address or the domain name of the SSH server to which you want to connect. Default value: None Example: `SSH_Hostname`
SSH username `String/Expression`	Specify the SSH username for connecting to the SSH tunnel. Default value: None Example: `SSH_User`
SSH password `String/Expression`	Password for the specified SSH username for connecting to the SSH tunnel. This field is required if the SSH Auth Mode is Password. Default value: None
Private key file URL `String/Expression`	Specify the location of the keystore file. This field is required if the SSH Auth Mode is KeyFile (Private Key File). The file can be in SLDB, on the host machine that is hosting the JCC, or at any other remote location. For a local file, click to select the appropriate file using the file browser. You can also upload the file using any protocol such as https, ftp, sldb, and sftp. Default value: None Example: `PK_File`
Private key `String/Expression`	Specify the private key for authentication. This field is required if the SSH Auth Mode is KeyFile (Private Key String). Default value: None Example: `_PrivateKey`
Private key passphrase `String/Expression`	Specify the password is to be used to access the Key File URL or to decrypt the Private Key. If no value is provided, the keystore password is used. This field is required if the SSH Auth Mode is KeyFile. Default value: None
SSH port `Integer/Expression`	Specify the SSH port to connect to the PostgreSQL Server. Note: Ensure that there are no port conflicts. Default value: None Example: `22222`
Advanced properties	Advanced properties associated with the PostgreSQL account type.
Auto commit `Checkbox/Expression`	Select this check box to commit batches as soon as they are executed. If the Snap fails, only the batch being executed at that moment is rolled back. Deselect the check box to commit Snap execution output only after all the batches are executed. If the Snap fails, the entire transaction is rolled back unless the Snap finds invalid input data before it sends the insert request to the server and routes the error documents to the Error view. Default value: Selected
Batch size `Integer/Expression`	Required. The number of statements to execute at a time. Note: Select queries are not batched. Warning: Using a large batch size could use up the JDBC placeholder limit of 2100. Default value: 50 Example: `20`
Fetch size `Integer/Expression`	Required. The number of rows that you want the Snap to fetch at a time when executing a query. Warning: Large values could cause the server to run out of memory. Default value: 100 Example: 50
Min pool size `Integer`	Required. The minimum number of connections that a pool should maintain at a time. Default value: 3 Example: 5
Max pool size `Integer/Expression`	Required. The maximum number of connections that a pool should maintain at a time. Default value: 50 Example: 30
Max lifetime (minutes) `Integer/Expression`	Required. The maximum lifetime (in minutes) of a connection in the pool. Ensure that the value you enter is less than any database or infrastructure-imposed connection time limit. A value of 0 indicates an infinite lifetime, subject to the Idle Timeout value. Note: An in-use connection is never retired. Connections are removed only after they are closed. Default value: 30 Example: `50`
Idle timeout (minutes) `Integer/Expression`	Required. The maximum amount of time (in minutes) for which a connection is allowed to sit idle in the pool. A value of 0 indicates that idle connections are never removed from the pool. Default value: 5 Example: `10`
Checkout timeout (milliseconds) `Integer/Expression`	Required. The number of milliseconds for which the Snap waits for a connection to be available when the pool is exhausted. A value of 0 indicates an infinite timeout. The Snap throws an exception after the wait time expires. Default value: 10000 Example: `8000`
URL properties	Use this fieldset to configure the URL that connects to your account.
URL property name `String/Expression`	The name of the URL property. Default value: N/A Example: `socketTimeout`
URL property value `String/Expression`	The value of the URL property. Default value: N/A Example: `10`

Troubleshooting


Error	Reason	Resolution
JDBC driver hangs in case of a connection error	The default socketTime value in PostgreSQL accounts is 0. This causes the JDBC driver to hang if there are any connection errors.	To overcome this, configure the URL properties in Account settings with the following parameter and value: URL property name: `socketTimeout` URL property value: `10` A SocketTimeout value of 10 ensures that the JDBC driver returns no connections after 10 seconds.
Timeout issue	A connection failure does not suspend the running PostgreSQL Pipelines if the timeout value is lesser than the time to process the query.	To overcome this issue, set the URL property socketTimeout with a longer time period than that of the longest expected query. URL property name: `socketTimeout` URL property value: `<time in seconds>`
Account validation fails with an invalid JDBC URL error	The value in the Custom JDBC URL field is not a valid PostgreSQL JDBC URL. For example, the URL uses an unsupported scheme, omits the database name, or lists the hosts without separating them with commas.	Correct the URL so that it uses the `jdbc:postgresql:` scheme and lists each host as `host:port`, separated by commas, followed by the database name and any connection parameters: `jdbc:postgresql://host1.example.com:5432,host2.example.com:5432/TestDB?targetServerType=primary`
Pipeline connects to the wrong host in an HA cluster	The `targetServerType` parameter is missing from the multi-host JDBC URL, so the driver connects to the first host that accepts the connection regardless of its role.	Add `targetServerType` to the URL and set it to the role that your workload requires. Use `primary` for read-write workloads and `preferSecondary` to route read-only workloads to a standby.
SSL connection validation issue	When connecting to an SSL-enabled PostgreSQL account, the account fails in validation.	To overcome this, configure the URL properties in Account settings to establish an SSL connection with the following parameter and value: URL property name: `sslmode` URL property value: `require`

Auto-commit with Execute Snaps

For a DB Execute Snap, assume that a stream of documents enters the input view of the Snap and the SQL statement property has JSON paths in the WHERE clause. If the number of documents is large, the Snap executes in more than one batches rather than executing one per each document. Each batch would contain a certain number of WHERE clause values. If Auto commit is turned on, a failure would only roll back the records in the current batch. If Auto commit is turned off, the entire operation would be rolled back. For a single execute statement (with no input view), the setting has no practical effect.
