Finding a students score from the table

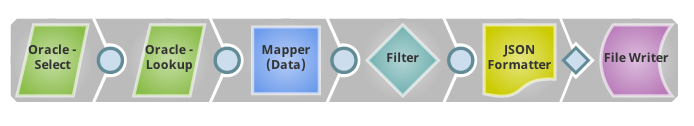

In this example, we have a table named STUDENT that stores students' scores. It has 3 columns: ID, NAME and SCORE. We will find all the student records that have same scores with Adam's with this pipeline:



Download this Pipeline

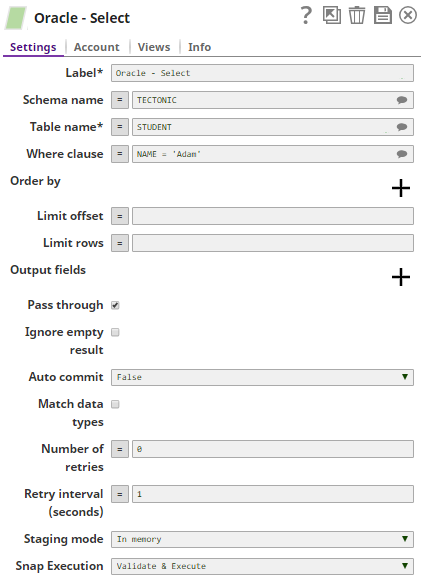

  1. The Oracle-Select Snap finds the row whose NAME is 'Adam', and pass the row's data to Oracle-Lookup Snap:

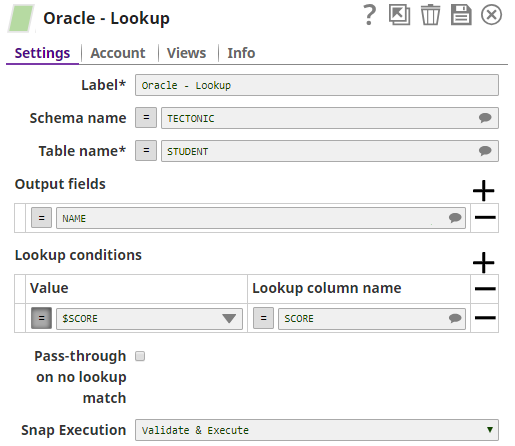

  2. Then the Oracle-Lookup Snap will lookup all the rows that has the same score as Adam's. We use $SCORE to retrieve data of SCORE Column passed from Oracle-Select Snap.


  3. This is the output of the pipeline, Bob has the same score as Adam's:


To reuse the example pipelines:
  1. Download and import the SLP file into your Environment.
  2. Configure Snap accounts.
  3. Provide Pipeline parameters, if any.
