Tc Meta Get Type Description

Optional.This Snap has at the most one document input view.

The required input of the snap is the object type and decision to subtypes and properties included.

• Mapper
• Copy

This Snap has exactly one document output view.

The output of the snap is the metadata of the Teamcenter datamodel type.

• Mapper
• Router

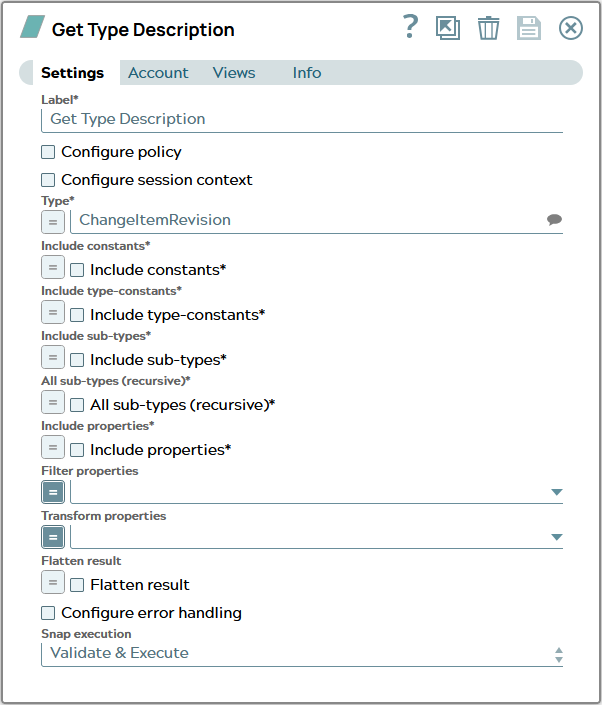

Default value: Tc Meta Get Type Description

Specify the type of the Teamcenter object LOV values shall be fetched for in the Teamcenter system.

In JSON document the content for path can look like this:

[
  {
    "type": "ChangeItemRevision"
  }
]

Name of the JSON property has to be the technical name of a valid type in Teamcenter datamodel.

Default value: N/A

Example: ChangeItemRevision

Response shall include constants for given type.

In case expression is activated the default value is „false“ or „true“ dependent on checkbox Unselected or Selected state.

Default value: Unselected

Example: Unselected

Response shall include type-constants for given type.

In case expression is activated the default value is „false“ or „true“ dependent on checkbox Unselected or Selected state.

Default value: Unselected

Example: Unselected

Response shall include sub-types for given type.

In case expression is activated the default value is „false“ or „true“ dependent on checkbox Unselected or Selected state.

Default value: Unselected

Example: Unselected

Specify if sub-types shall be evaluated one level down or recursive over all levels.

Default value: Unselected

Example: Unselected

Response shall include properties for given type.

Default value: Unselected

Example: Unselected

optionally properties can be filtered by expression.

Default value: Unselected

Example: Unselected

optionally properties can be transformed by expression.

Default value: Unselected

Example: Unselected

will return one flat list rather than showing data grouped under their respective parents.

Default value: Unselected

Example: Unselected
