Azure Data Lake Gen 2 OAuth2 Account

Overview

Use this account type to connect Hadoop Snaps with data sources that use Azure Data Lake Storage Gen 2 OAuth2 accounts.

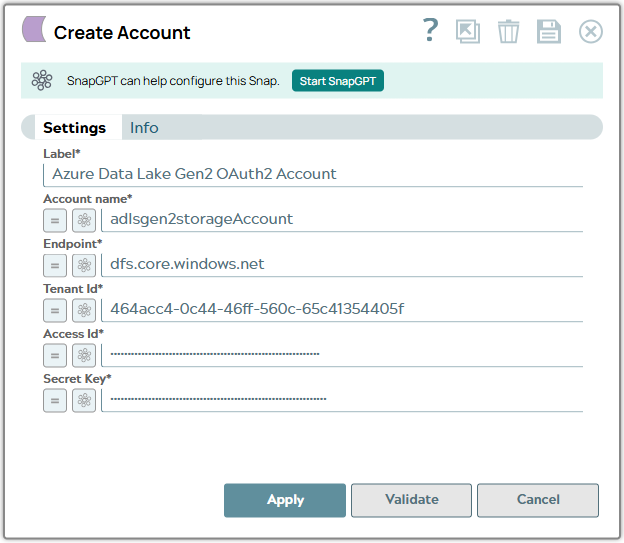

Azure Data Lake Gen 2 OAuth2 Account Settings

Account settings

Note: Learn about the common controls in the Snap settings dialog.
Field/Field set Description
Label

String

Required. Unique name for the account.

Default value: N/A

Example: ADLS Gen2 OAuth2 Account
Account name

String/Expression

Required. The name of the ADLS Gen 2 storage account that you created in the Azure portal.

Default Value: adlsgen2storageAccount

Example: adlsgen2oauth2test1
Endpoint

String/Expression

Required. The endpoint provided by Microsoft Azure.

Required. The protocols supported are HTTPS, ADL, and ADLS.

Default Value: dfs.core.windows.net

Example: dfs.core.windows.net
Tenant ID

String/Expression

Required. The Directory ID of the Azure Active Directory. You must retrieve this information from your Azure account. For information on creating a Tenant ID in Azure, see Quickstart: Create a new tenant in Azure Active Directory.

Default value: N/A

Example: 4464acc4-0c44-46ff-560c-65c41354405f
Access ID

String/Expression

Required. The Application ID of the application in the Azure Active Directory. You must retrieve this information from your Azure Active Directory Application. For information on working with access IDs, see How to: Use the portal to create an Azure AD application and service principal that can access resources.

Default value: N/A

Example: a3f1c9d2-7b4e-4c9a-9f12-8d3e5b7a6c21
Secret Key

String/Expression

Required. The authentication key for accessing the Azure Active Directory. You must retrieve this information from your Azure Active Directory Application. For information on secret keys, see How to: Use the portal to create an Azure AD application and service principal that can access resources.

Default value: N/A

Example: Qm9vQmFyMTIzIT9AZXhhbXBsZVNlY3JldA==

Troubleshooting

Error Message Reason Resolution
Failed to validate account: An error occurred while getting a new access token.

Bad Request

The Tenant ID, Access ID, or Secret Key details are incorrect.

Check the account information and try again
