Tc Find Object by Id

Optional.This Snap has at the most one document input view.

The required input of the snap is the Object type and ID attributes that needs to be fetched from Teamcenter.

• Mapper
• Copy

This Snap has exactly one document output view.

The output of the snap is the object found in Teamcenter. An error occurs in case more than one object was found for given input.

• Mapper
• JSON Splitter

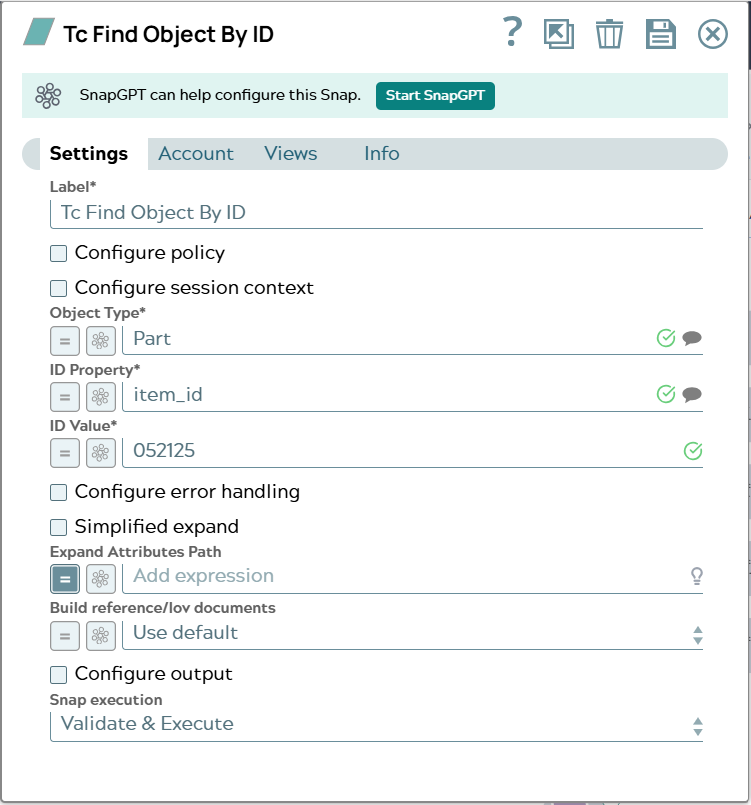

Default value: Tc Find Object by Id

Specify the type of the object to be found in Teamcenter.

In JSON document the content for path can look like this:

[
  {
    "object_type": "Part"
  }
]

Name of the JSON property has to be the technical name of a valid type in Teamcenter datamodel.

Default value: N/A

Example: Part

Specify the property of the object which is used to store ID.

Default value: N/A

Example: item_id

Specify the id of the object to be fetched from the Teamcenter software.

Default value: N/A

Example: 052125

Select this checkbox to make the Snap look for the name given in Expand Attributes Path in the input document (for example, $expand) or in the Pipeline parameters (for example, _expand), and use that content. Expand Attributes Path then changes to a String field with the default value $.expand. In Pipeline parameters, separate the attribute names with commas.

When deselected, configure Expand Attributes Path as a string or an expression.

Default status: Deselected

Specify the JSON path to the expand attributes in the input document. Expand attributes are the list of attributes that the Teamcenter response must contain. Each name must be the technical name of a valid property in the Teamcenter data model for the expected objects. For example:

"expandAttributes": [
  "item_id",
  "item_revision_id",
  "last_mod_date",
  "object_string",
  "items_tag.uom_tag"
]

Learn more: Configuring Expand Attributes.

Default value: N/A

Example: $.expandAttributes

Select how the Snap represents references and lists of values (LOVs) that Teamcenter returns. The Snap can return them as nested JSON objects instead of flattened IDs and internal values with additional _DISPLAY attributes:

• References become {"_id": …, "UID": …, "_display": …} or null, including inside reference arrays.
• LOVs become {"_value": …, "_display": …} or null, including inside LOV arrays.

The available options are:

• Yes. The referenced object or LOV is a separate JSON object in the result. For example:

  "owning_user": {
    "_id": "TC*User*null***AgKAUUYTZLWoZA",
    "object_string": "user111 (user111)",
    "UID": "AgKAUUYTZLWoZA"
  }

• No. The referenced object or LOV is flattened into attributes on the current result object, and synthetic attributes such as those ending in _DISPLAY are added. For example:

  "owning_user": "TC*User*null***AgKAUUYTZLWoZA",
  "owning_user_DISPLAY": "user111 (user111)"

• Use Default. The Snap uses the default configured for the Snap Pack, which is Yes or No depending on the adapter.tc.snaplogic.expandReferencesAndLovs setting in the teamcenter_snappack.properties file.

Default value: Use Default

Example: Yes
