Open Table Iceberg

Overview

The Open Table Iceberg - Insert Snap inserts data from upstream documents into an Iceberg table. You can configure the storage format, compression codec, and partition columns. If the target table does not exist, the Snap can create it automatically by inferring the schema from the input documents or from schema metadata supplied via a second input view.

The Snap emits a status document per inserted row to the output view and routes errors to the error view without halting pipeline execution.

This is a Write-type Snap.
Does not support Ultra Tasks

Prerequisites

A configured Open Table Iceberg Account with write access to the target catalog, schema, and S3 bucket.
The target schema (namespace) must exist in the Iceberg catalog. The table may or may not exist depending on whether Create Table If Not Present is selected.

Supported Accounts

Open Table Iceberg Account

Snap views


Type	Description	Examples of upstream and downstream Snaps
Input	The primary input view (first) receives the data documents to insert. Each document corresponds to one row in the target table. An optional second input view receives schema definition documents. These can be column descriptor documents from the second output view of the Open Table Iceberg - Select Snap (`columnName`, `dataType`, `nullable`), or flat maps of the form `{"column": "TYPE"}`. Schema documents are processed before data documents.	Open Table Iceberg - Select Mapper
Output	Emits one status document per inserted row: `{"status": 1, "message": "success"}`.	Mapper Copy
Learn more about Error handling.

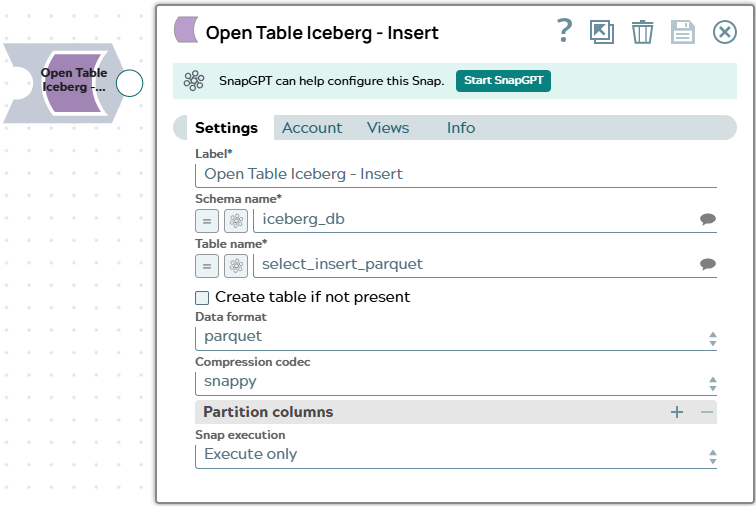

Snap settings

Note: Learn about the common controls in the Snap settings dialog.


Field/Field set	Description
Label `String`	Required. Specify a unique name for the Snap. Modify this to be more appropriate, especially if more than one of the same Snaps is in the pipeline. Default value: `Open Table Iceberg - Insert` Example: `Iceberg Write Orders`
Schema Name* `String/Expression/ Suggestion`	Specify the schema (namespace) that contains the target table. Click the Suggest icon to select from available namespaces in the catalog. Default value: None Example: `db`
Table Name* `String/Expression/ Suggestion`	Specify the name of the Iceberg table to insert data into. Click the Suggest icon to select from available tables in the selected schema. Default value: None Example: `orders`
Create Table If Not Present `Checkbox`	Select this checkbox to create the target table automatically if it does not exist. The Snap infers the table schema from the input documents or from the schema definition documents supplied via the second input view. Default value: `Deselected` Example: `Selected`
Data Format `Dropdown list`	Select the file format used to store data in the Iceberg table. Options: `parquet` — recommended for most analytical workloads. `orc` — better compression for wide tables. `avro` — better support for schema evolution. Default value: `parquet` Example: `orc`
Compression Codec (Parquet) `Dropdown list`	Appears when Data Format is set to `parquet`. Select the compression algorithm for Parquet files. Options: `none`, `snappy`, `gzip`, `zstd`, `lz4`. Default value: `snappy` Example: `gzip`
Compression Codec (Avro) `Dropdown list`	Appears when Data Format is set to `avro`. Select the compression algorithm for Avro files. Options: `none`, `snappy`, `gzip`, `zstd`. Default value: `snappy` Example: `zstd`
Compression Codec (ORC) `Dropdown list`	Appears when Data Format is set to `orc`. Select the compression algorithm for ORC files. Options: `none`, `snappy`, `zstd`, `lz4`. Default value: `snappy` Example: `zstd`
Partition Columns — Use this field set to define the partition strategy for the target table. Click to add a partition column. Each row specifies one partition column and its transform. Applies only when Create Table If Not Present is selected and the table is being created.
Column Name `String/Expression`	Specify the name of the column to partition by. Default value: None Example: `order_date`
Transform `Dropdown list`	Select the Iceberg partition transform to apply to the column: `identity` — partition by the exact column value. `year` — extract the year from a DATE or TIMESTAMP column. `month` — extract the month from a DATE or TIMESTAMP column. `day` — extract the day from a DATE or TIMESTAMP column. `hour` — extract the hour from a TIMESTAMP column. `bucket` — hash-partition into 16 buckets. The `year`, `month`, `day`, and `hour` transforms require a DATE or TIMESTAMP column. Default value: `identity` Example: `year`
Snap execution `Dropdown list`	Choose one of the three modes in which the Snap executes. Available options are: `Validate & Execute`: Performs limited execution of the Snap and generates a data preview during pipeline validation. Subsequently, performs full execution of the Snap (unlimited records) during pipeline runtime. `Execute only`: Performs full execution of the Snap during pipeline execution without generating preview data. `Disabled`: Disables the Snap and all Snaps that are downstream from it. Default value: `Execute only` Example: `Validate & Execute`

Troubleshooting


Error	Reason	Resolution
`Failed to create table`	The table does not exist and schema inference failed, or the Snap does not have write permissions on the schema.	Ensure that Create Table If Not Present is selected and that either the input documents contain data or a schema document is supplied via the second input view. Confirm that the account has CREATE TABLE permissions.
`Failed to insert data`	A data type mismatch occurred between the input document values and the target table column types.	Verify that the input document field types match the target column types. Consider using the second input view to supply an explicit schema from the Open Table Iceberg - Select Snap.
`Unsupported partition transform`	A year, month, day, or hour transform was applied to a column that is not of DATE or TIMESTAMP type.	Use the identity or bucket transform for non-date columns, or change the column type to DATE or TIMESTAMP.
